Errors in Survey123 Connect xlsform with name and labels

[Ehei_Dogen]

Howdy all,

I started a new survey in Survey123 Connect, using the Advanced template version 3.18 released 2023-06-13. I'm getting errors I haven't seen before regarding the name and label fields.

I use the note type for spacing in groups and for headers on lists. It's my understanding that the note type doesn't need a name set. Also, while the label column for a row can't be blank, something like <b></b> can be used. This works in my previous surveys.

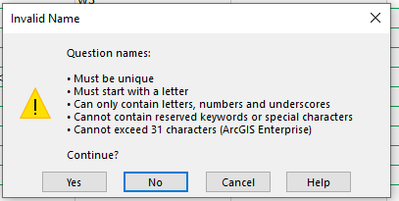

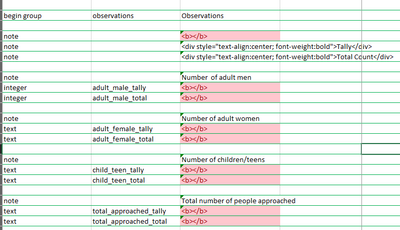

One error I'm getting is that all the label columns with <b></b> (except the first two, ??) have red fill. I've seen this with duplicate names, but not labels. The other error I'm getting is Invalid Name, but the strange part here is that this only appears when I edit one of the red label fields. I can click Yes to continue despite this error, and the survey saves and seems ok in Connect. I've also tried changing the words 'Count', 'Total' and 'total', but this doesn't change anything.

Any ideas what's going on? Thanks!

[ZacharySutherby]

Hello @Ehei_Dogen,

I'm not seeing any issues with the XLSForm in the screen capture. It's very strange the message is being returned in the Label column. One thing to suggest would be to run the XLSForm upgrade tool in Connect to "refresh" the XLSForm with the latest version.

[Ehei_Dogen · Accepted solution]

Thanks @ZacharySutherby, I'll give that a try. Hopefully not a bug in the new release. 🤞

[Ehei_Dogen]

Thanks again @ZacharySutherby, that worked. Now all the appearance, required and read-only columns have the little triangle in the top left cell indicating an Excel error, missing or invalid value. Oh well, I'll ignore those. Using MS Office 365, if it matters.

[ZacharySutherby]

Hello @Ehei_Dogen,

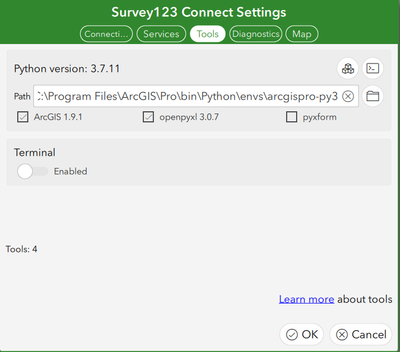

In Connect under Settings -> Tools what is the version of the openpyxl package in your environment?

[Ehei_Dogen]

Hi @ZacharySutherby ,

[ZacharySutherby]

Hello @Ehei_Dogen,

Thank you for confirming! There was an openpyxl bug at that version (and prior) that is causing the data validation issue you are seeing. If you update your ArcGIS Pro install to the latest version you will be on a newer version of openpyxl where the issue is has been resolved. Alternatively you can clone your default ArcGIS Pro Python environment and update that individual package in the cloned environment. In the latter scenario you would need to update the Python path in the Connect Tools settings to the cloned environment.
