How to 'eyeball' numerous measurments in a data frame with a floating scalebar or grid

339
2
Jump to solution
06-08-2021 12:16 PM
Labels (2)
Mapyes
by
New Contributor II

Hi!

I have hundreds of aerial images I need to check against satellite imagery for proper location placement. I've been using the measure tool to see how far off each image is but this is very cumbersome. Is there a way to add a floating scale bar or grid in the data frame - NOT a layout? Ideally I'd be able to add lines with a custom measurement that covers all cardinal directions that scales with the image & hovers in the same place regardless of where I pan to. A grid would also be useful but it seems like these are only available in layouts. I just need a rough estimate that I can eyeball the level of accuracy & then move on to the next image. Any suggestions?

Thanks!

0 Kudos
1 Solution

Accepted Solutions
jcarlson
MVP Frequent Contributor

There's the Grid settings available at the bottom of your map frame:

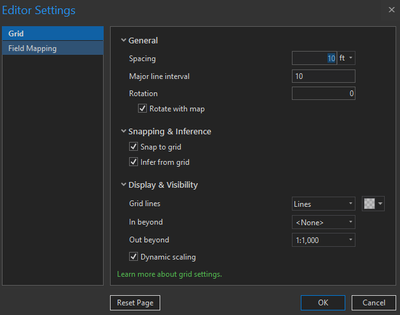

The "deeper" settings are found in the Editor Settings menu.


The grid's origin is static, so it's going to pan with the map, but it should be good enough to eyeball things.

- Josh Carlson
Kendall County GIS

View solution in original post

2 Replies
jcarlson
MVP Frequent Contributor

There's the Grid settings available at the bottom of your map frame:


The "deeper" settings are found in the Editor Settings menu.


The grid's origin is static, so it's going to pan with the map, but it should be good enough to eyeball things.

- Josh Carlson
Kendall County GIS

View solution in original post

Mapyes
by
New Contributor II

Just as simple as that! Thank you!

0 Kudos
