Chart options in Analysis\Views

[EricJohnson-HDR]

I found a default chart in an example analysis for ArcSOC counts.  Wondering if the Y axis "scale" can be adjusted?  Seems it stops at 100 and would like that to display to say 200 (max recommended SOC's) on a server.  You can pause on the server and it gives you the actual count, but would prefer that to either show complete graph and or display the count.

If i change the Statistic field from maximum to count, they all return 30?

I will confess that I am super green to tweaking these collections/analysis but starting to get request from end users to display some finer details.

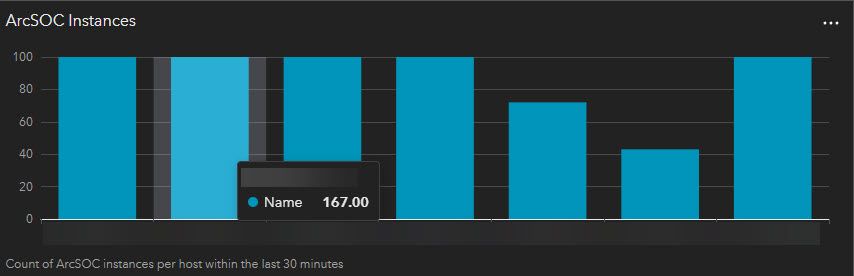

See attached for the chart set to Maximum.

Thanks.

[DerekLaw]

Hi @EricJohnson-HDR,

> Wondering if the Y axis "scale" can be adjusted?

It is not possible to adjust the X and Y axes of serial charts in ArcGIS Monitor. Right now, the behavior of the serial chart is to autoscale value ranges based on the input data. Sorry.

Please submit a feature enhancement request in the ArcGIS Monitor Ideas forum.

If you want more precise control on how the data values are displayed, you could put the components into a collection, then enable their metrics as a feature layer and show the data in ArcGIS Dashboards (which offers more options for data visualization).

Hope this helps,
