ArcGIS Defense Mapping product data files 3.3.0.1 & 11.3.0.1 -- Now Available

[jos20]

• Summary
• Description
• Notes
• Issues Addressed

Summary

The ArcGIS Defense Mapping product data files patch for ArcGIS Pro 3.3 and ArcGIS Enterprise 11.3 is available to download from My Esri.

Description

To download Esri software, go to the My Organizations tab, then click the Downloads sub tab. You must have permission to download software to access the Downloads sub tab. If you do not see this sub tab, you may need to request permissions.

Notes

• These files are appropriate for use with any patch version of ArcGIS Pro 3.3 or ArcGIS Enterprise 11.3.
• This is a full install of the product data files which includes all updated and previously released configuration files.
• Any edits made to configuration files should be preserved before installing this update.

Issues Addressed

• Remnants of incorrect Spot color descriptions—"58600 (Black)"—were removed from several dynamic surround elements, such as the Elevation Guide Bar, in layout (.pagx) files.
• Label expressions and properties, symbology, and elements for the following map products were reviewed and updated to meet industry standards.
  • Multinational Geospatial Co-production Program (MGCP) Topographic Map (MTM) were updated for spec version 1.3.
  • Topographic Map (TM) products updated to spec version 1.3.
  • Joint Operations Graphic (JOG) product was updated to spec version 1.2.
• An issue with automated masking rule files, where cyan annotation was incorrectly masking road Dk-Brown202 symbol components, was corrected.

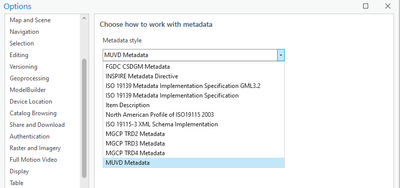

• The MGCP Urban Vector Data (MUVD) Metadata option was not appearing when choosing a metadata style to work with in ArcGIS Pro options. This has been corrected.

• BUG-000165930 involving the Make Grids And Graticules Layer tool has been resolved, and new grid XML files were issued accordingly.
