how to view a feature with a photo attached to it from arcgis to google earth

Question

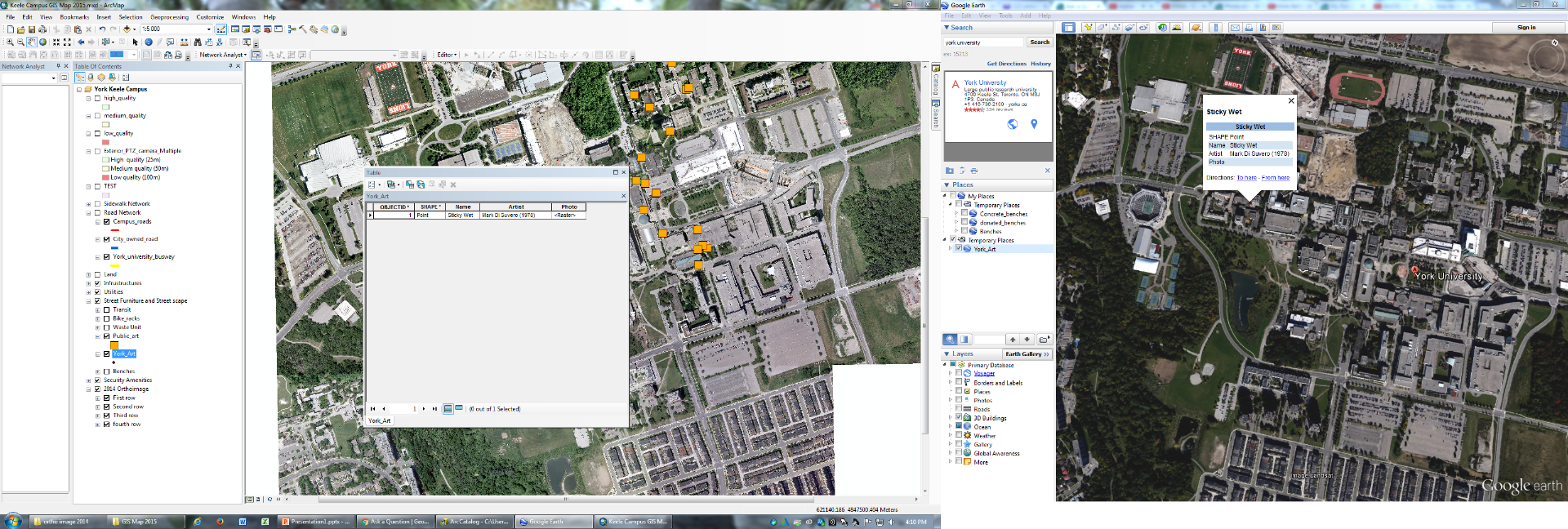

I'm trying to add a feature (File Geodatabase) with an attached photo (raster file) from ArcMap to google earth. When i use the tool Layer to KML i get the feature but when i open the google earth file i can't view  the photo attached to Google Earth. I attached a picture below

HashemAbdo1 · Answer

Thanks alot

JosephSegretto__GISP · Answer

* If you have access to a web server, you can place the photos on a webserver and use them there.  If not, you can upload your images to a site like Flickr.  As long as you grant public viewing permissions, the images will appear in the html popup.
* There are sample xsl templates installed with ArcGIS Desktop at C:\Program Files (x86)\ArcGIS\Desktop10.x\Styles\HTMLPopup.  You can copy and paste the code from the example .xsl into the HTML Popup tab of the layer properties for your layer.  In the EmbeddVideo.xsl, you will see segments of code that start with <xsl: when.  You can modify one of those sections to match the snippet above, or add the snippet from above as another test.

HashemAbdo1 · Answer

I never tried this before and i'm a little bit confused could you explain what you mean when you say :

1)"you'd need to save the photo to a location that is web enabled and add they hyperlink of the image to a field in your feature class"

Where do i put that code ?

2) Then you would need to modify the html popup xsl template in the layer properties to include a test for field values.

Thank you in advance
