show/hide widgets on-the-fly

Alexwang

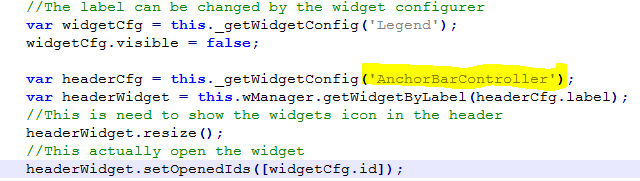

Hello, I have a need to show or hide our widgets based on logged users. I found Robert's post here - https://community.esri.com/thread/174605#comment-598708 . Since we use Launchpad theme, so i simply change "HeaderController" to "AnchorBarController" in the codes, but the Legend Icon didn't appear on the Anchor Bar and didn't open either. Does anybody make the codes work for Lauchpad theme?

タグ付けされた投稿をもっと見る

Accepted answers

RobertScheitlin__GISP

Alex.

The Launchpad theme is pretty different.

&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; <SPAN class="keyword token">var</SPAN> widgetCfg <SPAN class="operator token">=</SPAN> <SPAN class="keyword token">this</SPAN><SPAN class="punctuation token">.</SPAN><SPAN class="token function">_getWidgetConfig</SPAN><SPAN class="punctuation token">(</SPAN><SPAN class="string token">'Draw'</SPAN><SPAN class="punctuation token">)</SPAN><SPAN class="punctuation token">;</SPAN>
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; widgetCfg<SPAN class="punctuation token">.</SPAN>visible <SPAN class="operator token">=</SPAN> <SPAN class="keyword token">true</SPAN><SPAN class="punctuation token">;</SPAN>
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; <SPAN class="keyword token">var</SPAN> anchorCfg <SPAN class="operator token">=</SPAN> <SPAN class="keyword token">this</SPAN><SPAN class="punctuation token">.</SPAN><SPAN class="token function">_getWidgetConfig</SPAN><SPAN class="punctuation token">(</SPAN><SPAN class="string token">'AnchorBarController'</SPAN><SPAN class="punctuation token">)</SPAN><SPAN class="punctuation token">;</SPAN>
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; <SPAN class="keyword token">var</SPAN> anchorWidget <SPAN class="operator token">=</SPAN> <SPAN class="keyword token">this</SPAN><SPAN class="punctuation token">.</SPAN>wManager<SPAN class="punctuation token">.</SPAN><SPAN class="token function">getWidgetByLabel</SPAN><SPAN class="punctuation token">(</SPAN>anchorCfg<SPAN class="punctuation token">.</SPAN>label<SPAN class="punctuation token">)</SPAN><SPAN class="punctuation token">;</SPAN>

&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; <SPAN class="comment token">//This actually open the widget</SPAN>
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; anchorWidget<SPAN class="punctuation token">.</SPAN><SPAN class="token function">_createItem</SPAN><SPAN class="punctuation token">(</SPAN>widgetCfg<SPAN class="punctuation token">,</SPAN> anchorWidget<SPAN class="punctuation token">.</SPAN>iconList<SPAN class="punctuation token">.</SPAN>length <SPAN class="operator token">+</SPAN> <SPAN class="number token">1</SPAN><SPAN class="punctuation token">)</SPAN><SPAN class="punctuation token">;</SPAN>
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; anchorWidget<SPAN class="punctuation token">.</SPAN><SPAN class="token function">setOpenedIds</SPAN><SPAN class="punctuation token">(</SPAN><SPAN class="punctuation token">[</SPAN>widgetCfg<SPAN class="punctuation token">.</SPAN>id<SPAN class="punctuation token">]</SPAN><SPAN class="punctuation token">)</SPAN><SPAN class="punctuation token">;</SPAN>
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; <SPAN class="comment token">//This is need to show the widgets icon in the header</SPAN>
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; anchorWidget<SPAN class="punctuation token">.</SPAN><SPAN class="token function">resize</SPAN><SPAN class="punctuation token">(</SPAN><SPAN class="punctuation token">)</SPAN><SPAN class="punctuation token">;</SPAN>
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; anchorWidget<SPAN class="punctuation token">.</SPAN><SPAN class="token function">_makeIconVisible</SPAN><SPAN class="punctuation token">(</SPAN>anchorWidget<SPAN class="punctuation token">.</SPAN>iconList<SPAN class="punctuation token">.</SPAN>length<SPAN class="punctuation token">)</SPAN><SPAN class="punctuation token">;</SPAN><SPAN class="line-numbers-rows"><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN></SPAN>

All comments

RobertScheitlin__GISP

Alex,

Sorry, I don't have any insight on off panel widgets like the AT widget.

Alexwang

Thanks again Robert. I tested that the codes didn't work for on-screen widgets such as Attribute Table Widget. Can you please shed some light one more time?

Alexwang

WOW!!! worked perfectly. Thank you so much for your help! I'll never be able to figure it out by myself.

RobertScheitlin__GISP

Alex,

This will keep the widget index correct:

&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; <SPAN class="keyword token">var</SPAN> widgetCfg <SPAN class="operator token">=</SPAN> <SPAN class="keyword token">this</SPAN><SPAN class="punctuation token">.</SPAN><SPAN class="token function">_getWidgetConfig</SPAN><SPAN class="punctuation token">(</SPAN><SPAN class="string token">'Draw'</SPAN><SPAN class="punctuation token">)</SPAN><SPAN class="punctuation token">;</SPAN>
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; widgetCfg<SPAN class="punctuation token">.</SPAN>visible <SPAN class="operator token">=</SPAN> <SPAN class="keyword token">true</SPAN><SPAN class="punctuation token">;</SPAN>
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; <SPAN class="keyword token">var</SPAN> anchorCfg <SPAN class="operator token">=</SPAN> <SPAN class="keyword token">this</SPAN><SPAN class="punctuation token">.</SPAN><SPAN class="token function">_getWidgetConfig</SPAN><SPAN class="punctuation token">(</SPAN><SPAN class="string token">'AnchorBarController'</SPAN><SPAN class="punctuation token">)</SPAN><SPAN class="punctuation token">;</SPAN>
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; <SPAN class="keyword token">var</SPAN> anchorWidget <SPAN class="operator token">=</SPAN> <SPAN class="keyword token">this</SPAN><SPAN class="punctuation token">.</SPAN>wManager<SPAN class="punctuation token">.</SPAN><SPAN class="token function">getWidgetByLabel</SPAN><SPAN class="punctuation token">(</SPAN>anchorCfg<SPAN class="punctuation token">.</SPAN>label<SPAN class="punctuation token">)</SPAN><SPAN class="punctuation token">;</SPAN>

&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; <SPAN class="comment token">//Save the ids of any opened widgets</SPAN>
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; <SPAN class="keyword token">var</SPAN> oids <SPAN class="operator token">=</SPAN> anchorWidget<SPAN class="punctuation token">.</SPAN><SPAN class="token function">getOpenedIds</SPAN><SPAN class="punctuation token">(</SPAN><SPAN class="punctuation token">)</SPAN><SPAN class="punctuation token">;</SPAN>
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; oids<SPAN class="punctuation token">.</SPAN><SPAN class="token function">push</SPAN><SPAN class="punctuation token">(</SPAN>widgetCfg<SPAN class="punctuation token">.</SPAN>id<SPAN class="punctuation token">)</SPAN><SPAN class="punctuation token">;</SPAN>
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; <SPAN class="comment token">//This removes all the existing icons</SPAN>
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; anchorWidget<SPAN class="punctuation token">.</SPAN><SPAN class="token function">clearIconGroupNode</SPAN><SPAN class="punctuation token">(</SPAN><SPAN class="punctuation token">)</SPAN><SPAN class="punctuation token">;</SPAN>
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; <SPAN class="comment token">//This will recreate all the icons now that one of more visible property has changed</SPAN>
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; anchorWidget<SPAN class="punctuation token">.</SPAN><SPAN class="token function">postCreate</SPAN><SPAN class="punctuation token">(</SPAN><SPAN class="punctuation token">)</SPAN><SPAN class="punctuation token">;</SPAN>
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; anchorWidget<SPAN class="punctuation token">.</SPAN><SPAN class="token function">setOpenedIds</SPAN><SPAN class="punctuation token">(</SPAN>oids<SPAN class="punctuation token">)</SPAN><SPAN class="punctuation token">;</SPAN>
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; <SPAN class="comment token">//This is need to show the widgets icon in the header</SPAN>
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; anchorWidget<SPAN class="punctuation token">.</SPAN><SPAN class="token function">resize</SPAN><SPAN class="punctuation token">(</SPAN><SPAN class="punctuation token">)</SPAN><SPAN class="punctuation token">;</SPAN><SPAN class="line-numbers-rows"><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN></SPAN>

Alexwang

OK, thanks Roberts. Can you do it in an opposite way - to set the Draw widget visible at startup, then hide it later?

RobertScheitlin__GISP

Alex,

No not that I am aware of as the anchor bar controller creates all visible widgets at startup and invisible ones are ignored.

Alexwang

Appreciate it, Robert. Your codes worked. The only thing was that the widget was added at the end of the Anchor bar. I tried to set the index to its original index (widgetCfg.index = 2; ), but it was still added at the end. is there a way to add it as the first one instead of the last one?

RobertScheitlin__GISP

Alex.

The Launchpad theme is pretty different.

&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; <SPAN class="keyword token">var</SPAN> widgetCfg <SPAN class="operator token">=</SPAN> <SPAN class="keyword token">this</SPAN><SPAN class="punctuation token">.</SPAN><SPAN class="token function">_getWidgetConfig</SPAN><SPAN class="punctuation token">(</SPAN><SPAN class="string token">'Draw'</SPAN><SPAN class="punctuation token">)</SPAN><SPAN class="punctuation token">;</SPAN>
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; widgetCfg<SPAN class="punctuation token">.</SPAN>visible <SPAN class="operator token">=</SPAN> <SPAN class="keyword token">true</SPAN><SPAN class="punctuation token">;</SPAN>
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; <SPAN class="keyword token">var</SPAN> anchorCfg <SPAN class="operator token">=</SPAN> <SPAN class="keyword token">this</SPAN><SPAN class="punctuation token">.</SPAN><SPAN class="token function">_getWidgetConfig</SPAN><SPAN class="punctuation token">(</SPAN><SPAN class="string token">'AnchorBarController'</SPAN><SPAN class="punctuation token">)</SPAN><SPAN class="punctuation token">;</SPAN>
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; <SPAN class="keyword token">var</SPAN> anchorWidget <SPAN class="operator token">=</SPAN> <SPAN class="keyword token">this</SPAN><SPAN class="punctuation token">.</SPAN>wManager<SPAN class="punctuation token">.</SPAN><SPAN class="token function">getWidgetByLabel</SPAN><SPAN class="punctuation token">(</SPAN>anchorCfg<SPAN class="punctuation token">.</SPAN>label<SPAN class="punctuation token">)</SPAN><SPAN class="punctuation token">;</SPAN>

&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; <SPAN class="comment token">//This actually open the widget</SPAN>
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; anchorWidget<SPAN class="punctuation token">.</SPAN><SPAN class="token function">_createItem</SPAN><SPAN class="punctuation token">(</SPAN>widgetCfg<SPAN class="punctuation token">,</SPAN> anchorWidget<SPAN class="punctuation token">.</SPAN>iconList<SPAN class="punctuation token">.</SPAN>length <SPAN class="operator token">+</SPAN> <SPAN class="number token">1</SPAN><SPAN class="punctuation token">)</SPAN><SPAN class="punctuation token">;</SPAN>
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; anchorWidget<SPAN class="punctuation token">.</SPAN><SPAN class="token function">setOpenedIds</SPAN><SPAN class="punctuation token">(</SPAN><SPAN class="punctuation token">[</SPAN>widgetCfg<SPAN class="punctuation token">.</SPAN>id<SPAN class="punctuation token">]</SPAN><SPAN class="punctuation token">)</SPAN><SPAN class="punctuation token">;</SPAN>
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; <SPAN class="comment token">//This is need to show the widgets icon in the header</SPAN>
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; anchorWidget<SPAN class="punctuation token">.</SPAN><SPAN class="token function">resize</SPAN><SPAN class="punctuation token">(</SPAN><SPAN class="punctuation token">)</SPAN><SPAN class="punctuation token">;</SPAN>
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; anchorWidget<SPAN class="punctuation token">.</SPAN><SPAN class="token function">_makeIconVisible</SPAN><SPAN class="punctuation token">(</SPAN>anchorWidget<SPAN class="punctuation token">.</SPAN>iconList<SPAN class="punctuation token">.</SPAN>length<SPAN class="punctuation token">)</SPAN><SPAN class="punctuation token">;</SPAN><SPAN class="line-numbers-rows"><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN></SPAN>
