ArcGIS Builder Configuration Error - Data Store

BrianLeroux

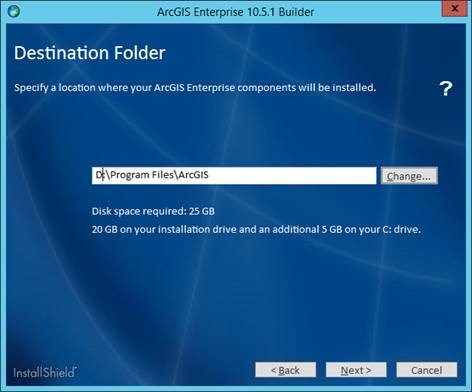

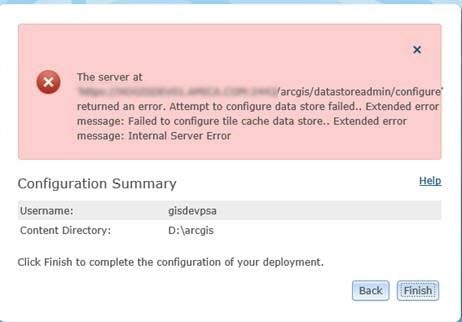

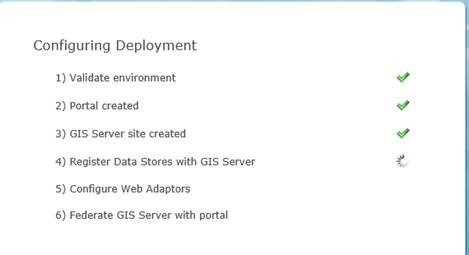

After using the enterprise builder to install the ArcGIS enterprise components on a Windows server, it fails on the configuration process. Here are some screenshots of the install process as well as the server log. Looks like a permission issue but not sure which account is having the issue. Is it a PSA account issue or the domain account we configured? Any advice on what permissions need to be granted and for what locations?

serverlog.txt.zip


タグ付きの投稿をもっと見る

Accepted answers

RandallWilliams

It's the domain/service account that's having issues.

"Ensure that the ArcGIS Server account has read and write access to the location."

It needs full control of \arcgisserver, \arcgisportal, \arcgisdatastore, \Program Files\ArcGIS\DataStore, \Program Files\ArcGIS\Server, \Program Files\ArcGIS\Portal.

All comments

RandallWilliams

It's the domain/service account that's having issues.

"Ensure that the ArcGIS Server account has read and write access to the location."

It needs full control of \arcgisserver, \arcgisportal, \arcgisdatastore, \Program Files\ArcGIS\DataStore, \Program Files\ArcGIS\Server, \Program Files\ArcGIS\Portal.

BrianLeroux

No luck. I granted that account full control access to: \argis and all subfolders, <D:\program files\arcigis> and all subfolders. I rebooted, then re-ran the enterprise config wizard.Now I am getting server errors.

<Msg time="2017-10-31T15:39:43,607" type="SEVERE" code="219999" source="Admin" process="4752" thread="13" methodName="" machine="MYSERVER.AMICA.COM" user="" elapsed=""> Unable to check if Enterprise Site is configured.'java.lang.RuntimeException: java.net.ConnectException: Connection refused: connect</Msg>
<Msg time="2017-11-01T13:52:35,410" type="SEVERE" code="300068" source="Admin" process="4752" thread="13" methodName="" machine="MYSERVER.AMICA.COM" user="" elapsed="">Failed to register datastore with server. The server at 'https://MYSERVER.AMICA.COM:2443/arcgis/datastoreadmin/configure' returned an error. Attempt to configure data store failed.. Extended error message: Failed to configure tile cache data store.. Extended error message: Internal Server Error</Msg>
<Msg time="2017-11-01T13:52:35,411" type="SEVERE" code="300028" source="Admin" process="4752" thread="13" methodName="" machine="MYSERVER.AMICA.COM" user="" elapsed="">Site initialization failed. java.lang.Exception: The server at 'https://MYSERVER.AMICA.COM:2443/arcgis/datastoreadmin/configure' returned an error. Attempt to configure data store failed.. Extended error message: Failed to configure tile cache data store.. Extended error message: Internal Server Error</Msg>

George_Thompson

Look at this Tech article: Error: Attempt to configure data store failed. Extended error message: Failed to configure tile cache data store

Focus on the solution section.

BrianLeroux

So because I am using the 😧 drive instead of C: I can't have a space in the install directory.If I am reading the solution correctly, I will need to uninstall and start from scratch?

George_Thompson

I would say yes. There needs to be no spaces in the file path location.

MikeVolz

Does this requirement only apply to the Data Store installation or to all components of an ArcGIS Enterprise deployment including the base ArcGIS Server install?
