Remove gnss metadata json attachment from popup

JamieMaxwell

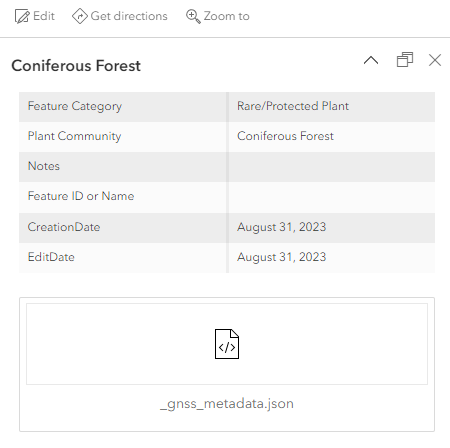

Is it possible to hide the _gnss_metadata.json attachment in the "new" Map Viewer without disabling attachments in popups entirely? It just confuses users and adds unnecessary clutter. This was never an issue in the Classic Map Viewer.

Am I missing something? I found an idea post at the link below, but there are no comments on it.

Ability to select Attachment type when adding atta... - Esri Community

タグ付きの投稿をもっと見る

Content Management

Mapping

Accepted answers

All comments

ClayDonaldsonSWCA

That's odd - what are you using to collect data? Never seen gnss_metadata stored as a json through field maps or survey123.

Pretty sure you could modify this arcade function to only include photos.

Show Attachments in Pop-ups with Arcade Expression... - Esri Community

JamieMaxwell

Thanks for the suggestion, Clay. The method you referenced looks like it only works on layers shared publicly. I can't make this one public, unfortunately. I'm going to look into this option a bit further.

In this particular case, I'm seeing the GNSS metadata attachment on a polygon I created on my iPhone (no external GNSS unit or anything). However, I've seen it before on features created with Trimble R1 and Catalyst units.

Edit: the polygon was created in Field Maps and the layer has GNSS fields enabled.

PeterKnoop

@ClaO When you collect line or polygon features with the GPS / GNSS metadata fields present in Field Maps, a JSON attachment is used as part of the process. That is not the case for point features.

There is note relating to this in Prepare for high-accuracy data collection, "To capture GPS metadata for line and polygon features, attachments must be enabled for the feature layer."

@jmaxwell_braun If the GPS / GNSS metadata fields are present, then when you collect a line or polygon -- even with your iPhone's internal receiver -- a JSON attachment gets created. The presence of the fields seems to be the dependency, rather than what receiver is used.

Hoping someone else can share a solution to generating a clickable attachment list, minus the _gnss_metadata.json file, and for non-public layers. We often have photo attachments that we want included in the popup, but not the json file.

AndrewThompson_SCE

Has anyone opened a ESRI ticket for this? We are wondering about this as well.

I also noticed that these do not show up in the attachment table in an enterprise database which I thought was interesting.

HollyTorpey_LSA

I have older field data collection templates that have the GPS Metadata fields on the point layer but not on the lines or polygons. Now I can't figure out how we did that, because it seems like the fields get added to all layers or none. We must have used the Add GPS Metadata fields geoprocessing tool rather than creating the template directly in ArcGIS Online. In any case I hadn't noticed this _gnss_metadata.json issue until recently and now it's driving me crazy.

Does anyone know what would happen if I just deleted the GPS Metadata fields from my line and polygon layers? I can't abide by these dumb-looking popups.

andrewRaaf

Yes this is a dumb error in the popups. I found an imperfect workaround: In the Layer Properties, then Popup configuration, then Attachments: you can set the order of attachments to display by "Size" then "descending" order. This will at least show the photo attachments at the top of the viewer and bump the stupid _gnss_metadata further down so it's not in your way as much.

PeterKnoop

Great tip @andrewRaaf! Not a perfect workaround, however, it does improve the user experience.
