Test your install with jupyter notebook - map widget doesn't display

NicoleBradstreet1

I just installed the ArcGIS API for Python and I'm having an issue displaying a map widget in jupyter notebook. I think it has something to do with my install, a version issue, or a missing extension? Here's a screen shot. Any suggestions?

-Nicole

Here is a little more detail about my install:

Find more posts tagged with

Accepted answers

All comments

Anonymous User

Can you try installing arcgis again, If you still get that error try cleaning conda cache by 'conda clean -t' and then try to install arcgis.

JamalWest2

So, I ended up updating the arcgis package and the map widget started working.

Marco_E_Cadario

I've run commands on Jupyter Lab cli Terminal (I have MacOS w/ conda).
On windows you can use Anaconda Prompt.
Make sure to use correct version of Python API after @ on arcgis-map-ipywidget
and

!jupyter nbextension enable --py --sys-prefix arcgis

on top of the notebook.

JamalWest2

Marco where do you run this? I'm having the same issue.

GraceAmondi

jupyter nbextension enable --py --sys-prefix arcgis<SPAN class="line-numbers-rows"><SPAN>‍</SPAN></SPAN>

is what i was missing. Thanks it worked!!

NicoleBradstreet1

Marco, thanks! I had to move on to something else but as I get back to this will give your suggestion a try,

Marco_E_Cadario

I have had the same problem but on Jupyter Lab after a Conda update.
To view maps instead of MapView(layout = ...
you need to run

jupyter labextension install @jupyter-widgets/jupyterlab-manager
jupyter labextension installs arcgis-map-ipywidget@1.5.0

The NodeJS will reinstall the widget.

Using the JupyterLab Environment
I hope this can help you.

simoxu

arcgis/mapview seems from the old version. you can delete the related entries in the nbconfig file and restart jupyter.

Or, completely uninstall ArcGIS API for Python and reinstall it.

Hope this helps.

NicoleBradstreet1

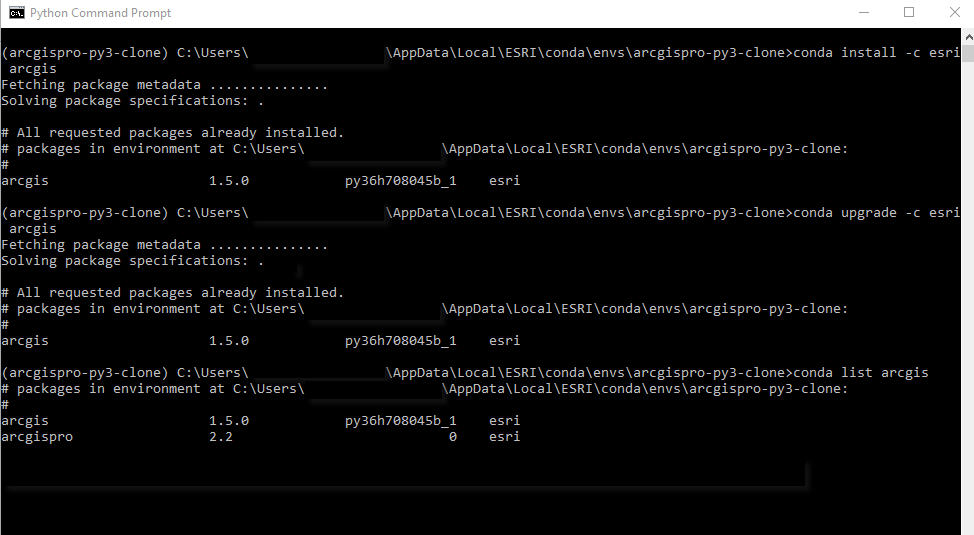

I definitely appreciate the input but unfortunately I am still out of luck. I created a fresh clone and tried again. Looks like all of the extensions are there and enabled, but still no map. Here are some details:

I did get a strange ShimWarning here though (...The 'IPython.kernal' package has been deprecated since IPython 4.0...):

DanPatterson_Retired

good point, assumed it would be if installed (mine was)

simoxu

Looks like the Map widget is not enabled.

Firstly, try this in the exact environment (if you have multiple envs) your jupyter server is running in:

<SPAN class="" style="border: 0px; font-weight: inherit; font-size: 14.45px;">python</SPAN> <SPAN class="" style="border: 0px; font-weight: inherit; font-size: 14.45px;">-m</SPAN> <SPAN class="" style="border: 0px; font-weight: inherit; font-size: 14.45px;">arcgis</SPAN><SPAN class="" style="border: 0px; font-weight: inherit; font-size: 14.45px;">.install</SPAN>

If it does not work, then you can check if the map widget is enabled in notebook:

jupyter nbextension list

if not, enable it manually:

jupyter nbextension enable --py --sys-prefix widgetsnbextension
jupyter nbextension enable --py --sys-prefix arcgis

Last, you can check your environment to see if it meets the minimal system requirement:

<SPAN class="keyword token">print</SPAN><SPAN class="punctuation token">(</SPAN><SPAN class="string token">"python version: "</SPAN><SPAN class="punctuation token">,</SPAN>sys<SPAN class="punctuation token">.</SPAN>version<SPAN class="punctuation token">)</SPAN>
<SPAN class="keyword token">print</SPAN><SPAN class="punctuation token">(</SPAN><SPAN class="string token">"arcgis API version: "</SPAN><SPAN class="punctuation token">,</SPAN>arcgis<SPAN class="punctuation token">.</SPAN>__version__<SPAN class="punctuation token">)</SPAN>
<SPAN class="keyword token">print</SPAN><SPAN class="punctuation token">(</SPAN><SPAN class="string token">"widgetnbextension: "</SPAN><SPAN class="punctuation token">,</SPAN>widgetsnbextension<SPAN class="punctuation token">.</SPAN>__version__<SPAN class="punctuation token">)</SPAN>
<SPAN class="keyword token">print</SPAN><SPAN class="punctuation token">(</SPAN><SPAN class="string token">"ipywidgets version: "</SPAN><SPAN class="punctuation token">,</SPAN>ipywidgets<SPAN class="punctuation token">.</SPAN>__version__<SPAN class="punctuation token">)</SPAN><SPAN class="line-numbers-rows"><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN></SPAN>

Hope this helps.

DanPatterson_Retired

hmmm

One of my demos.... and the message I get because I didn't save the widget sate with the notebook... no sweat... I just run the cell

And when you run the cell, in this case I put in coordinates and a zoom level because I wanted to visit the birthplace of GIS (home of Roger Tomlinson... check your gis history)

Then I wanted to do a search, pour moi, to see if I could find some content at this locale...

And it returned some hits, but of course I needed some python code to demonstrate so I through in some conditions on how to display it.

And it carries on from there

and in *.py form (had issues with notebook export)

<SPAN class="comment token"># coding: utf-8</SPAN>

<SPAN class="comment token"># ## Jupyter Notebook for map demos##</SPAN>
<SPAN class="comment token"># </SPAN>
<SPAN class="comment token"># ### To Begin... ###</SPAN>
<SPAN class="comment token"># </SPAN>
<SPAN class="comment token"># Login arcgis online using your account or an anonymous login (see References section).</SPAN>
<SPAN class="comment token"># The map is centred on Carleton University, Ottawa, Canada.&nbsp; It may take some time to load so be patient.&nbsp; </SPAN>
<SPAN class="comment token"># The coordinates are given in Latitude, Longitude by convention.&nbsp; Just remember this, since coordinates within</SPAN>
 a GIS follow the mathematical ordering of Longitude<SPAN class="punctuation token">,</SPAN> Latitude <SPAN class="punctuation token">(</SPAN>aka X<SPAN class="punctuation token">,</SPAN>Y ordering<SPAN class="punctuation token">)</SPAN><SPAN class="punctuation token">.</SPAN>

<SPAN class="comment token"># In[2]:</SPAN>


<SPAN class="keyword token">from</SPAN> arcgis<SPAN class="punctuation token">.</SPAN>gis <SPAN class="keyword token">import</SPAN> GIS
gis <SPAN class="operator token">=</SPAN> GIS<SPAN class="punctuation token">(</SPAN><SPAN class="punctuation token">)</SPAN>
gis<SPAN class="punctuation token">.</SPAN>map<SPAN class="punctuation token">(</SPAN><SPAN class="punctuation token">(</SPAN><SPAN class="number token">45.381298</SPAN><SPAN class="punctuation token">,</SPAN> <SPAN class="operator token">-</SPAN><SPAN class="number token">75.697823</SPAN><SPAN class="punctuation token">)</SPAN><SPAN class="punctuation token">,</SPAN> zoomlevel<SPAN class="operator token">=</SPAN><SPAN class="number token">14</SPAN><SPAN class="punctuation token">)</SPAN>&nbsp; <SPAN class="comment token"># Loeb Bldg at Carleton U</SPAN>


<SPAN class="comment token"># Search for something within the area... In this case, I am going to look for some of my code samples to see if</SPAN>
 anything shows up through our portal<SPAN class="punctuation token">.</SPAN>

<SPAN class="comment token"># In[2]:</SPAN>


srch_for <SPAN class="operator token">=</SPAN> <SPAN class="string token">"Dan Patterson"</SPAN>
items <SPAN class="operator token">=</SPAN> gis<SPAN class="punctuation token">.</SPAN>content<SPAN class="punctuation token">.</SPAN>search<SPAN class="punctuation token">(</SPAN>srch_for<SPAN class="punctuation token">,</SPAN> item_type<SPAN class="operator token">=</SPAN><SPAN class="string token">"Code Sample"</SPAN><SPAN class="punctuation token">)</SPAN>
n <SPAN class="operator token">=</SPAN> len<SPAN class="punctuation token">(</SPAN>items<SPAN class="punctuation token">)</SPAN>
<SPAN class="comment token">#</SPAN>
<SPAN class="comment token"># other examples... item_type: "Code sample", "Web Map", "Geoprocessing sample", "Feature layer"</SPAN>
<SPAN class="keyword token">print</SPAN><SPAN class="punctuation token">(</SPAN><SPAN class="string token">"There were {} items found using '{}' as keyword...showing the first"</SPAN><SPAN class="punctuation token">.</SPAN>format<SPAN class="punctuation token">(</SPAN>n<SPAN class="punctuation token">,</SPAN> srch_for<SPAN class="punctuation token">)</SPAN><SPAN class="punctuation token">)</SPAN>

<SPAN class="keyword token">if</SPAN> n <SPAN class="operator token">==</SPAN> <SPAN class="number token">2</SPAN><SPAN class="punctuation token">:</SPAN>&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; <SPAN class="comment token"># use this to display the first</SPAN>
&nbsp;&nbsp;&nbsp; display<SPAN class="punctuation token">(</SPAN>items<SPAN class="punctuation token">[</SPAN><SPAN class="number token">0</SPAN><SPAN class="punctuation token">]</SPAN><SPAN class="punctuation token">)</SPAN>
<SPAN class="keyword token">elif</SPAN> n <SPAN class="operator token">></SPAN> <SPAN class="number token">2</SPAN><SPAN class="punctuation token">:</SPAN>
&nbsp;&nbsp;&nbsp; <SPAN class="keyword token">for</SPAN> item <SPAN class="keyword token">in</SPAN> items<SPAN class="punctuation token">:</SPAN>&nbsp;&nbsp; <SPAN class="comment token"># use this block to display all</SPAN>
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; display<SPAN class="punctuation token">(</SPAN>item<SPAN class="punctuation token">)</SPAN>


<SPAN class="comment token"># ### __References:__##</SPAN>
<SPAN class="comment token"># </SPAN>
<SPAN class="comment token"># **Login options:**</SPAN>
<SPAN class="comment token"># </SPAN>
<SPAN class="comment token"><SPAN>#&nbsp;&nbsp;&nbsp;&nbsp; </SPAN><A class="jive-link-external-small" href="https://community.esri.com/external-link.jspa?url=https%3A%2F%2Fdevelopers.arcgis.com%2Fpython%2Fguide%2Fworking-with-different-authentication-schemes%2F" target="_blank">https://developers.arcgis.com/python/guide/working-with-different-authentication-schemes/</A></SPAN>
<SPAN class="comment token">#&nbsp;&nbsp;&nbsp;&nbsp; </SPAN>
<SPAN class="comment token">#&nbsp;&nbsp;&nbsp;&nbsp; anonymous&nbsp; - gis = GIS()</SPAN>
<SPAN class="comment token">#&nbsp;&nbsp;&nbsp;&nbsp; </SPAN>
<SPAN class="comment token">#&nbsp;&nbsp;&nbsp;&nbsp; within Pro - gis = GIS("pro")&nbsp; # note, Pro must be running when you do this.</SPAN>
<SPAN class="comment token">#&nbsp;&nbsp;&nbsp;&nbsp; </SPAN>
<SPAN class="comment token"># **Testing the basics:**</SPAN>
<SPAN class="comment token"># </SPAN>
<SPAN class="comment token"><SPAN>#&nbsp;&nbsp;&nbsp;&nbsp; </SPAN><A class="jive-link-external-small" href="https://community.esri.com/external-link.jspa?url=https%3A%2F%2Fdevelopers.arcgis.com%2Fpython%2Fguide%2Finstall-and-set-up%2F%23Install-using-Conda" target="_blank">https://developers.arcgis.com/python/guide/install-and-set-up/#Install-using-Conda</A></SPAN>
<SPAN class="comment token">#&nbsp;&nbsp;&nbsp;&nbsp; </SPAN>
<SPAN class="comment token">#&nbsp;&nbsp;&nbsp;&nbsp; </SPAN>

<SPAN class="comment token"># There... wasn't that easy.</SPAN>
<SPAN class="line-numbers-rows"><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN></SPAN>

NicoleBradstreet1

I was just following the steps from the python guide - Using the GIS. Whether I try to load a map as an anonymous user or from my content I'm having no success. I'm confused about the geocoder error, I'm not attempting to geocode anything.

DanPatterson_Retired

the error is related to a geocoder error. were you trying to map the location of the 'user'

NicoleBradstreet1

Here are some screen shots. I did get an error when I tried to load a map,

Partial list of packages:

DanPatterson_Retired

launched from my environment (not a clone, however).

What did it say in your console? was there an error? you do have the package installed, and did you run it from the clone?
