Point layer is no longer displayed but attribute table is still there.

AlexP_

Hello,

I have ArcMap 10.5.1. I had point feature layers display on ArcMap for like a month. But now my point feature layer drawing (SDE) is no longer displayed. It is like disappeared. But my attribute table info is still there. How can restore the drawing point feature layer? Please advise! Thank you!

Find more posts tagged with

Accepted answers

DanPatterson_Retired

Any 'Shape' field? If there is, right-click on the layer and select 'Zoom to Layer'. If there isn't, load a backup, the geometry may have been deleted or it was joined to something else and it wasn't loaded.

All comments

AlexP_

How do I attach it here?

JayantaPoddar

Could you zip and attach the FGDB you have created (using Data Export)? Let me review it.

AlexP_

It wasn't success. It is still not display. Also, tried to restore the back up but DBA told me this layer has no record as well. This is so odd.

AlexP_

Thank you. Yes. I am the data owner. It is not lock anymore. I am reading the document so I will click recalcuate for SQL.

George Thompson

You can do it that way! Just make sure there are no locks on the feature class and you connect as the data owner.

AlexP_

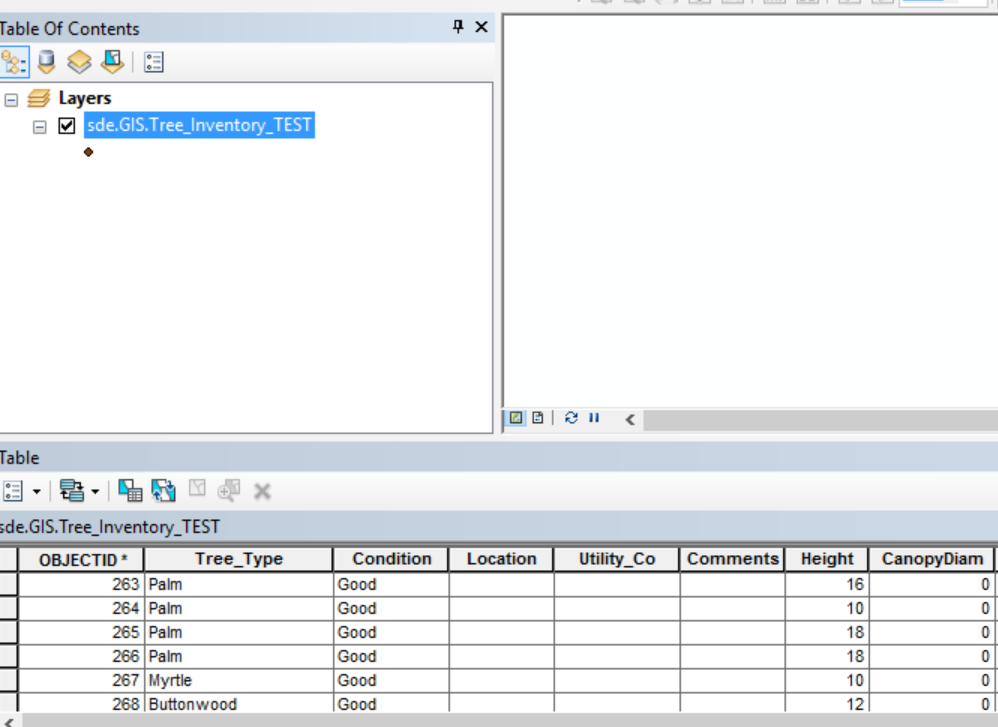

Please see screenshot.

George Thompson

Sure that should work. Make sure you connect as the data owner in ArcMap. You can also rebuild it via the feature classes connection properties.

AlexP_

Please confirm if this is the step I should do. I found this link.

Rebuild a spatial index—ArcGIS Help | ArcGIS Desktop

AlexP_

I tried it and it wasn't success.

George Thompson

Check the spatial index of the feature class. It may need to be rebuilt.

AlexP_

Also, yes . it has shape field point.

AlexP_

I will check this out as well.

AlexP_

I tried zoom to layer and nothing happened. It is still blank white screen. I will check out with back up. I am aware there is SQL back up. Is there a way get back up thru Arctoolbox or is it have to get in SQL?

JayantaPoddar

Try exporting the layer to a File Geodatabase. If the Feature class of the File GDB gets displayed properly, you could export it to SDE database.

DanPatterson_Retired
