How do I collect receiver name of integrated GPS?

Question

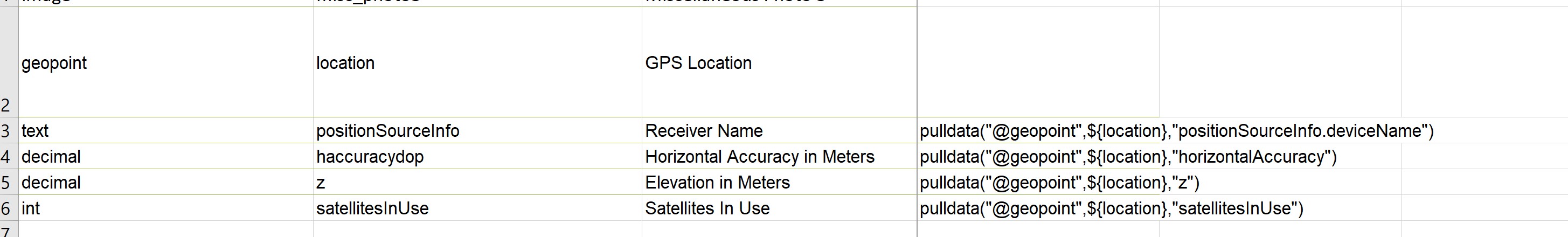

Greetings, I am using version 3.9 of Connect to create a survey. I would like to collect the name of the GPS receiver that is being used when data is submitted with the form. I have included a text type field with the name positionsourceinfo and a calculation of: pulldata("@geopoint",${location},"positionSourceInfo.deviceName"). Is this correct? I am able to collect the receiver name for a bad elf and trimble R1 but the field is left blank when the integrated GPS is used.

On a related note, I would like to include in the esri warning message a notification that the user is using the integrated GPS and not the BT GPS. How would I do that?

I attached the xls form.

b

Basic Water Crossing Survey 2020.xlsx


IsmaelChivite · Accepted Answer

Hi. The positionSourceInfo.deviceName property is only available for external GNSS receivers. This explains why an empty string is returned when you use the internal GPS.  The built-in GPS does not really have a name that we can return. Alternatively, if you do not want to have am empty value, you could go with something like this:

if(pulldata("@geopoint",${location},"positionSourceType")='2',"Built-In GPS",pulldata("@geopoint",${location},"positionSourceInfo.deviceName"))

You can also use the positionSourceType property to figure out if the user is using an external receiver or not. For example:

typenamelabelrelevantnotePlease connect your external GPSpulldata("@geopoint",${location},"positionSourceType")='2'geopointlocationGPS location

To learn about all the properties you can pull from a geopoint, check the Geopoints—Survey123 for ArcGIS | Documentation  help topic.

Thanks!
