Pulldata Xpath Error

Question

Pulldata calculation is causing "Error converting XLSForm"

Error message says:

>> Something broke the parser. See above for hint.

Error evaluating field 'MunicipalityCal': The problem was located in the calculate expression for ${MunicipalityCal}

XPath evaluation: cannot handle function 'Pulldata'

Caused by: org.javaorsa.xpath.XPathUnhandledException: The problem was located in calculate expresion for ${MunicipalityCal}

XPath evaluation: cannot handle function 'Pulldata'

... 10 more

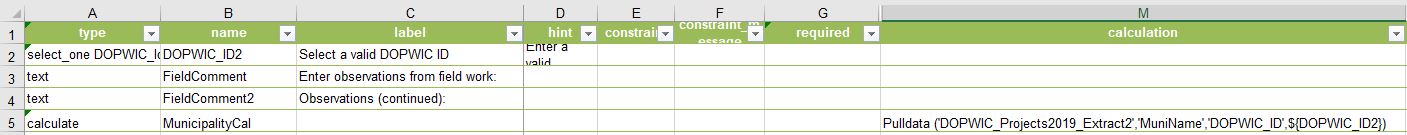

Expression says:

Pulldata ('DOPWIC_Projects2019_Extract2','MuniName','DOPWIC_ID',${DOPWIC_ID2})

Maybe something wrong with the path to my 'home' folder?

C:\Users\dmeaney.000\ArcGIS\My Survey Designs\SCIP2019_2

DanielMeaney · Answer

Yes, that fixed it. Thanks.

Sent from my phone ...

ClaireProctor · Answer

I just ran these checks with the 'calculate location from CSV' sample survey; it's the capital P that's causing the problem, it should be 'pulldata'.

The space is fine, Survey123 just doesn't use it in samples and example formulas in the documentation for style reasons.

NickDierks1 · Answer

I believe pulldata() should be all lowercase, and there shouldn't be a space in between it and the parentheses. Does your form work after making those changes?
