Applying WaterDistribution_AssetPackage fails

DavidHoy

Attempted to apply the most current WaterDistribution_AssetPackage.gdb

to a newly staged v10.6.1 Enterprise GeoDB using UNTools 2.3.1 in ArcGIS Pro 2.3 SP1

Error after 14 minutes

Start Time: Wednesday, 20 March 2019 6:29:44 PM

Running script AssetPackageToUtilityNetwork...

ArcGIS Pro 2.3.1.15769

untools 2.3.1

Parallel processing enabled: 6

ERROR 002717: Invalid Arcade expression, SCRIPTEXPRESSION (row 2)Failed to execute (ImportAttributeRules).

Failed to execute (AssetPackageToUtilityNetwork).

Failed at Wednesday, 20 March 2019 6:44:33 PM (Elapsed Time: 14 minutes 49 seconds)

I feature classes and tables have been successfully created in the database.

Seems that just step 6 of 6 failed - the ImportAttributeRules step.

Any ideas?

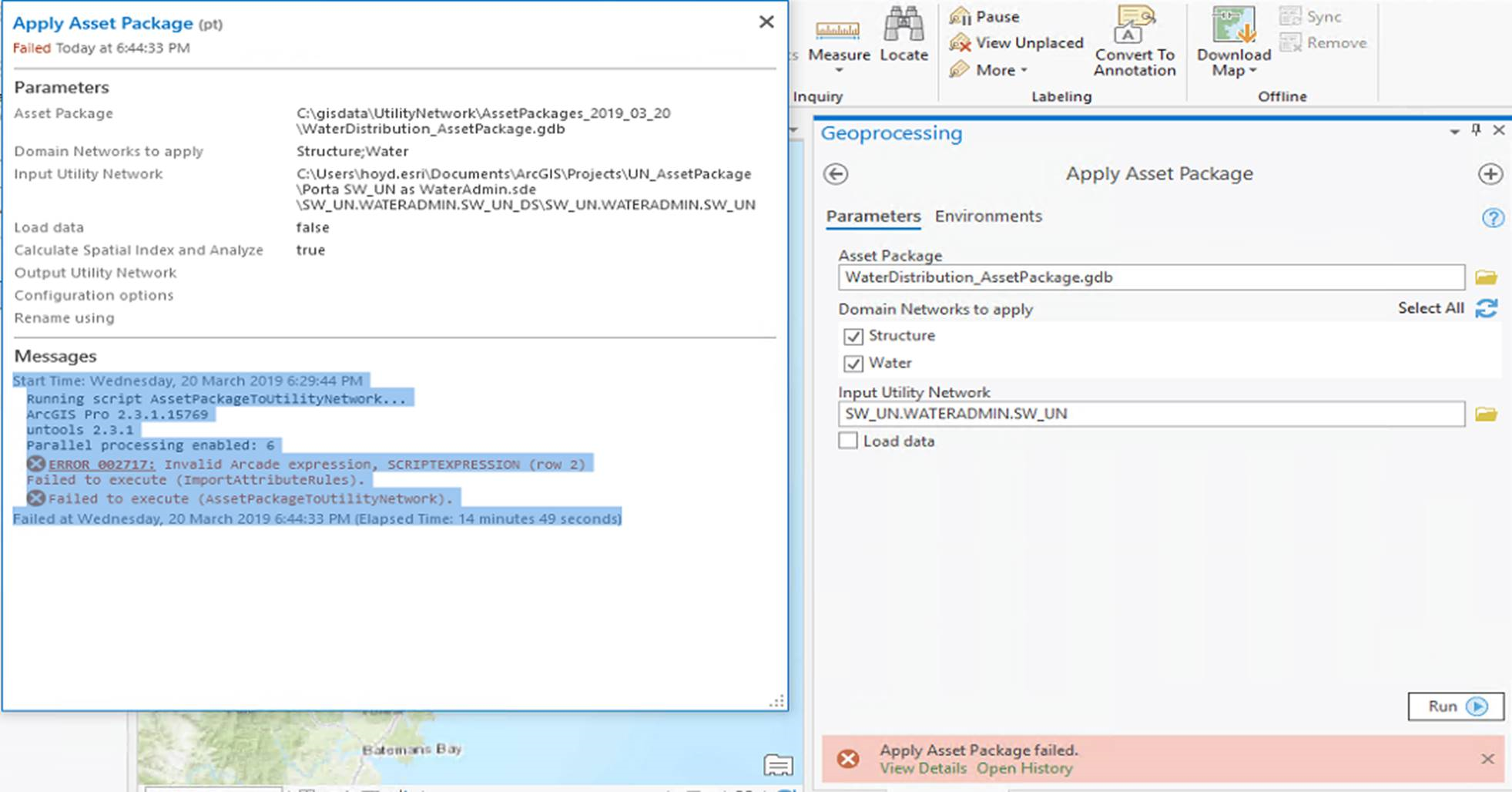

screenshot of error dialog

Find more posts tagged with

Water Distribution

Accepted answers

All comments

DavidHoy

thanks Paul, is there a bug reference? Any workaround?

How far off for this patch?

All classes in the current are empty except the boundary_polygon.

The Asset Package has no records to be loaded.

We are using Australian Projected Coordinate System GDA 1994 MGA Zone 56

Vish Apte‌ - have you struck this in other sites on Australian East Coast?

PaulLeBlanc1

Ahh it could be that the class it's failing on is empty. For your particular spatial reference, that is causing an issue.

I believe this will be resolved in the next patch of ArcGIS Pro.

DavidHoy

sadly, tried using the "Load Data" option.

Failed again at exactly the same spot

And even using the latest Pro 2.3.1.15769 and untools 2.3.2 and the latest WaterDistribution_AssetPackage (2.0.1 Jan 26 2019).

I have altered the spatial reference to match my UN boundary polygon

also tried upgrading the package (went from 1.0 to 2.3)

probably not the same issue.

PaulLeBlanc1

I believe this is BUG-000120526: The Apply Asset Package tool fails with Stormwater U..

If you choose load data, it should work.
