ArcGIS Pro 2.5: “enable topology network (utility network tool)” doesn’t create topology and thus “error inspector” fails to work,

JamalNUMAN

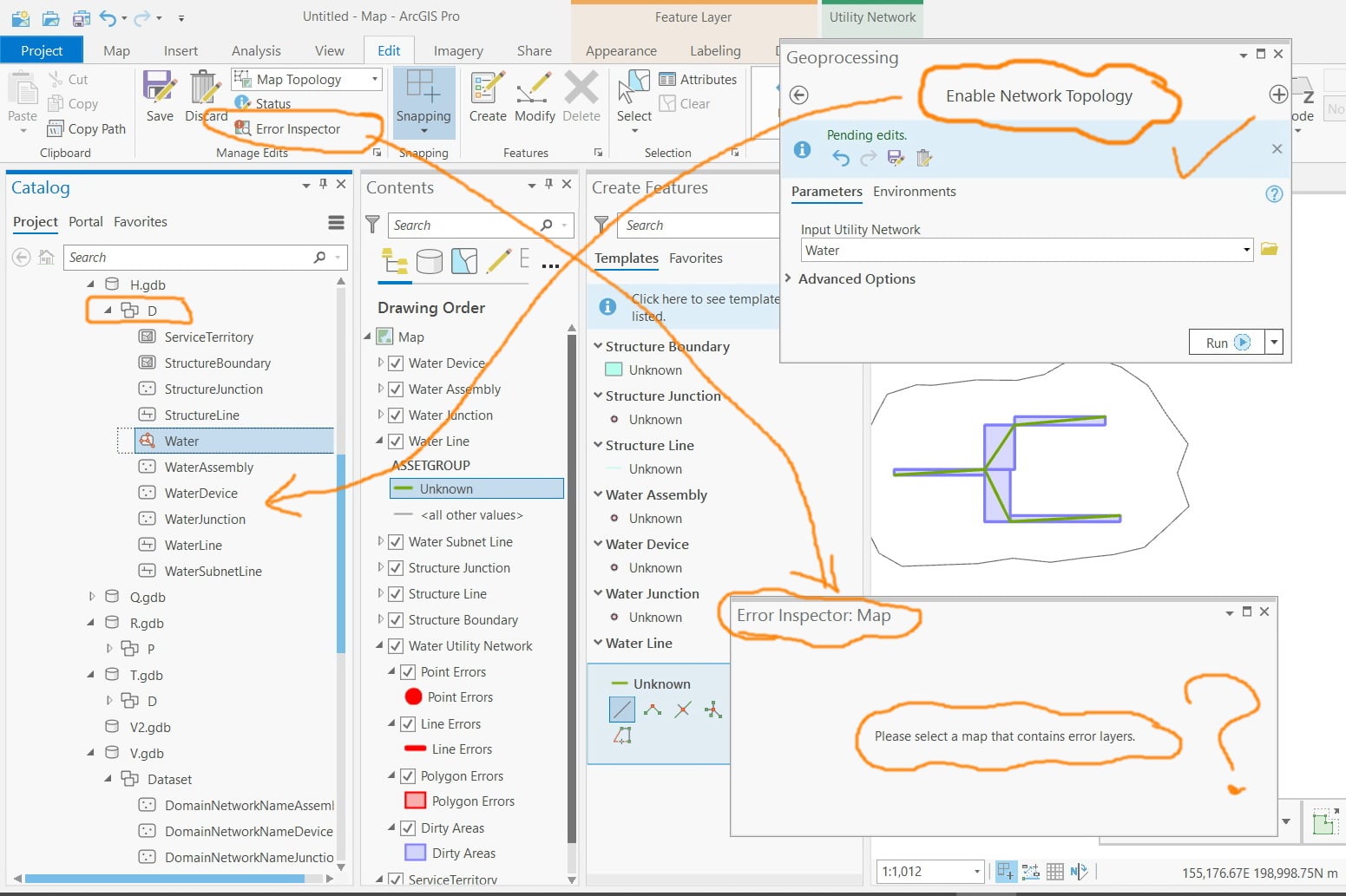

I couldn’t figure out why “enable topology network (utility network tool)” doesn’t create topology and thus “error inspector” fails to work.

When working with utility network from scratch, is it required to build a topology after performing “create utility network”, “add domain network” and “add rule” and then enabling it?

Is this by design?

Find more posts tagged with

Accepted answers

All comments

KoyaBrown2

I noticed that loading data with an unknown Asset Group + Asset Type results: Error type 2, getting subtype value fails or subtype value is unknown.

JamalNUMAN

Thank you Koya for the help

My point here is that I couldn’t figure out how to play with the topology as errors are identified in order to fix them. There are no tools available in order to fix the identified errors!

How fixing the errors related to utility networks is performed in Pro?

At the end of the day, the unknown value can be considered as an asset group and asset type. What’s wrong with that? The rule shown in the screenshot below confirms that as a water line of “unknow” asset group is connected with another water line of “unknown” asset group, then the junction is a water junction of “unknown” asset group and an “unknown” asset type

PaulLeBlanc1

The Unknown/Unknown Asset Group/Asset Type (by design) is always an error feature. Adding a rule doesn't matter here, and is likely a bug that the tool allowed you to even add it.

The error inspector doesn't currently work with the Utility Network. Error feature management—ArcGIS Pro | Documentation is a good starting place for learning more about errors and how to fix them.

JamalNUMAN

Thank you Paul.

I managed to add subtypes and domains for the (junction, device, and line) and to add rules for them as in the screenshot below. The rule says that a line of asset group (L1) is connected with another asset group (L1) via a junction of asset group (J1).

Now, in the network, lines (of L1 asset group) are not connected with each other via junctions (of J1 asset group), nevertheless, errors don’t show up as the topology is enabled (sample data is attached).

What could be the issue here?

Pro_UNW.gdb.zip
