ZigZag

Jennifer_Andrews

I am using ArcMap 10.3.

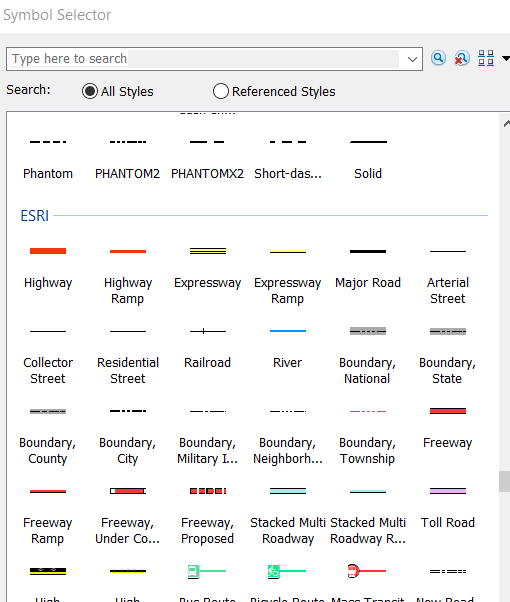

Is there a way to make a straight polyline zigzag? There are some line options in the Symbol Selector but nothing that is zigzag. These are a few of the options.

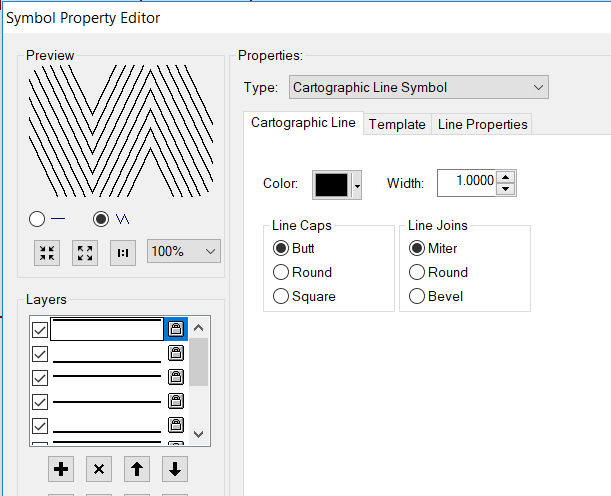

This is how I want my lines to be represented...is it even possible?

Find more posts tagged with

Accepted answers

All comments

My solution was to choose a Marker Line Symbol of the letter V. When the V repeats, it turns into a zigzag!
