3D extruded polygons flickering

SteveCline

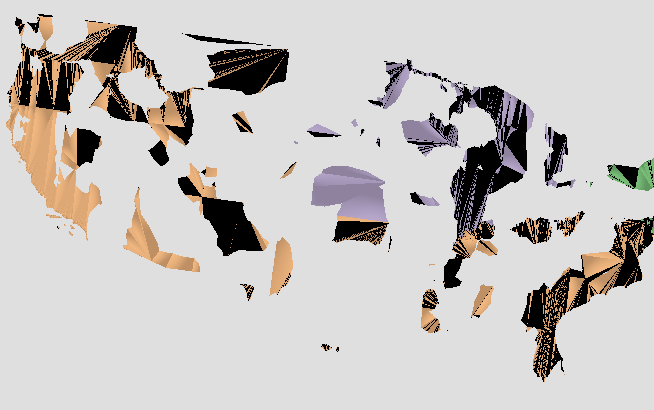

I am new to ArcGIS Pro but would like to use it to create a local 3D scene using a vector shapefile where polygons are extruded based on an attribute. I have tried several different feature classes and I am getting the same result in every case. The features are "flickering" when viewed in 3D. Here is a screenshot:

Any suggestions are appreciated.

Steve

Find more posts tagged with

Accepted answers

Jeremy Wright

This isn't anything wrong with your graphics card or ArcGIS Pro.

The polygons are "z-fighting" with the ground surface. This is expected, and you can repro in ArcScene even by stacking a world-extent polygon with extruded polys with a small extrusion value.

The graphics card can't decide which polygon is on top (ground or the extruded polys) when their values are very close to each other.

To prevent them from z-fighting, the polygons can be OFFSET from the "Ground" (using "relative to ground") by some amount. Alternatively you can add MORE extrusion to ensure that the polygons' tops are "Above ground".

Z-fighting is pretty well explained here if you're feeling like reading more about it: Z-fighting - Wikipedia, the free encyclopedia

All comments

JoãoMartins4

Hi Steve and Jeremy,

I´m having a similar problem, 3d extruded polygons flickering, 2 years later... ArcGISPro 2.1.3

I don´t think this is z-fighting though. I checked the system requirements, passed the test. The only thing short maybe the graphics card with only 1Gb memory (AMD FireProV5800).

extruded poligons 3d flicker

What can I do?

Thank you.

João

Jeremy Wright

We made some changes to default options on some layers, so perhaps that resolved the issue.

SteveCline

Jeremy -

I appreciate the response and suggestions here. Since this reply was posted I updated ArcGIS Pro and the issue is now resolved. Apparently someone was working on this somewhere.

Thanks

Steve

Jeremy Wright

you could also set the ground surface color to fully transparent. You can do this in Map properties->Elevation Surface. Set the color picker to "no color" and hit OK.

Jeremy Wright

This isn't anything wrong with your graphics card or ArcGIS Pro.

The polygons are "z-fighting" with the ground surface. This is expected, and you can repro in ArcScene even by stacking a world-extent polygon with extruded polys with a small extrusion value.

The graphics card can't decide which polygon is on top (ground or the extruded polys) when their values are very close to each other.

Z-fighting is pretty well explained here if you're feeling like reading more about it: Z-fighting - Wikipedia, the free encyclopedia

DanPatterson_Retired

maybe you can find it on the what was fixed list Release Notes for ArcGIS Pro 1.2—ArcGIS Pro | ArcGIS for Desktop

There is also one for 1.1.1 (don't mind the link title)

Release Notes—ArcGIS Pro | ArcGIS for Desktop

and 1.1.0

Release Notes—ArcGIS Pro | ArcGIS for Desktop

SteveCline

After checking the requirements I found no issue as the computer I was using met all the minimums. This morning, I updated to 1.2 and the flickering went away.

DanPatterson_Retired

Just to make sure it isn't a video thing, did you run the system check?

ArcGIS Pro system requirements—ArcGIS Pro | ArcGIS for Desktop

And apparently emulating the video driver isn't the same as having the actual one (but I can't put my hands on the link)
