import failed - the data is located too far ?

LahmerBelkacem

Hi all !

I have a problem with importing DEM file and osm file together in the same project , i have a DEM file and osm file geolocated perfectly , but when i want to import theme into CityEngine projet i get this error

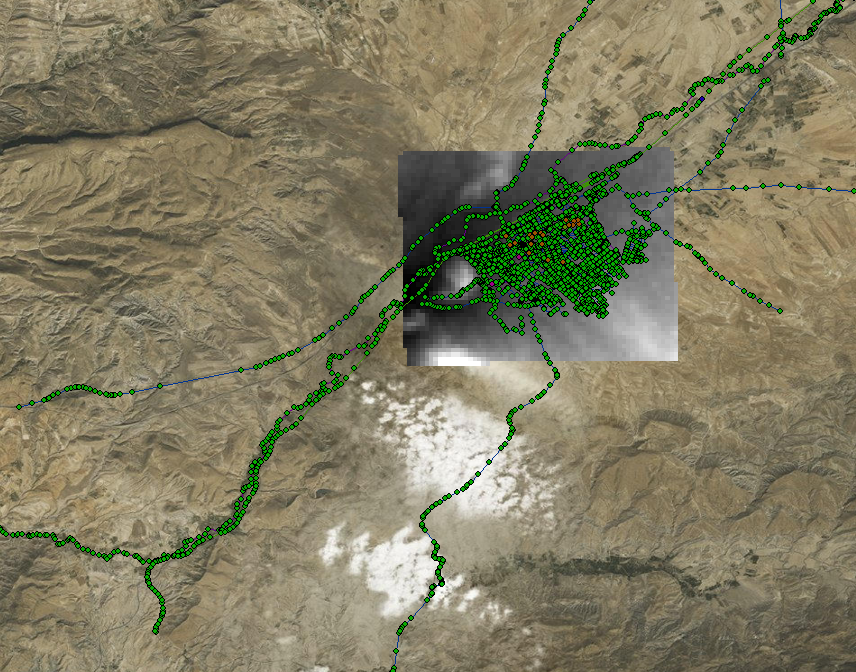

but the files are imported correctly in arcmap , so what's the problem? and how i can fix it ??

Find more posts tagged with

Accepted answers

ThomasFuchs

Hello Lahmer Belkacem

Thank you for the data. I had a look at the DEM TIF you provided.

The issue is, that it uses a geographical coordinate system for georeferencing.

Unfortunately CityEngine only supports Cartesian coordinate systems for terrain layers.

Please export the DEM again using "WGS 1984 UTM Zone 31N" coordinates (same as OSM file) for georeferencing.

City Engine Help: Importing Georeferenced Data

"No reprojection nor rotation is applied to image data on import. The image's coordinate system is used only as reference system for location, extent and unit (translate and scale transformation) for the image data during import. It is therefore important to have image data ready in the target coordinate system before importing into CityEngine."

Thomas F

All comments

ThomasFuchs

Hello Lahmer Belkacem

Thank you for the data. I had a look at the DEM TIF you provided.

The issue is, that it uses a geographical coordinate system for georeferencing.

Unfortunately CityEngine only supports Cartesian coordinate systems for terrain layers.

Please export the DEM again using "WGS 1984 UTM Zone 31N" coordinates (same as OSM file) for georeferencing.

City Engine Help: Importing Georeferenced Data

Thomas F

LahmerBelkacem

here are the files

http://www.filedropper.com/newfolder_108

LahmerBelkacem

YES both defined coordinate system

MelitaKennedy

I have only a tiny bit of knowledge about CityEngine, but some general ideas about coordinate systems. Does the DEM have a defined coordinate system? There are ways that it could overlay in ArcMap without a coordinate system, but not work in CityEngine. What is the DEM's coordinate system?

Melita
