Raster Features not Retained After Clip

Question

Hello,

I have been trying to clip a habitat quality raster to a county boundary, however every time I attempt this the output generates a different raster than the one I choose. None of the details or features of the original raster are included.

I have tried to use extract by mask tool and clip in data management, however they both give me the same outputs.

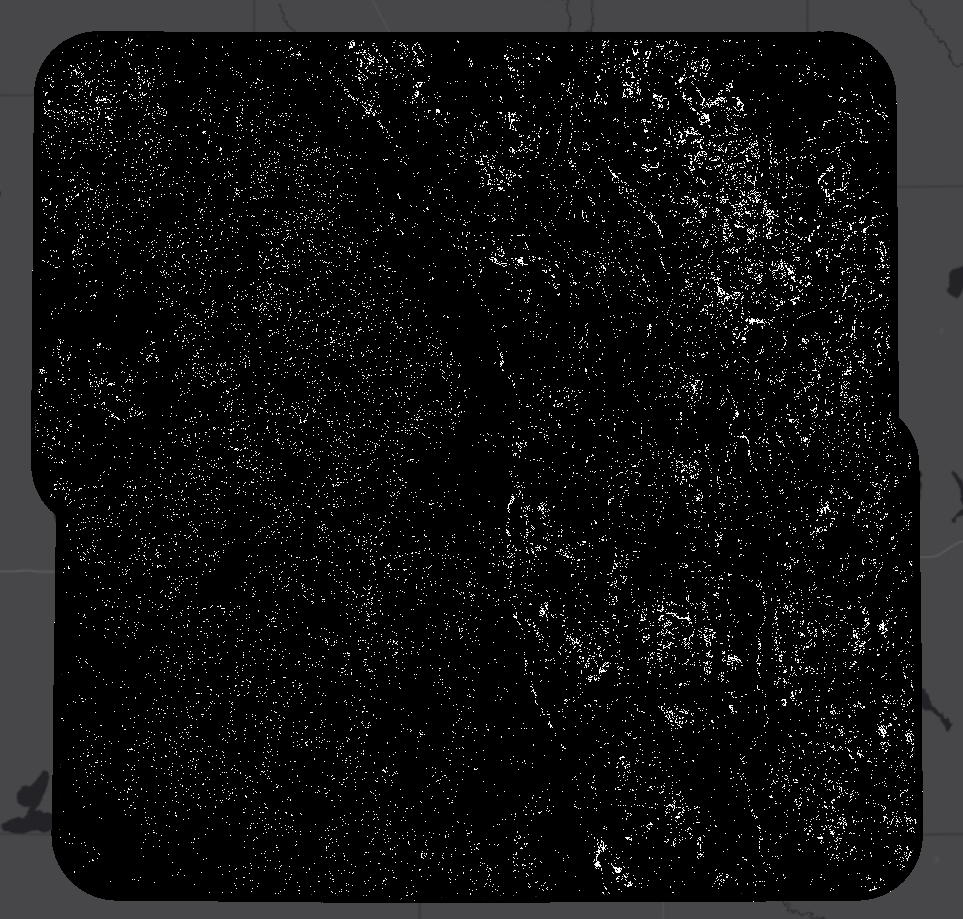

This is the raster I want to clip:

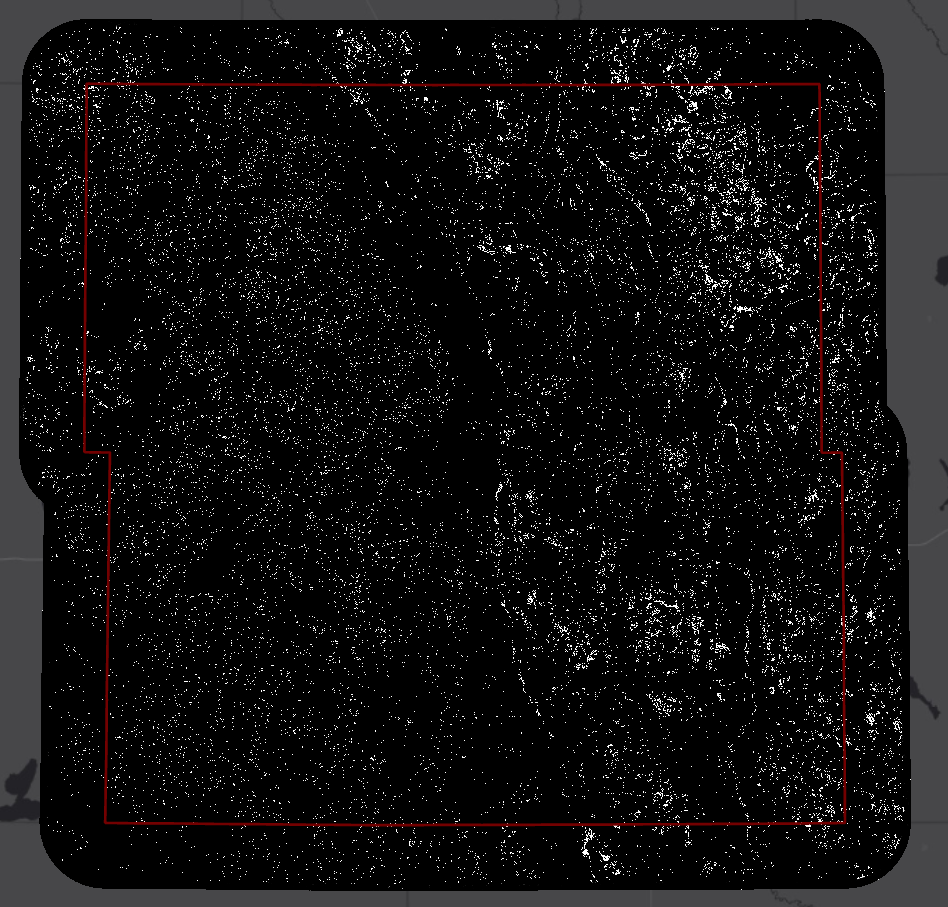

This is the feature I am using to clip the raster:

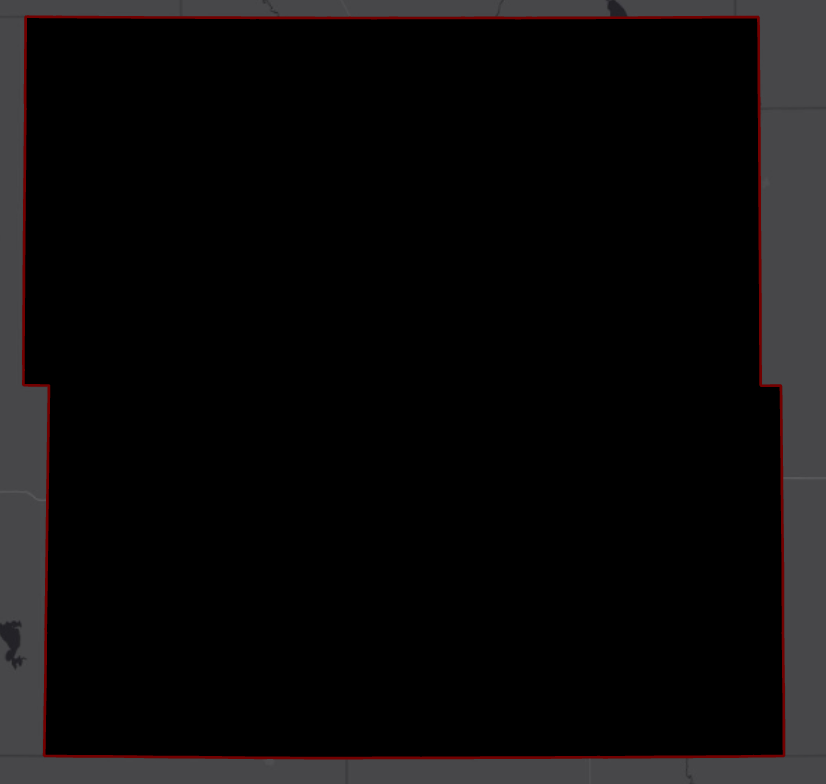

This is the output after the clip tool is executed:

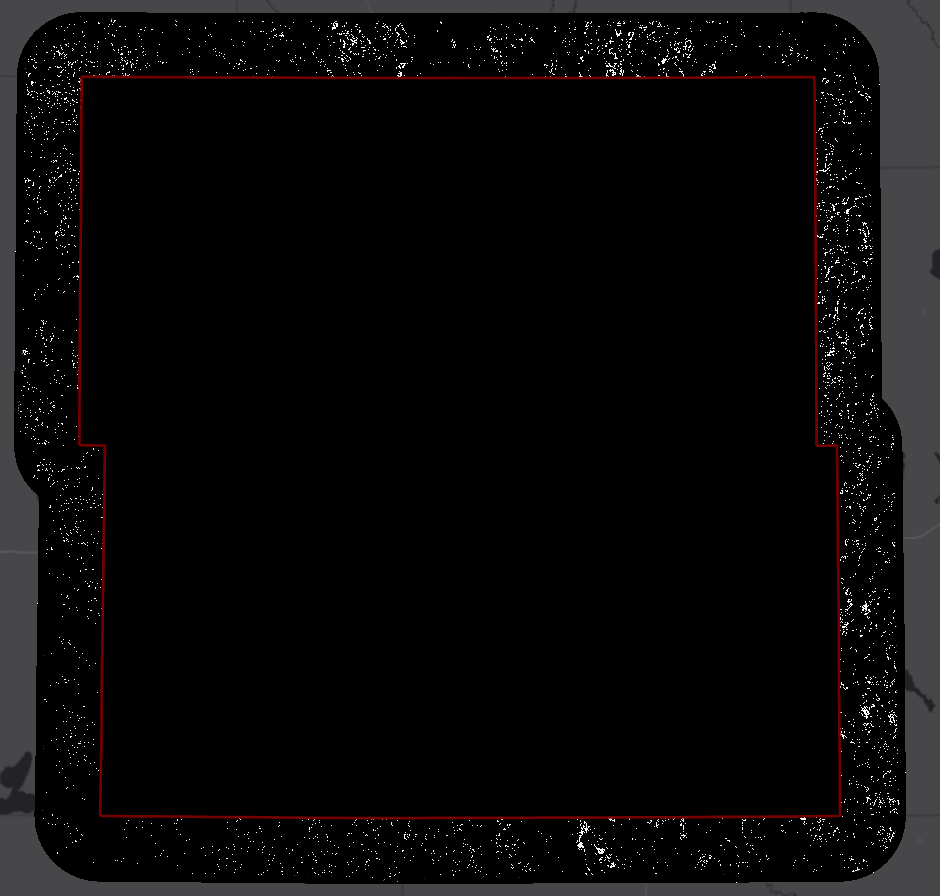

As you can see, the clipped raster looks nothing like my original raster:

How can I clip my raster to retain its details in the output result?

Thank you!

- Nadia Noori

NadiaNoori1 · Answer

Thank you for your comment! I used the calculate statistics tool and was able to retrieve the values from the original raster.

JakeSkinner · Answer

You most likely will have to calculate statistics on the output raster.

DanPatterson_Retired · Answer

Compare the symbology of the two.  I suspect that it has changed and is masking the result.  To confirm, you can examine the statistics and even use the info tool to examine cell values
