How to add aerial oblique imagery to oriented imagery catalog?

Question

Hi all,

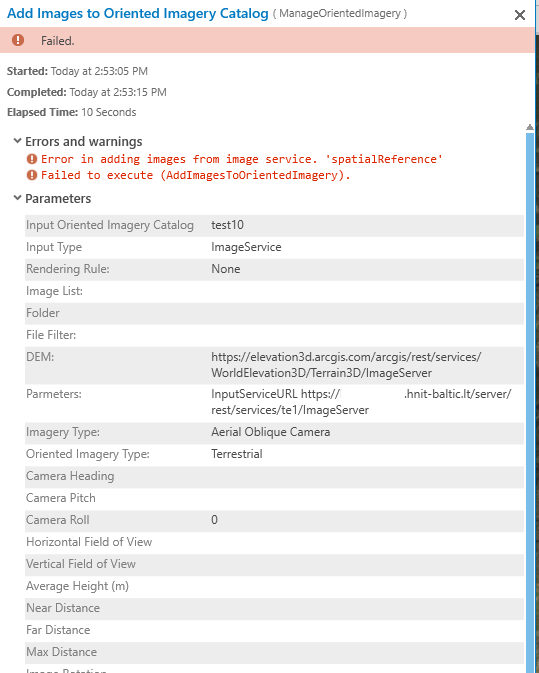

I've been trying to add oblique imagery mosaic service to an Oriented Imagery Catalog ("Add Images to Oriented Imagery Catalog"), but I keep getting an error messages stating that:

"Error in adding images from image service. 'spatialReference'"

The coordinate system for the image service is "LKS 1994 Lithuania TM" (3346). I've tried creating a mosaic with "WGS 1984 Web Mercator (3857)", but got the same error.

I've found a sample oblique service:

https://sampleserver6.arcgisonline.com/arcgis/rest/services/Oblique/WU_Oblique/ImageServer

which worked. It uses WGS 1984 Web Mercator (3857). Not sure what's wrong with my service...

Does anyone have any ideas what could be wrong here?

Thanks,

Tadas

RandallRebello · Answer

HI Tadas,

WOuld it be possible for me to access your imagery service?

You can send me a reply directly to rrebello at esri dot com

If not.. then some screenshots of the attribute table of the OIC or any other info you can share.

Thanks,

Randall

taber · Answer

Hi Randall,

Changing the script worked!

I was able to create the catalog, coverage features, coverage map and publish the catalog without any issues. However, when I add the catalog and select a location I get an error message "Failed to fetch" in ArcGIS Pro:

When I do the same in the sample Web App, I don't get any errors, but I only see a small sliver of the imagery:

Most of the imagery is blank. Any ideas what could be the problem?

Thank you,

Tadas

RandallRebello · Answer

Hi Tadas,

There is no work around available short of editing the code. Since this is a python based tool I can tell you where you can make the edit and it will work for you.

Follow these steps to make it work for you.

1. Locate this file. c:\Image_Mgmt_Workflows\OrientedImagery\Types\ImageService.py

2. Keep a backup of this file and open in a text editor.

3. Search for xf_1 and replace with xf_2. Make sure you keep the it is of lower case like in the ICS data.

4. Save the script.

5. Restart ArcGIS Pro.

We are working on a fix where the program will automatically detect which xform will have the spatial reference info.

Sorry for the inconvenience.

If you have any other issues regarding this or any other aspect of the oriented imagery GPTool do not hesitate to get in touch.

Thanks

Randall
