ArcGIS Pro 2.5: adding subtypes for utility network device feature class ends up with error,

JamalNUMAN

ArcGIS Pro 2.5: adding subtypes for utility network device feature class ends up with error,

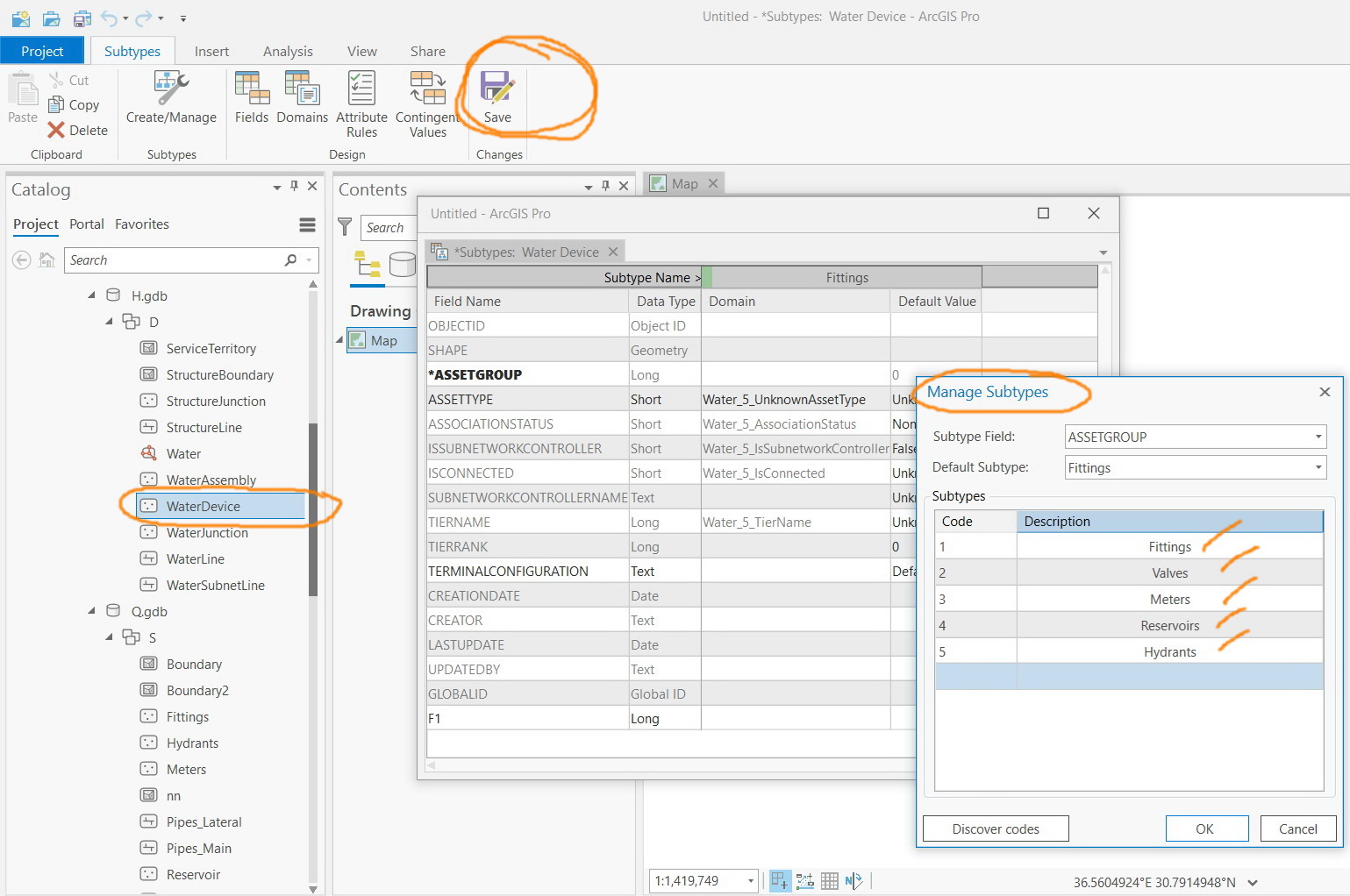

I couldn’t figure out why adding subtypes for utility network device feature class ends up with errors:

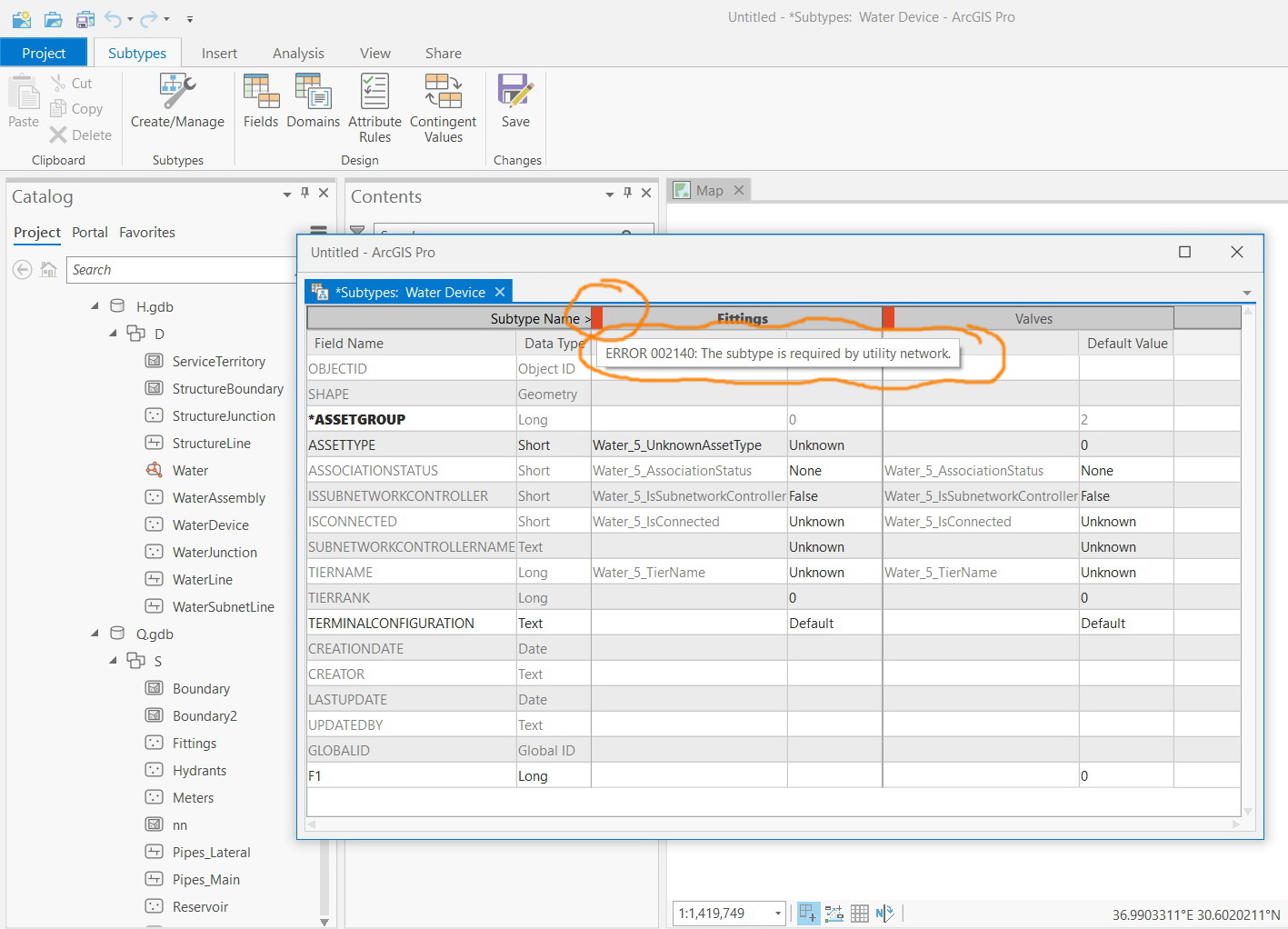

-The subtype is required by utility networks

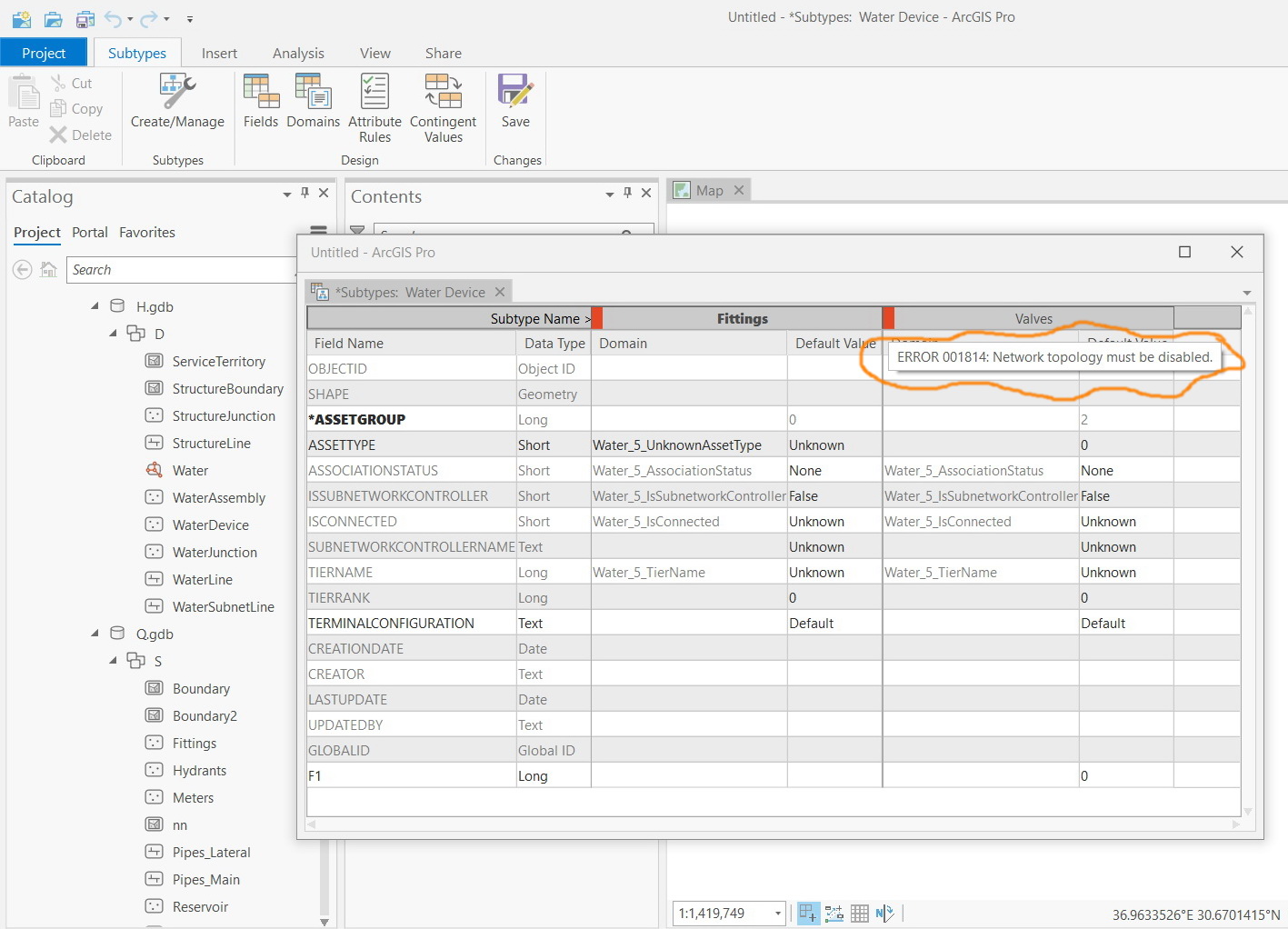

-Network topology must be disabled



What could be the issue here?

MelissaJarman

This topic would be a good form of reference for you - Utility network management tasks

The UN has an additive model for domains and subtypes. If you need to make changes to existing subtypes or domains that are being used on the ASSETGROUP and ASSETTYPE fields for network classes you will have to use the Utility Network Package Tools to create asset packages and start fresh with a new UN.

Utility Network Package Tools | ArcGIS Solutions

Very similar to this bug as well.

BUG-000115603: When trying to remove a subtype from a feature class..
