ArcGISLocalFeatureLayer rendering issue 10.2.4

MichaelKnight

Hi Guys,

I am trying to utilize the editing features of ArcGISLocalFeatureLayer. My code is currently all working correctly but I am getting rendering issues when trying to add certain geometries to the underlying .mpk

However if I view this layer using ArcGISLocalDynamicMapServiceLayer the rendering issue goes away. However because this layer does not allow editing I need to use ArcGISLocalFeatureLayer

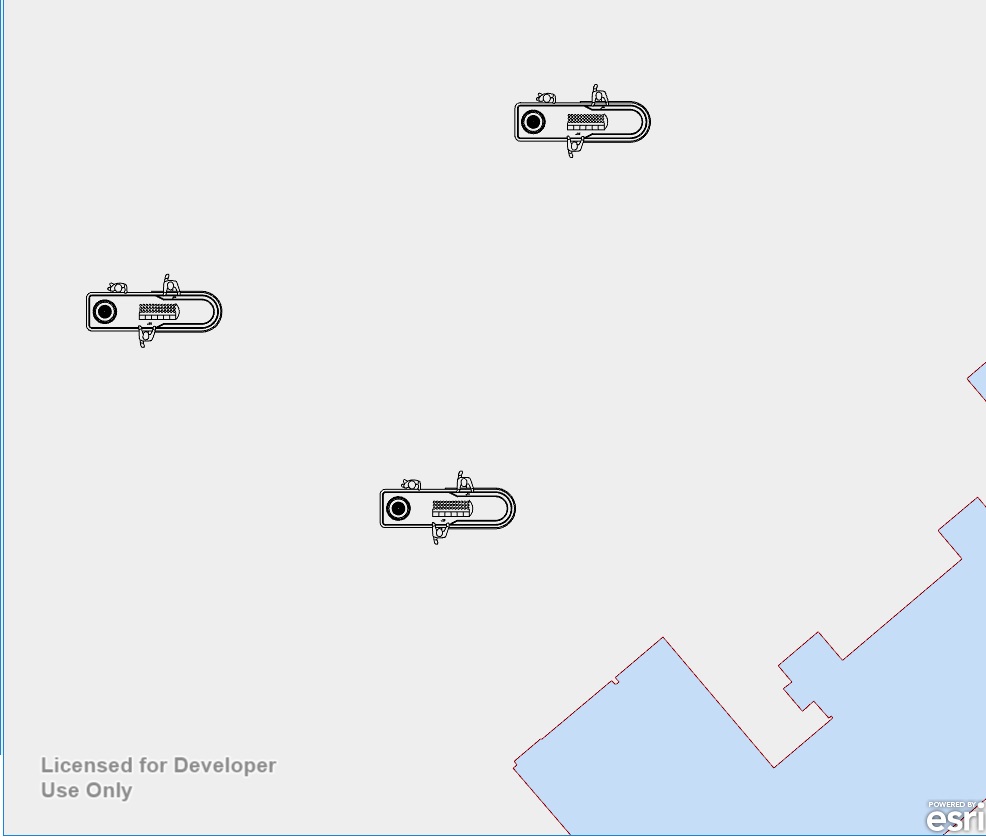

So this code produces a correctly rendering pair of layers:

layer = new ArcGISLocalDynamicMapServiceLayer("C:\\synergyii\\gisdata\\All Floors.mpk");
map.getLayers().add(layer);
layer = new ArcGISLocalDynamicMapServiceLayer("C:\\synergyii\\gisdata\\AdvancedGraphic-1471274891125.mpk");
map.getLayers().add(layer);

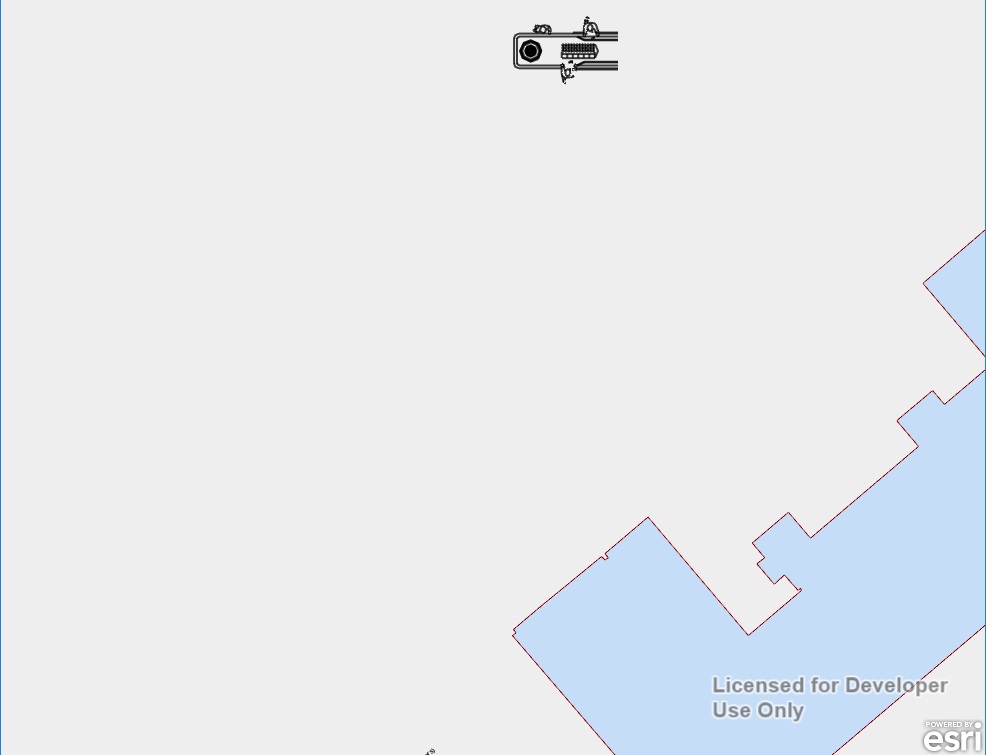

This code produces an incorrectly rendering pair of layers:

layer = new ArcGISLocalDynamicMapServiceLayer("C:\\synergyii\\gisdata\\All Floors.mpk");
map.getLayers().add(layer);
layer = new ArcGISLocalFeatureLayer("C:\\synergyii\\gisdata\\AdvancedGraphic-1471274891125.mpk", 0, true, RenderingMode.DYNAMIC);
map.getLayers().add(layer);

As you can see only one geometry is actually showing here and its incomplete. If you pan and zoom around the map the rendering changes each time.

Does anyone have any ideas why the ArcGISLocalFeatureLayer is giving me rendering issues?

nita14

Michael,

You have to set maximum records returned property for feature layer. You are trying to insert  almost 3 000 rows at a single save button click. Please be aware that FeatureService returns only 1000 features by default. I just added the following code featureLayer.setMaximumRecords(100_000); and it works just fine.

However, I suggest you consider generalize input shapes you are adding - Generalize or Dissolve Geoporocessing tool - should be just fine. The app performance will boost.

As for 1000 features limit, this constraint was removed in the newer ArcGIS for Server releases, However, ArcGIS Runtime 10.2.4 relies on ArcGIS for Server 10.2.2. You should look forward to see 'Quartz' release, the issue should not be present since then.

Hope this helps,

Adam
