Apply Asset Package Error: Valid Paths are only valid for 3 or 4 terminal configurations

Question

Hi,

I came across this error when trying to apply an Asset Package to an Enterprise Utility Network Geodatabase"

Error: Junction Pillar -  Valid Paths are only valid for 3 or 4 terminal configurations error

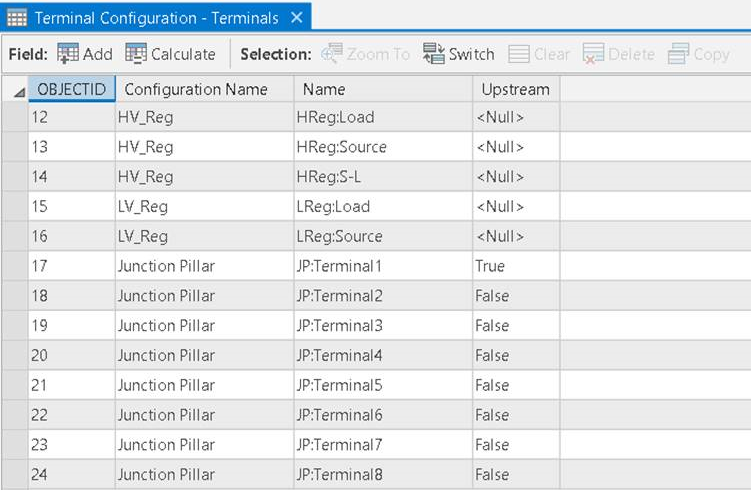

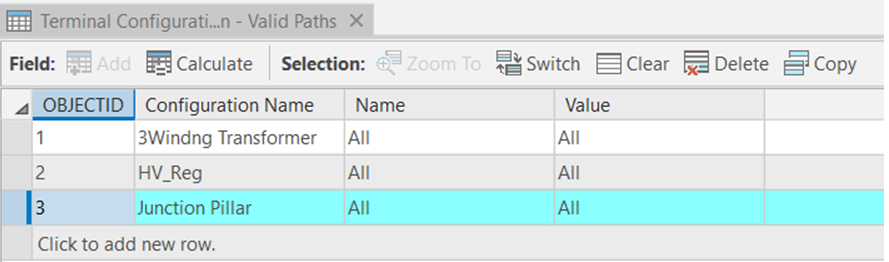

We have defined Junction Pillar features with 8 terminals in the data model. In the Asset Package B_tables, we have the 8 Junction Pillar terminals defined in the the B_TerminalConfiguration_Terminals table and valid paths defined in the B_TerminalConfiguartion_ValidPath table, as per below:

By removing the Junction Pillar entry out of the B_TerminalConfiguartion_ValidPath table, I was able to successfully apply the Asset Package to the Utility Network.

Question:

Why Valid Paths are only valid for 3 or 4 terminal configurations? (and not also for terminal configurations greater then 4?)

Thanks

Damien Pyne‌  - FYI

PaulLeBlanc1 · Accepted Answer

Add Terminal Configuration—Utility Network Toolbox | Documentation The asset package is enforcing this limitation in the utility network.

Based on your screenshot, you are only defining the "All" path which all terminal configurations support (along with "None"). What would you like to do with paths on an 8 terminal device?
