Convert Double to Integer (Arcade)

Syvertson

I am trying to do something that is probably simple, but in reviewing the Arcade functions, I didn't find the one that will do this. I created a new field as an integer, and I now want to move contents of another field into it using calculate field. The other field is a double field type (even though all should be whole numbers).

Find more posts tagged with

Accepted answers

XanderBakker

Hi syvertson ,

The error is telling you that you can't write the value "14000002735000" from a double field (storable range -2.2E308 to 1.8E308) to a long field that will only be able to hold values in the range from -2,147,483,648 to 2,147,483,647.

All comments

JoeBorgione

How did the original sql data find it's way to the fgdb?

Syvertson

This doesn't help, because I am already able to display the values correctly, my problem is the storage of extra digits after the decimal.

JoeBorgione

In ArcGIS Pro, right click on the feature class and choose fields. Find the field that has the PIN, and you'll see the word Numeric in the Number Format column. Click on the three dots and set 0 (zero) decimal places and then save it above. That just changes the display, not the underlying values.

Syvertson

Thanks Joe. Can't find a way to update that in Pro. In ArcMap it is a snap. BUT, I can't alter the new parcel fabric in ArcMap, only in ArcGIS Pro. See what I mean about all the "gotchas."

JoeBorgione

Take a look at ArcGIS field data types—ArcGIS Pro | Documentation . You might try adjusting the precision and/or scale for your PIN field, although that's just a WAG (wild a$$ guess) on my part.

Syvertson

The database is a sql database and the format of that filed is numeric 14 characters and no decimal. See below. Every table that is in this database uses the same format for parcel number. I never once had an issue with this in ArcMap. Even though I used double for the field type in the spatial databases, they always respected the format of no decimal point.

A better question that I have is "Why would the parcel dataset EVER need to add digits behind the decimal point?

Thanks for all of this help. I really do like the parcel fabric, and ArcGIS Pro, but I am always running into little "gotchas" like this that just cannot be explained.

XanderBakker

Hi Matthew Syvertson ,

What kind of link are you using to connect to the database? Maybe it is possible to correct the issue on the fly when linking to the other database.

I agree with jborgion that if is common to use text for this type of identifier if you can't store it in a long field and you will not apply any numeric calculations on it.

Syvertson

Yes. I have to be able to link to a database that uses this format, which is exactly the reason why it is a problem when you start adding digits behind the decimal point.

JoeBorgione

That's a problem for Parcels; our county uses a 14 character text string for them instead of making them numeric. Is there a specific reason you need them as a numeric? Double, long int, or otherwise?

Syvertson

Thanks Xander. I understand now, but I would then need to find a different way to handle the problem I was trying to solve. For some reason when I am storing 50290115605026 in the double field, ArcGIS Pro is adding extra digits behind the decimal point. See below:

How do I tell the database that I need to store only whole numbers that are larger than a "long" integer?

XanderBakker

Hi syvertson ,

Syvertson

OK.; This is exactly what I was trying to do. It must be something else going on. Here are some screen shots:

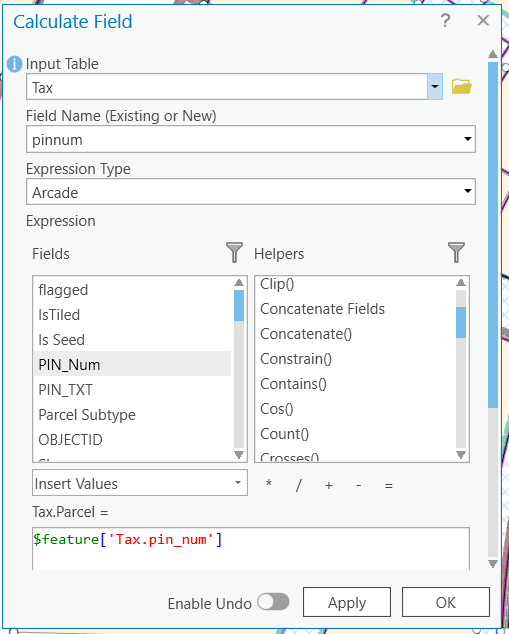

What I am trying to do:

Table structure:

Error messages:

Robert LeClair

Matthew - yes, you can do this with a simple Field Calculation using Arcade. In my graphic below, I have two fields Double (populated) and Integer (short integer type). I right clicked on the Int field, selected Calculate Field, and calculated the Integer field using $featue.Double (these are just my field names is all).

Hope this helps!
