Display values of mosaic data set

BenasPekarskis1

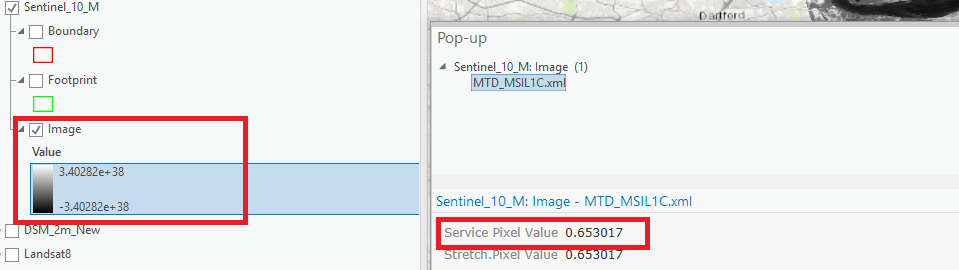

I have applied raster function to calculate NDVI for Sentinel 2.   The values of NDVI supposed to be in between -1 and  1. When I click to Identify the pixel value, I believe I get correct values, lets say 0.65, but in contents pane the values are displayed differently. See image.



Question:

How shall I set up symbology so it  displays correct values in Contents Pane?  In addition, because I use Raster Templates, it would be useful if I could incorporate this symbology into the Raster function.



Regards,

Ben

GuenterDoerffel

Benas,
did you create your own "RFT" to achieve this, or use an Esri-supplied one? We have quite a number of optimized ones, resulting in Legends like this:

if you want to create something like this yourself, see this post: Classified Raster - Legend issue   ... the recalss and attribute table process is what you are looking for.
If you want to use some of the ones we have developed, download this zip: https://www.arcgis.com/home/item.html?id=e6e1f20cb0374d28a6eed24f5c2ff51b and then open it, go to the folder ../Parameter/RasterFunction Templates and then analyze/use the one you need.

PLUS and you might also find this:
https://www.arcgis.com/home/group.html?id=69c72a55bb77411c83955d14bee680d8#overview
interesting!

Regards
Guenter
