Print widget (or service?) not including graphics

DirkVandervoort

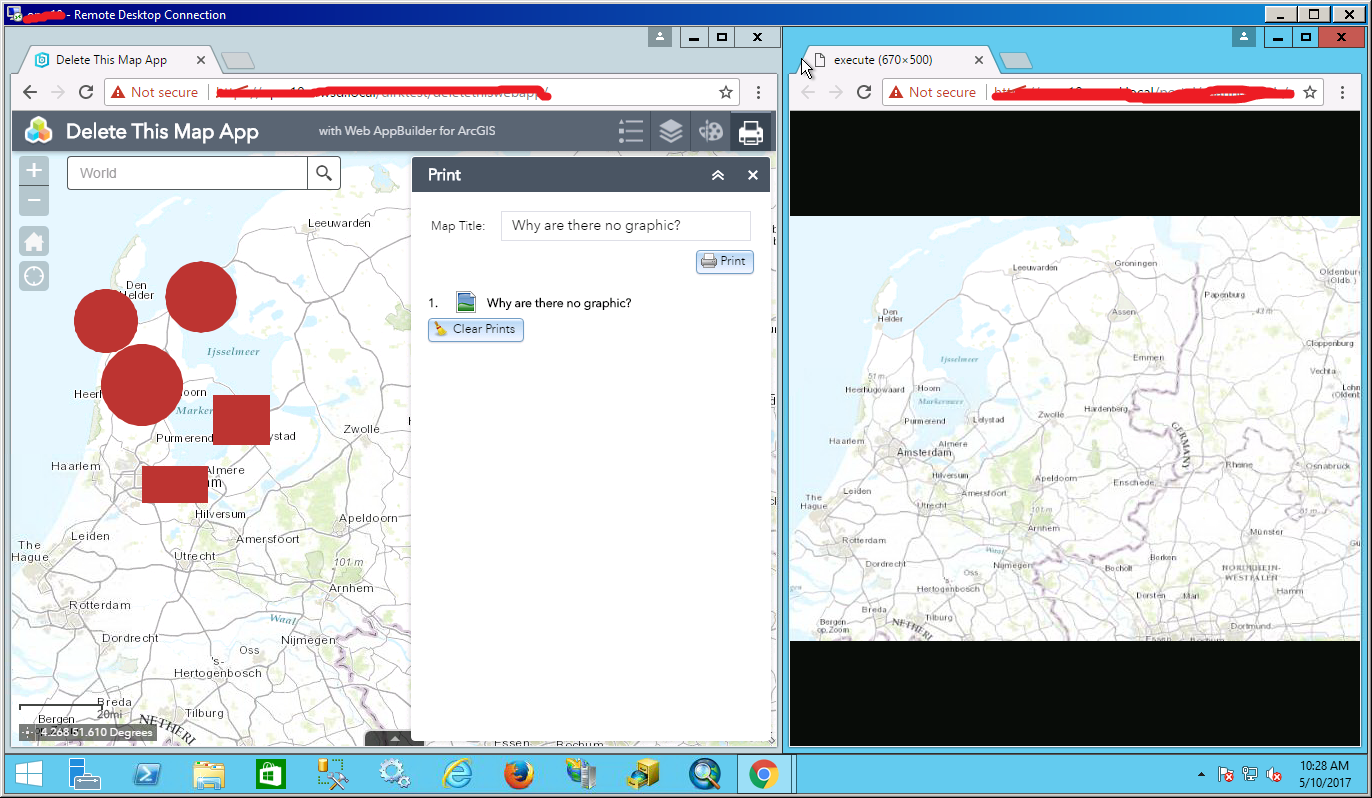

The pic below shows the issue: I have an app I configured in the WAB that includes a Draw widget and a Print widget. When I draw graphics on the map, then use the Print widget to generate output, the graphics that I drew are not included in the output.

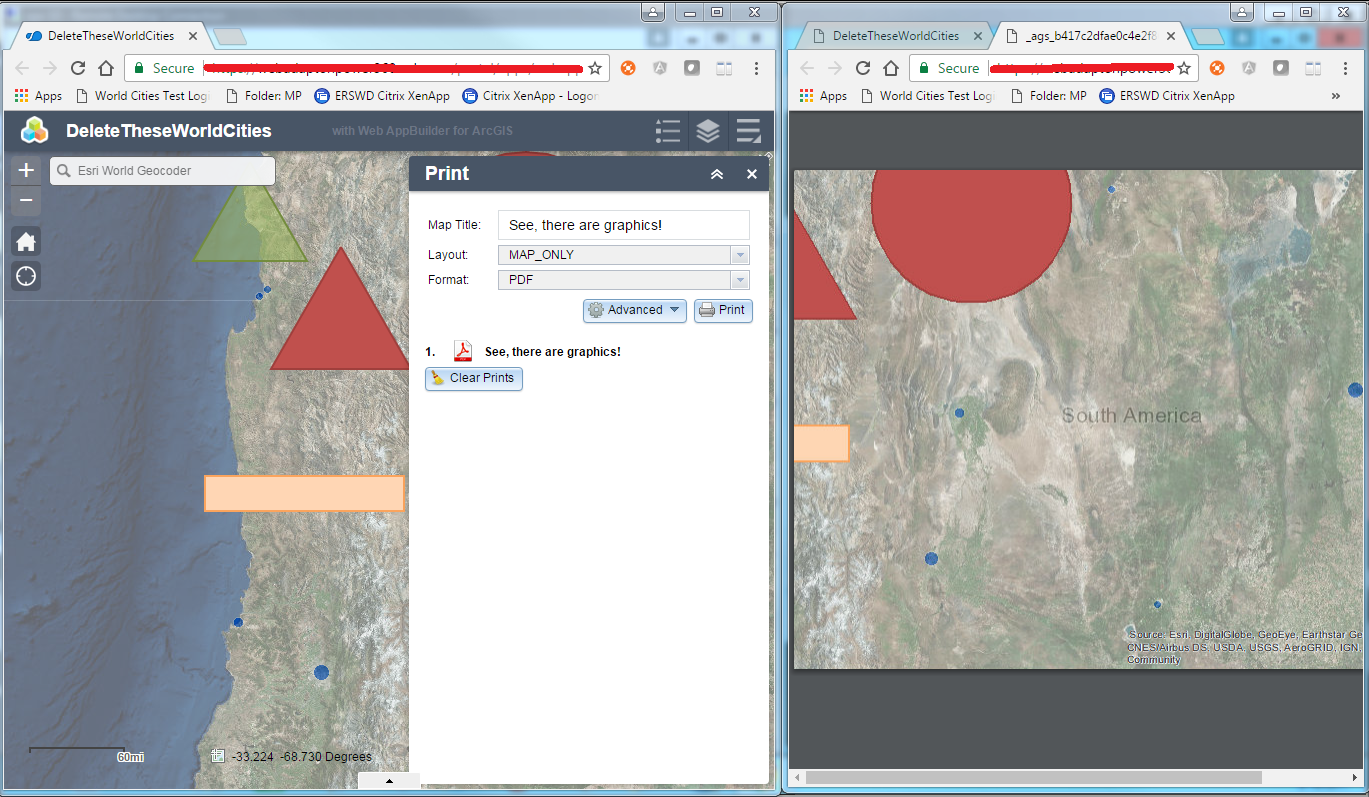

I verified that this is not a WAB issue. This example above is from a client site. The example below is hosted at Azure. Note that the graphics are included with the print output.

What's up with that?

Find more posts tagged with

Accepted answers

DirkVandervoort

Problem solved: I had the wrong URL for the print service. This works and solves both issues: https://webadaptor.mydomain.com/arcgis/rest/services/Utilities/PrintingTools/GPServer/Export%20Web%20Map%20Task

All comments

DirkVandervoort

Nope. I had the proxy set up correctly, so that's not it.

What's interesting/strange - although maybe not related - is that configuring the print widget at this particular site doesn't give me the option to specify the Default Format and the Default Layout.

Problem Site:

Operational Site:

RobertScheitlin__GISP

Dirk,

Do you have a proxy setup and configured in your WAB app. When you have graphics on the map the exportwebmapjson can get quite large and require a proxy to use POST instead of GET.
