JSAPI 4.4 PopupTemplate Default Content

SamDrummond3

I'm having trouble setting a popup template for a feature layer.  Based on the documentation I expected to be able define a PopupTemplate object, define the fieldInfos property and leave the content property null resulting in the popup displaying the fieldInfos as a table as documented here:

• fields - Array of fieldInfos objects. If fieldInfos is not set directly within the content property, the popup will display whatever is set in the PopupTemplate.fieldInfos property. This must be defined using the fields popup element specification table.

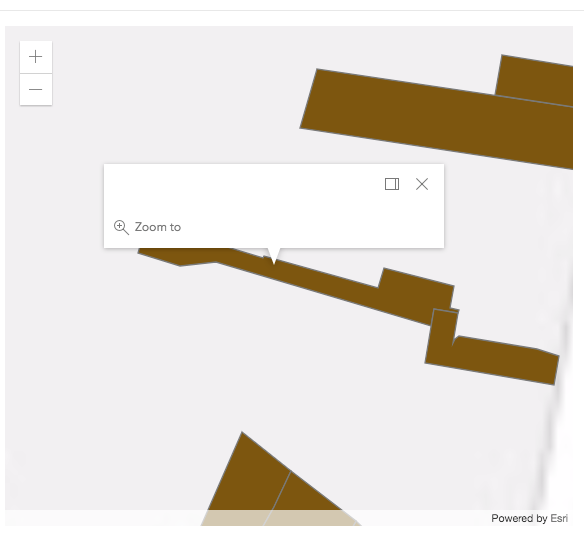

However, when I do this, the popup appears blanks:

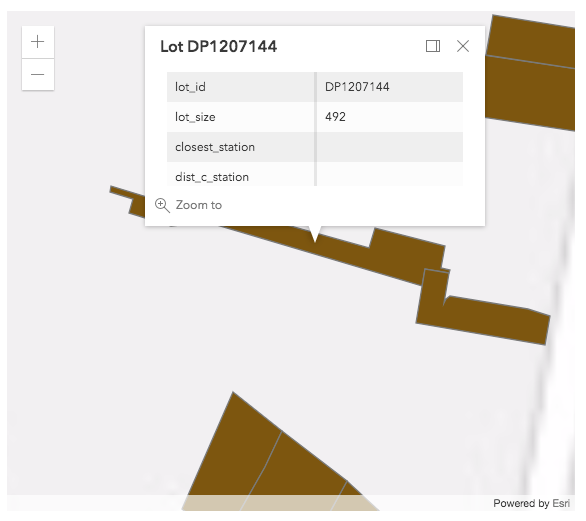

I have to manually set the content property as follows to get the populate:

var popupTemplate = new PopupTemplate(this._config.popupInfo);

popupTemplate.content = [{

   type:"fields",

   fieldInfos:popupTemplate.fieldInfos

}]

this._featureLayer.outFields = ["*"];

this._featureLayer.popupTemplate = popupTemplate;

return this._featureLayer;

Am I doing something wrong or is the documentation incorrect?

rscheitlin

Sam,

   I think that the documentation could explain this a little better. You currently have to define the content as type fields if you are only providing the fieldInfos (lines 4-6).

&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; <SPAN class="comment token">// autocasts as new PopupTemplate()</SPAN>
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; <SPAN class="keyword token">var</SPAN> template <SPAN class="operator token">=</SPAN> <SPAN class="punctuation token">{</SPAN>
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; title<SPAN class="punctuation token">:</SPAN> <SPAN class="string token">"Marriage in NY, Zip Code: {ZIP}"</SPAN><SPAN class="punctuation token">,</SPAN>
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; content<SPAN class="punctuation token">:</SPAN> <SPAN class="punctuation token">[</SPAN><SPAN class="punctuation token">{</SPAN>
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; type<SPAN class="punctuation token">:</SPAN><SPAN class="string token">"fields"</SPAN>
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; <SPAN class="punctuation token">}</SPAN><SPAN class="punctuation token">]</SPAN><SPAN class="punctuation token">,</SPAN>
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; fieldInfos<SPAN class="punctuation token">:</SPAN> <SPAN class="punctuation token">[</SPAN><SPAN class="punctuation token">{</SPAN>
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; fieldName<SPAN class="punctuation token">:</SPAN> <SPAN class="string token">"MARRIED_CY"</SPAN><SPAN class="punctuation token">,</SPAN>
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; format<SPAN class="punctuation token">:</SPAN> <SPAN class="punctuation token">{</SPAN>
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; digitSeparator<SPAN class="punctuation token">:</SPAN> <SPAN class="keyword token">true</SPAN><SPAN class="punctuation token">,</SPAN> <SPAN class="comment token">// Use a comma separator for large numbers</SPAN>
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; places<SPAN class="punctuation token">:</SPAN> <SPAN class="number token">0</SPAN> <SPAN class="comment token">// Sets the number of decimal places to 0 and rounds up</SPAN>
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; <SPAN class="punctuation token">}</SPAN>
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; <SPAN class="punctuation token">}</SPAN><SPAN class="punctuation token">,</SPAN> <SPAN class="punctuation token">{</SPAN>
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; fieldName<SPAN class="punctuation token">:</SPAN> <SPAN class="string token">"NEVMARR_CY"</SPAN><SPAN class="punctuation token">,</SPAN>
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; format<SPAN class="punctuation token">:</SPAN> <SPAN class="punctuation token">{</SPAN>
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; digitSeparator<SPAN class="punctuation token">:</SPAN> <SPAN class="keyword token">true</SPAN><SPAN class="punctuation token">,</SPAN>
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; places<SPAN class="punctuation token">:</SPAN> <SPAN class="number token">0</SPAN>
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; <SPAN class="punctuation token">}</SPAN>
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; <SPAN class="punctuation token">}</SPAN><SPAN class="punctuation token">,</SPAN> <SPAN class="punctuation token">{</SPAN>
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; fieldName<SPAN class="punctuation token">:</SPAN> <SPAN class="string token">"DIVORCD_CY"</SPAN><SPAN class="punctuation token">,</SPAN>
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; format<SPAN class="punctuation token">:</SPAN> <SPAN class="punctuation token">{</SPAN>
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; digitSeparator<SPAN class="punctuation token">:</SPAN> <SPAN class="keyword token">true</SPAN><SPAN class="punctuation token">,</SPAN>
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; places<SPAN class="punctuation token">:</SPAN> <SPAN class="number token">0</SPAN>
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; <SPAN class="punctuation token">}</SPAN>
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; <SPAN class="punctuation token">}</SPAN><SPAN class="punctuation token">]</SPAN>
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; <SPAN class="punctuation token">}</SPAN><SPAN class="punctuation token">;</SPAN><SPAN class="line-numbers-rows"><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN></SPAN>
