Pipeline Isolation Subnetwork Confusion

EdwardBlair

All -

Sorry if I am missing something simple here, but when I try to update a pipeline isolation subnetwork I get an error that process encountered an "invalid device" when I'm certain that device is present in the subnetwork definition.

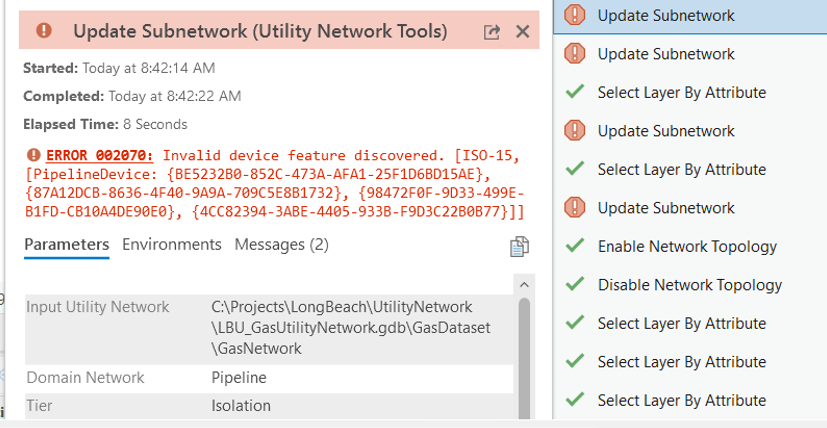

Here are the details.  First, here's the error message:

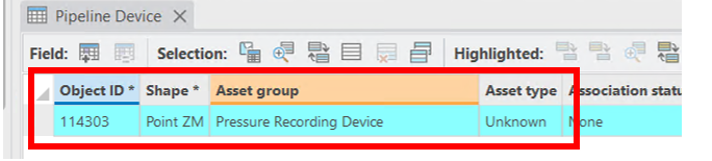

I then search for the offending features in the PipelineDevice class using the GlobalIDs listed in the error.  Here's what I get (why there are 5 GlobalID values in the error and only one feature returned on the query is another question... but one step at a time.)

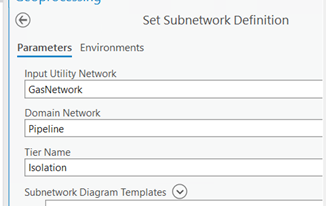

The offending feature's Asset Group is "Pressure Recording Device" and Asset Type is "Unknown".   So I check the subnetwork definition and see this:



The Asset Group/Asset Type seems to be present in the Isolation tier subnetwork definition.

Any pointers on what I am missing would be greatly appreciated.

Thanks,

Ed



























EdwardBlair

Sorry Mike.... I'm an idiot.   I had my query on GlobalIDs screwed up.   The issue was not with the Pressure Recording device, but rather with Test points... which were *not* in the subnetwork definition.

Thanks a bunch for your reply.   Sometimes it takes saying the problem out load, or wring it out, to actually fix it.

Ed
