Definition Query GUI - How to work?

BlakeMorrison

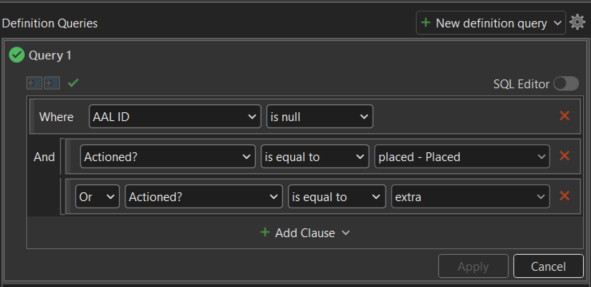

I feel like I used to be able to reach this state of definition query via the defintion query GUI. Nowadays I have to type that as SQL. I cannot find a way to produce "X and (Y or Z)" without SQL. If I edit that clause in the GUI, it will break.

Can anyone enlighten me as to what I'm doing wrong if anything?

Find more posts tagged with

Accepted answers

BlakeMorrison

Ok, I've stumbled through this. There are a couple things I was missing/misunderstanding.

The setting (cog icon) in the top right of the defintiion query allows changing what fields/values are displayed. Maybe default values changed here.
The indentation is actually "grouping" as opposed to a form of visual parentheses which is how I was imagining it working. Grouping means more than one..... You can't do the indent thing unless you have multiple clauses selected. That's what I was missing.

All comments

abaldenweck@blm.gov_BLM_EGIS

If you'd like an improvement to the editor, I'd upvote this Idea: Consolidate Select by Attribute Expression Modes

CalvinHarmin

I wonder if there is a similar SQL gui editor like this from another software that is more obvious that could be used as an example of how this menu could be a little more user-friendly?

I also wish when using 'Not equal to' there was a checkbox to include (or Is Null) rather than making another duplicate line for that purpose. I have a lot of use cases where I'm specifying, essentially, "all values except this one" and I want that to include Nulls. If you don't specify that as an OR statement, Nulls won't be included.

BlakeMorrison

Ok, I've stumbled through this. There are a couple things I was missing/misunderstanding.

The setting (cog icon) in the top right of the defintiion query allows changing what fields/values are displayed. Maybe default values changed here.
The indentation is actually "grouping" as opposed to a form of visual parentheses which is how I was imagining it working. Grouping means more than one..... You can't do the indent thing unless you have multiple clauses selected. That's what I was missing.
