Issues when consuming a published Geoprocessing Tool created from python toolbox

RViruet

Hi all! I developed a python toolbox for ArcGIS Pro (.pyt) which contains a tool that will generate one of three reports. The tool is supposed to perform queries, process the queried data and finally generate the report selected by the user. This tool has several optional parameters that can be selected by the user but only one required parameter - Report Type.

When I run this tool in ArcGIS pro, all three possible reports are generated successfully, and the tool returns the path to the generated file as output, no problems there.

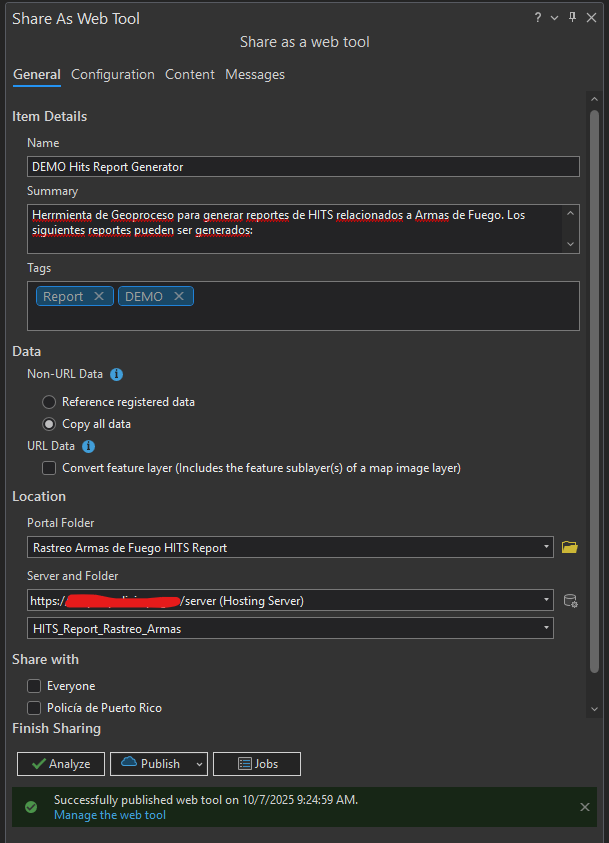

My issues arise once I publish this tool as a Geoprocessing Service. To publish the tool, I right click on one of the successful runs from the history tab, and select Share As > Share Web Tool. I fill out the relevant information, analyze then publish.

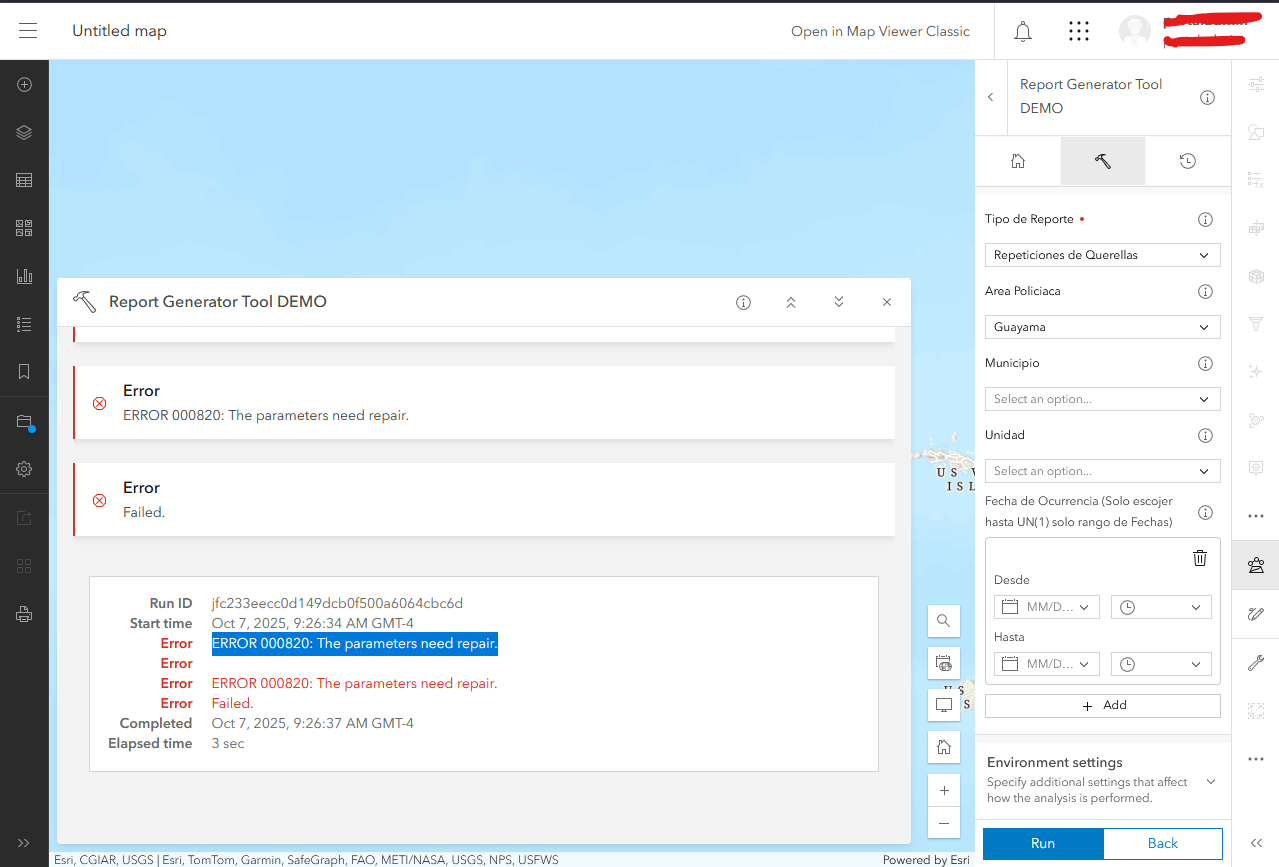

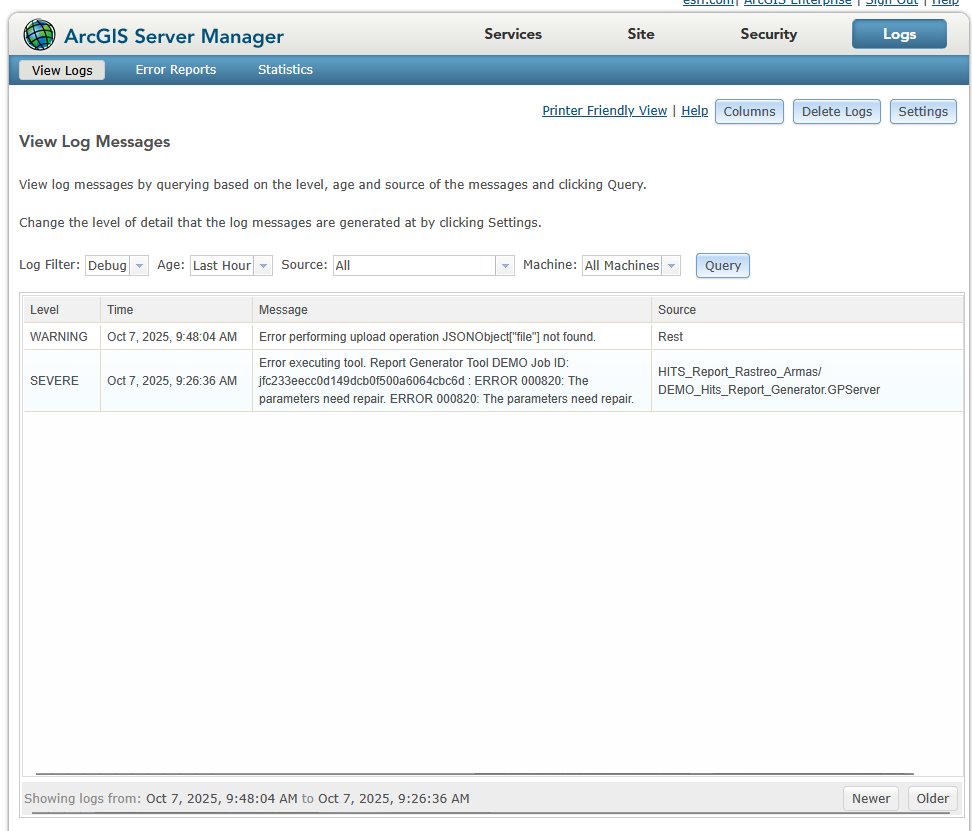

The tool gets published successfully. Once I try to execute the published tool (In my case, I'm trying it from the map viewer) I'm getting an error message saying "ERROR 000820: The parameters need repair." - which is weird because the tool was ran in ArcGIS Pro, then published, so I'd think if there were any problems with the parameters, it should have raise errors prior to this point. Server Manager logs are not helpful either.

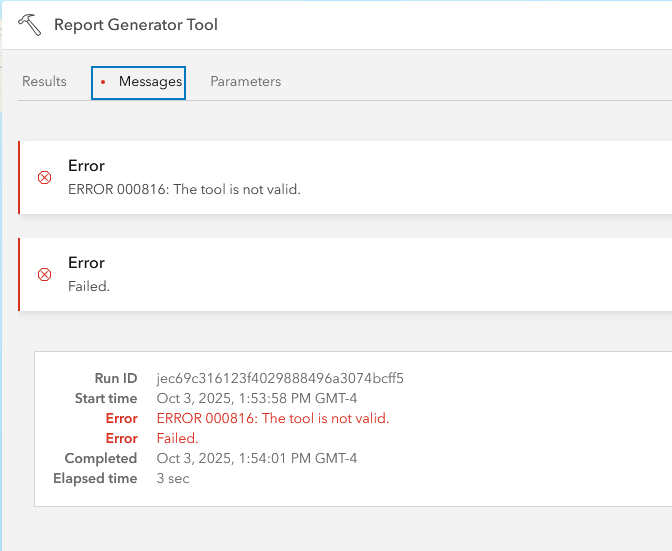

Originally I tried publishing this tool from ArcGIS Pro 3.5.2. When I did I got the error message "The tool Is not valid." I asked around the office and a coworker mentioned I should try publishing the tool from an earlier version, since the version of ArcGIS Enterprise where the tool being published to is 11.3. I started getting the "Parameter needs repair" message when I downgraded and published from ArcGIS Pro 3.4.2, and when downgraded and published again from ArcGIS Pro 3.3.7.

Finally and worth mentinong, this script makes use of the python-docx library, which I installed both in my local machine AND in the server where the tool gets published to. (Clone python environment, activate cloned environment, pip install python-docx)

Attached to this post I include a shortened version of the tool I'm trying to use once published. I have omitted all queries normally performed by this tool and have focused the code to just generate the report(s).

Any information that may help me troubleshoot this issue is greatly appreciated, thanks!

Sample Code - Report Generator Toolbox.zip

Find more posts tagged with

Accepted answers

RViruet

Update to this issue: I tried publishing the base example from another PC and it works. I think the dependency I added on my cloned environment was to blame for all the issues I experienced.

All comments

SerjStol

Did you try to navigate to the ArcGIS Server arcgisinputs (i think) folder where the published GP Service files are placed and inspect the pyt file there? When you publish there are some funky stuff that happen to the variables and parameters that may need guarding against.

RViruet

Update to this issue: I tried publishing the base example from another PC and it works. I think the dependency I added on my cloned environment was to blame for all the issues I experienced.

RViruet

Hi, thanks again for the prompt response! I'm going to give your suggestion s shot, and will get back you you.

BTW: my tool is included inside a python toolbox (.pyt) file and not the toolbox file (.atbx) - just thought I'd mention it.

EDIT:

No dice.

Thanks for all your help still 🙂

Hayden Welch

That's incredibly odd. Especially since the parameter model should be rebuilt when the toolbox/tool is reloaded. The getParameterInfo method is run on each tool open. That function is used to generate a tool.content json file that maintains the tool parameters and relationships. The Parameters Need Repair error is raised whenever that tool.content file does not match the parameters that the tool class expects.

A really hacky workaround would be to rename the tool class to something like ReportGeneratorTool_r2 so a new cache is created with a separate model file

Here's an example of the structure of a model tool that lives in a .atbx:

The model.content files have the parameters and their names, the .model is just a file that contains the node relations and flow.

RViruet

Hello, thank you for your quick reply and suggestion! I have published a new tool with the following source code. I have removed all parameters except the output parameter and made the output a simple string. After publishing the geoprocessing tool I have restarted the server (Now using a single machine installation to do my tests) in order to clear the cache as suggested. I'm still having the same issue where once published and executed, I get the error saying that the parameter needs repair 🫠

# -*- coding: utf-8 -*-

from uuid import uuid4

import arcpy
import os
import pandas

cwd = os.path.dirname(os.path.realpath(__file__))

class Toolbox:
    def __init__(self):
        """Define the toolbox (the name of the toolbox is the name of the
        .pyt file)."""
        self.label = "Report Generator Toolbox"
        self.alias = "report_generator_toolbox"

        # List of tool classes associated with this toolbox
        self.tools = [ReportGeneratorTool]


class ReportGeneratorTool:
    def __init__(self):
        """Define the tool (tool name is the name of the class)."""
        self.label = "Report Generator Tool SIMPLIFIED"
        self.description = "SIMPLIFIED: Herramienta para la generación de reporte(s) HITS a Armas"

        self.area_values = {"Bayamon": "Bayamon", "Guayama": "Guayama", "Humacao": "Humacao"}
        self.municipality_values = {"Sanjuan": "SANJUAN", "Carolina": "CAROLINA", "Guaynabo": "GUAYNABO"}
        self.pol_unit_values = {"Investigaciones De Licencias De Armas": "INVESTIGACIONES DE LICENCIAS DE ARMAS", "Policia Municipal": "POLICIA MUNICIPAL", "Violencia Domestica": "VIOLENCIA DOMESTICA"}

    def getParameterInfo(self):
        """Define the tool parameters."""
        # Output Parameter
        # output = arcpy.Parameter(displayName="Output", name="output", datatype="DEFile",
        #                          parameterType="Derived", direction="Output")

        output = arcpy.Parameter(displayName="Output", name="output", datatype="GPString",
                                 parameterType="Derived", direction="Output")

        return [output]

        # return [report_type, area_param, municipality_param, police_unit_param, date_occurrence_param, output]

    def isLicensed(self):
        """Set whether the tool is licensed to execute."""
        return True

    def updateParameters(self, parameters):
        """Modify the values and properties of parameters before internal
        validation is performed.  This method is called whenever a parameter
        has been changed."""

        return

    def updateMessages(self, parameters):
        """Modify the messages created by internal validation for each tool
        parameter. This method is called after internal validation."""

        return

    def execute(self, parameters, messages):
        """The source code of the tool."""

        # Define the WHERE Clause that will be used for generating reports
        where_clause = ""
        where_holder = []

        # Hacky way to obtain a chain of ANDS for the where_clause expression
        # if (parameters[1].value is not None):
        #     where_holder.append(f"AreaGuns = '{self.area_values[parameters[1].value]}'")
        # if (parameters[2].value is not None):
        #     where_holder.append(f"MunicipioGuns = '{self.municipality_values[parameters[2].value]}'")
        # if (parameters[3].value is not None):
        #     where_holder.append(f"UnidadArma = '{self.pol_unit_values[parameters[3].value]}'")
        # if(parameters[4].value is not None and len(parameters[4].value[0]) == 2):
        #     start_date, end_date = parameters[4].value[0]
        #     date_clause = f"FechaArma >= TIMESTAMP'{start_date}' AND FechaArma <= TIMESTAMP'{end_date}'"
        #     where_holder.append(date_clause)
        #     del start_date, end_date, date_clause
        #
        # # NOTE: Include in where clause to ignore records where num_caso_query is NULL
        #
        # # NOTE: If this where clause changes, make sure to also change it when evaluating where clause
        # #  to be used for relation
        # if (len(where_holder) > 0):
        #     where_clause = " AND ".join(where_holder)
        #     where_clause += " AND num_caso_query IS NOT NULL"
        #
        # if (where_clause == ""):
        #     where_clause = "num_caso_query IS NOT NULL"

        # out_file = self.report_generator(where_clause, parameters[0].value)
        out_file = self.report_generator("", "Relaciones de Eventos")

        if(out_file):
            parameters[0].value = out_file

        return

    def postExecute(self, parameters):
        """This method takes place after outputs are processed and
        added to the display."""
        return

    def _find_case_relations(self, weapon_data, hits_data, global_weapon_data):
        arcpy.AddMessage("Identificando Relaciones para HITS")
        relationship_object = {}  # Object to keep track of relationships identified
        case_no_evaluated = []
        hits_data_keys = list(hits_data.keys())  # Calculate Hits_Data keys ONCE to avoid same calculation in all iterations.

        for case_no in weapon_data.keys():
            relationship_res, cases_found_rel = self._find_case_no_relations_recursive(case_no, global_weapon_data,
            hits_data, hits_data_keys, case_no_evaluated)
            if relationship_res is not None:
                relationship_object[case_no] = relationship_res[case_no]
            case_no_evaluated.append(case_no)
            case_no_evaluated += cases_found_rel

        return relationship_object

    def _find_case_no_relations_recursive(self, case_no, weapon_data, hits_data, hits_data_keys, case_no_already_checked=[]):
        found_relations = {}

        # Don't perform operation on records not considered in the weapon_data dictionary
        if(case_no not in weapon_data.keys()):
            return None, []

        # Don't perform operation on records where there is not at least one relationship on the hits layer.
        case_no_relations = [x for x in weapon_data[case_no]]
        count_relations = list(filter(lambda x: x in [x['globalid'] for x in case_no_relations], hits_data_keys))
        if(len(count_relations) == 0):
            return None, []
        found_relations[case_no] = {}

        for hit_rel_parentglobalid in count_relations:
            for current_case_no_rel in hits_data[hit_rel_parentglobalid]:
                if current_case_no_rel in case_no_already_checked:
                    found_relations[case_no] = current_case_no_rel
                    return found_relations, case_no_already_checked

                # Recursive call to this function to find all possible matches hierarchically
                curr_relation_match, curr_records_checked = self._find_case_no_relations_recursive(current_case_no_rel,
                weapon_data, hits_data, hits_data_keys, case_no_already_checked)

                if(curr_relation_match is not None):
                    if(isinstance(found_relations[case_no], dict)):
                        found_relations[case_no][current_case_no_rel] = curr_relation_match[current_case_no_rel]
                    else:
                        # Current logic avoids case number being duplicated, ex {'2024-05-2154': '2024-05-2154': {...}}
                        # Fixed by doing `curr_relation_match[current_case_no_rel]`
                        found_relations[case_no] = {current_case_no_rel: curr_relation_match[current_case_no_rel]}
                else:
                    found_relations[case_no][current_case_no_rel] = None
                case_no_already_checked += curr_records_checked
                case_no_already_checked.append(current_case_no_rel)

        case_no_already_checked.append(case_no)

        return found_relations, list(set(case_no_already_checked))

    def _recursive_dataframe_generator(self, rel_dictionary, parent_key=None):
        dataframe_collection = []
        counter = 0

        for key, value in rel_dictionary.items():
            if(not parent_key):
                counter += 1
            # if (key =='2024:07-171-000637'):
            #     print('break here!!!!')
            if(isinstance(value, str)):
                df = pandas.DataFrame(data=[key, value])
                df = df.transpose()
                if not parent_key:
                    df = pandas.concat([pandas.DataFrame(data=[counter]), df], axis=1, ignore_index=True)
                dataframe_collection.append(df)
            elif(value is None):
                df = pandas.DataFrame(data=[key])
                if not parent_key:
                    print("`Me: This will never happen lol! - Happens anyway`")
                dataframe_collection.append(df)
            elif(isinstance(value, dict)):
                result = self._recursive_dataframe_generator(value, key)
                it_count = 0
                for res in result:
                    if(it_count == 0):
                        df = pandas.DataFrame(data=[key])
                    else:
                        df = pandas.DataFrame(data=[''])

                    df = pandas.concat([df, res], axis=1, ignore_index=True)

                    # Add record numbering when required
                    if not parent_key:
                        append_cell = counter if it_count == 0 else ''
                        df = pandas.concat([pandas.DataFrame(data=[append_cell]), df], ignore_index=True, axis=1)

                    it_count += 1

                    dataframe_collection.append(df)

            # Add "line break" row between records when necessary
            if not parent_key:
                top_df_width = 0
                for df in dataframe_collection:
                    width = len(df.columns)
                    top_df_width = width if width > top_df_width else top_df_width
                data = ['' for _ in range(0, top_df_width)]
                dataframe_collection.append(pandas.DataFrame(data=data).transpose())

        return dataframe_collection

    def _report_dataframe_generator(self, relationship_object):
        # Define a list of dictionary keys, in order to add a new line in the DataFrame after all records for this key has been processed.
        object_record_keys = list(relationship_object.keys())

        result = self._recursive_dataframe_generator(relationship_object)
        df_width = 0

        # Obtain width of largest dataframe
        for df in result:
            if len(df.columns) > df_width:
                df_width = len(df.columns)

        result_df = None
        # Concatenate all resulting dataframes to obtain a final dataframe with results
        count = 0
        for df in result:
            # if(count == 3):
            #     print('e')
            tmp_df = df.copy()
            curr_width = len(df.columns)
            if(curr_width < df_width):
                # Add right padding if necessary to match length of largest dataframe
                padding = ['' for x in range(0, df_width - curr_width)]
                padding_df = pandas.DataFrame(data=padding)
                tmp_df = pandas.concat([tmp_df, padding_df], axis=1, ignore_index=True)
            if result_df is None:
                result_df = tmp_df
            else:
                result_df = pandas.concat([result_df, tmp_df], ignore_index=True)
            count += 1

        return result_df

    def generate_event_relationship_diagram(self, weapon_data):
        sheet_name = 'Relaciones_Eventos'
        target_dir = os.path.join(cwd, "Output")
        out_path = os.path.join(target_dir, f"{sheet_name}_{uuid4()}.xlsx")

        if(not os.path.isdir(target_dir)):
            os.makedirs(target_dir)
        del target_dir

        # NOTE: A query is normally performed, records are processed, and this is the output of the aforementioned operations
        relationship_object = {"2025:06-040-000031": {"2024:06-013:018541": None}, "2024:06-040-003889": {"2024:06-067:002316": None, "2024:06-040:005722": None, "2024:07-171-000637": "2024:06-067:002316", "2025:06-067-000239": "2024:06-040:003889"}, "2024:06-040-005722": "2024:06-040-003889", "2024:06-040-003258": {"2024:06-040-003200": None}, "2025:06-040-002387": {"2025:06-013-009991": {"2025:06-040:002387": None}}}

        arcpy.AddMessage("Generando reporte de Relaciones de Eventos")

        # List to store instances of DataFrame Object (One per case number evaluated)
        dataframe_collection = self._report_dataframe_generator(relationship_object)

        # Create PDF File from Dataframe
        dataframe_collection.to_excel(out_path, sheet_name=sheet_name, index=False)

        return out_path

    def report_generator(self, where_clause, report_selection):

        arcpy.AddMessage(f"Realizando consulta seleccionada: `{where_clause}`")

        # NOTE: Normally a query is performed, the results are processed and this is the output of the aforementioned operation.

        # Placeholder variables - not used in this example
        case_no_to_globalids = {}
        hits_records = {}

        out_file = None
        match report_selection:
            # case 'Repeticiones de Querellas':
            #     out_file = self.generate_case_count_report(case_no_to_globalids, hits_records)
            case 'Relaciones de Eventos':
                out_file = self.generate_event_relationship_diagram(case_no_to_globalids)
            # case 'Querellas Relacionadas Según NIBIN Lead':
            #     out_file = self.generate_related_case_report(case_no_to_globalids)
            case _:
                arcpy.AddMessage("Selección de reporte inválida")

        arcpy.AddMessage(f"Reporte Generado Exitosamente: {out_file}")

        return out_file

# # Test Script - Uncomment to Run script using python interpreter (terminal).
# if __name__ == "__main__":
#     cls = ReportGeneratorTool()
#     # NOTE: When testing, the first two parameter is not really important, Just make sure to select one of the cases avobe for the 2nd parameter.
#     cls.report_generator("", "Querellas Relacionadas Según NIBIN Lead")

Hayden Welch

I always have this issue when I dynamically load in tools locally. I write my PYT files to import the tool classes from seperate files and when the parameter code changes, the tool breaks in this exact same way.

Issue is caused by Arc caching the parameter layout on load. If you have modified your parameters, or if your getParameterInfo function is somehow changing during execution on the server it would cause this.

Have you tried removing all the parameters and running the tool? Just early return in the execute function with some message to see that changes are being loaded properly. Then make sure the cache is cleared on the server (restart the service, or manually clear the cache).

RViruet

UPDATE: I made a version of this tool that DOES NOT use any libraries not included in the default ArcGIS Pro interpreter, however the problems mentioned in the previous post persist.

Only one of the reports is available to be generated in this example, FYI.

# -*- coding: utf-8 -*-

from uuid import uuid4

import arcpy
import os
import pandas

cwd = os.path.dirname(os.path.realpath(__file__))

class Toolbox:
    def __init__(self):
        """Define the toolbox (the name of the toolbox is the name of the
        .pyt file)."""
        self.label = "Report Generator Toolbox"
        self.alias = "report_generator_toolbox"

        # List of tool classes associated with this toolbox
        self.tools = [ReportGeneratorTool]


class ReportGeneratorTool:
    def __init__(self):
        """Define the tool (tool name is the name of the class)."""
        self.label = "Report Generator Tool DEMO"
        self.description = "DEMO: Herramienta para la generación de reporte(s) HITS a Armas"

        self.area_values = {"Bayamon": "Bayamon", "Guayama": "Guayama", "Humacao": "Humacao"}
        self.municipality_values = {"Sanjuan": "SANJUAN", "Carolina": "CAROLINA", "Guaynabo": "GUAYNABO"}
        self.pol_unit_values = {"Investigaciones De Licencias De Armas": "INVESTIGACIONES DE LICENCIAS DE ARMAS", "Policia Municipal": "POLICIA MUNICIPAL", "Violencia Domestica": "VIOLENCIA DOMESTICA"}

    def getParameterInfo(self):
        """Define the tool parameters."""
        # Report Type
        report_type = arcpy.Parameter(displayName="Tipo de Reporte", name="report_type", datatype="String",
                                      parameterType="Required", direction="Input")
        report_type.filter.type = "ValueList"
        report_type.filter.list = ['Relaciones de Eventos']

        # Police Area
        area_param = arcpy.Parameter(displayName="Area Policiaca", name="police_area", datatype="GPString",
                                     parameterType="Optional", direction="Input")
        area_param.filter.type = "ValueList"
        area_param.filter.list = list(self.area_values.keys()) if len(self.area_values.keys()) > 0 else []

        # Municipality
        municipality_param = arcpy.Parameter(displayName="Municipio", name="municipality", datatype="GPString",
                                             parameterType="Optional", direction="Input")
        municipality_param.filter.type = "ValueList"
        municipality_param.filter.list = list(self.municipality_values.keys()) if len(self.municipality_values.keys()) > 0 else []

        # Police Unit Field
        police_unit_param = arcpy.Parameter(displayName="Unidad", name="unit", datatype="GPString",
                                            parameterType="Optional", direction="Input")
        police_unit_param.filter.type = "ValueList"
        police_unit_param.filter.list = list(self.pol_unit_values.keys()) if len(self.pol_unit_values.keys()) > 0 else []

        # Date of Occurrence
        date_occurrence_param = arcpy.Parameter(
            displayName="Fecha de Ocurrencia\n(Solo escojer hasta UN(1) solo rango de Fechas)\n", name="date_range",
            datatype="GPValueTable",
            parameterType="Optional", direction="Input")
        date_occurrence_param.columns = [['Date', 'Desde'], ['Date', 'Hasta']]

        # Output Parameter
        output = arcpy.Parameter(displayName="Output", name="output", datatype="DEFile",
                                 parameterType="Derived", direction="Output")

        return [report_type, area_param, municipality_param, police_unit_param, date_occurrence_param, output]

    def isLicensed(self):
        """Set whether the tool is licensed to execute."""
        return True

    def updateParameters(self, parameters):
        """Modify the values and properties of parameters before internal
        validation is performed.  This method is called whenever a parameter
        has been changed."""

        # Remove extra date ranges from date_range_param if entered by the user
        date_idx_param = 4
        date_range_param = parameters[date_idx_param].value
        if (date_range_param and len(date_range_param) > 1):
            parameters[date_idx_param].value = [date_range_param[0]]

        return

    def updateMessages(self, parameters):
        """Modify the messages created by internal validation for each tool
        parameter. This method is called after internal validation."""

        # Notify user only one pair of dates can be specified for the date range parameter
        date_idx_param = 4
        date_range_param = parameters[date_idx_param].value
        if (date_range_param and len(date_range_param) > 1):
            parameters[date_idx_param].setErrorMessage("Solo puede escojer hasta un solo set de fechas (Desde / Hasta)")

        # Validate that date range entered is valid
        if (date_range_param and len(date_range_param) == 1 and len(date_range_param[0]) == 2):
            start_date, end_date = date_range_param[0]
            if (start_date > end_date):
                parameters[date_idx_param].setErrorMessage(
                    "Fecha de Inicio `Desde` debe ser menor que Fecha de Culminación `Hasta`.")

        return

    def execute(self, parameters, messages):
        """The source code of the tool."""

        # Define the WHERE Clause that will be used for generating reports
        where_clause = ""
        where_holder = []

        # Hacky way to obtain a chain of ANDS for the where_clause expression
        if (parameters[1].value is not None):
            where_holder.append(f"AreaGuns = '{self.area_values[parameters[1].value]}'")
        if (parameters[2].value is not None):
            where_holder.append(f"MunicipioGuns = '{self.municipality_values[parameters[2].value]}'")
        if (parameters[3].value is not None):
            where_holder.append(f"UnidadArma = '{self.pol_unit_values[parameters[3].value]}'")
        if(parameters[4].value is not None and len(parameters[4].value[0]) == 2):
            start_date, end_date = parameters[4].value[0]
            date_clause = f"FechaArma >= TIMESTAMP'{start_date}' AND FechaArma <= TIMESTAMP'{end_date}'"
            where_holder.append(date_clause)
            del start_date, end_date, date_clause

        # NOTE: Include in where clause to ignore records where num_caso_query is NULL

        # NOTE: If this where clause changes, make sure to also change it when evaluating where clause
        #  to be used for relation
        if (len(where_holder) > 0):
            where_clause = " AND ".join(where_holder)
            where_clause += " AND num_caso_query IS NOT NULL"

        if (where_clause == ""):
            where_clause = "num_caso_query IS NOT NULL"

        out_file = self.report_generator(where_clause, parameters[0].value)

        if(out_file):
            parameters[5].value = out_file

        return

    def postExecute(self, parameters):
        """This method takes place after outputs are processed and
        added to the display."""
        return

    def _find_case_relations(self, weapon_data, hits_data, global_weapon_data):
        arcpy.AddMessage("Identificando Relaciones para HITS")
        relationship_object = {}  # Object to keep track of relationships identified
        case_no_evaluated = []
        hits_data_keys = list(hits_data.keys())  # Calculate Hits_Data keys ONCE to avoid same calculation in all iterations.

        for case_no in weapon_data.keys():
            relationship_res, cases_found_rel = self._find_case_no_relations_recursive(case_no, global_weapon_data,
            hits_data, hits_data_keys, case_no_evaluated)
            if relationship_res is not None:
                relationship_object[case_no] = relationship_res[case_no]
            case_no_evaluated.append(case_no)
            case_no_evaluated += cases_found_rel

        return relationship_object

    def _find_case_no_relations_recursive(self, case_no, weapon_data, hits_data, hits_data_keys, case_no_already_checked=[]):
        found_relations = {}

        # Don't perform operation on records not considered in the weapon_data dictionary
        if(case_no not in weapon_data.keys()):
            return None, []

        # Don't perform operation on records where there is not at least one relationship on the hits layer.
        case_no_relations = [x for x in weapon_data[case_no]]
        count_relations = list(filter(lambda x: x in [x['globalid'] for x in case_no_relations], hits_data_keys))
        if(len(count_relations) == 0):
            return None, []
        found_relations[case_no] = {}

        for hit_rel_parentglobalid in count_relations:
            for current_case_no_rel in hits_data[hit_rel_parentglobalid]:
                if current_case_no_rel in case_no_already_checked:
                    found_relations[case_no] = current_case_no_rel
                    return found_relations, case_no_already_checked

                # Recursive call to this function to find all possible matches hierarchically
                curr_relation_match, curr_records_checked = self._find_case_no_relations_recursive(current_case_no_rel,
                weapon_data, hits_data, hits_data_keys, case_no_already_checked)

                if(curr_relation_match is not None):
                    if(isinstance(found_relations[case_no], dict)):
                        found_relations[case_no][current_case_no_rel] = curr_relation_match[current_case_no_rel]
                    else:
                        # Current logic avoids case number being duplicated, ex {'2024-05-2154': '2024-05-2154': {...}}
                        # Fixed by doing `curr_relation_match[current_case_no_rel]`
                        found_relations[case_no] = {current_case_no_rel: curr_relation_match[current_case_no_rel]}
                else:
                    found_relations[case_no][current_case_no_rel] = None
                case_no_already_checked += curr_records_checked
                case_no_already_checked.append(current_case_no_rel)

        case_no_already_checked.append(case_no)

        return found_relations, list(set(case_no_already_checked))

    def _recursive_dataframe_generator(self, rel_dictionary, parent_key=None):
        dataframe_collection = []
        counter = 0

        for key, value in rel_dictionary.items():
            if(not parent_key):
                counter += 1
            # if (key =='2024:07-171-000637'):
            #     print('break here!!!!')
            if(isinstance(value, str)):
                df = pandas.DataFrame(data=[key, value])
                df = df.transpose()
                if not parent_key:
                    df = pandas.concat([pandas.DataFrame(data=[counter]), df], axis=1, ignore_index=True)
                dataframe_collection.append(df)
            elif(value is None):
                df = pandas.DataFrame(data=[key])
                if not parent_key:
                    print("`Me: This will never happen lol! - Happens anyway`")
                dataframe_collection.append(df)
            elif(isinstance(value, dict)):
                result = self._recursive_dataframe_generator(value, key)
                it_count = 0
                for res in result:
                    if(it_count == 0):
                        df = pandas.DataFrame(data=[key])
                    else:
                        df = pandas.DataFrame(data=[''])

                    df = pandas.concat([df, res], axis=1, ignore_index=True)

                    # Add record numbering when required
                    if not parent_key:
                        append_cell = counter if it_count == 0 else ''
                        df = pandas.concat([pandas.DataFrame(data=[append_cell]), df], ignore_index=True, axis=1)

                    it_count += 1

                    dataframe_collection.append(df)

            # Add "line break" row between records when necessary
            if not parent_key:
                top_df_width = 0
                for df in dataframe_collection:
                    width = len(df.columns)
                    top_df_width = width if width > top_df_width else top_df_width
                data = ['' for _ in range(0, top_df_width)]
                dataframe_collection.append(pandas.DataFrame(data=data).transpose())

        return dataframe_collection

    def _report_dataframe_generator(self, relationship_object):
        # Define a list of dictionary keys, in order to add a new line in the DataFrame after all records for this key has been processed.
        object_record_keys = list(relationship_object.keys())

        result = self._recursive_dataframe_generator(relationship_object)
        df_width = 0

        # Obtain width of largest dataframe
        for df in result:
            if len(df.columns) > df_width:
                df_width = len(df.columns)

        result_df = None
        # Concatenate all resulting dataframes to obtain a final dataframe with results
        count = 0
        for df in result:
            # if(count == 3):
            #     print('e')
            tmp_df = df.copy()
            curr_width = len(df.columns)
            if(curr_width < df_width):
                # Add right padding if necessary to match length of largest dataframe
                padding = ['' for x in range(0, df_width - curr_width)]
                padding_df = pandas.DataFrame(data=padding)
                tmp_df = pandas.concat([tmp_df, padding_df], axis=1, ignore_index=True)
            if result_df is None:
                result_df = tmp_df
            else:
                result_df = pandas.concat([result_df, tmp_df], ignore_index=True)
            count += 1

        return result_df

    def generate_event_relationship_diagram(self, weapon_data):
        sheet_name = 'Relaciones_Eventos'
        target_dir = os.path.join(cwd, "Output")
        out_path = os.path.join(target_dir, f"{sheet_name}_{uuid4()}.xlsx")

        if(not os.path.isdir(target_dir)):
            os.makedirs(target_dir)
        del target_dir

        # NOTE: A query is normally performed, records are processed, and this is the output of the aforementioned operations
        relationship_object = {"2025:06-040-000031": {"2024:06-013:018541": None}, "2024:06-040-003889": {"2024:06-067:002316": None, "2024:06-040:005722": None, "2024:07-171-000637": "2024:06-067:002316", "2025:06-067-000239": "2024:06-040:003889"}, "2024:06-040-005722": "2024:06-040-003889", "2024:06-040-003258": {"2024:06-040-003200": None}, "2025:06-040-002387": {"2025:06-013-009991": {"2025:06-040:002387": None}}}

        arcpy.AddMessage("Generando reporte de Relaciones de Eventos")

        # List to store instances of DataFrame Object (One per case number evaluated)
        dataframe_collection = self._report_dataframe_generator(relationship_object)

        # Create PDF File from Dataframe
        dataframe_collection.to_excel(out_path, sheet_name=sheet_name, index=False)

        return out_path

    def report_generator(self, where_clause, report_selection):

        arcpy.AddMessage(f"Realizando consulta seleccionada: `{where_clause}`")

        # NOTE: Normally a query is performed, the results are processed and this is the output of the aforementioned operation.

        # Placeholder variables - not used in this example
        case_no_to_globalids = {}
        hits_records = {}

        out_file = None
        match report_selection:
            # case 'Repeticiones de Querellas':
            #     out_file = self.generate_case_count_report(case_no_to_globalids, hits_records)
            case 'Relaciones de Eventos':
                out_file = self.generate_event_relationship_diagram(case_no_to_globalids)
            # case 'Querellas Relacionadas Según NIBIN Lead':
            #     out_file = self.generate_related_case_report(case_no_to_globalids)
            case _:
                arcpy.AddMessage("Selección de reporte inválida")

        arcpy.AddMessage("Reporte Generado Exitosamente")

        return out_file

# # Test Script - Uncomment to Run script using python interpreter (terminal).
# if __name__ == "__main__":
#     cls = ReportGeneratorTool()
#     # NOTE: When testing, the first two parameter is not really important, Just make sure to select one of the cases avobe for the 2nd parameter.
#     cls.report_generator("", "Querellas Relacionadas Según NIBIN Lead")

Join the Conversation

Signed in members can post, follow updates, and more. New here? Register a free account.

Quick Links

Community Help
Find useful guides, FAQs, and documents to help you navigate and make the most of Esri Community.
