Arcade functionnality on experience support doesn't support the same usage than pop-up box in Map Viewer ?

JasonBOCQUET

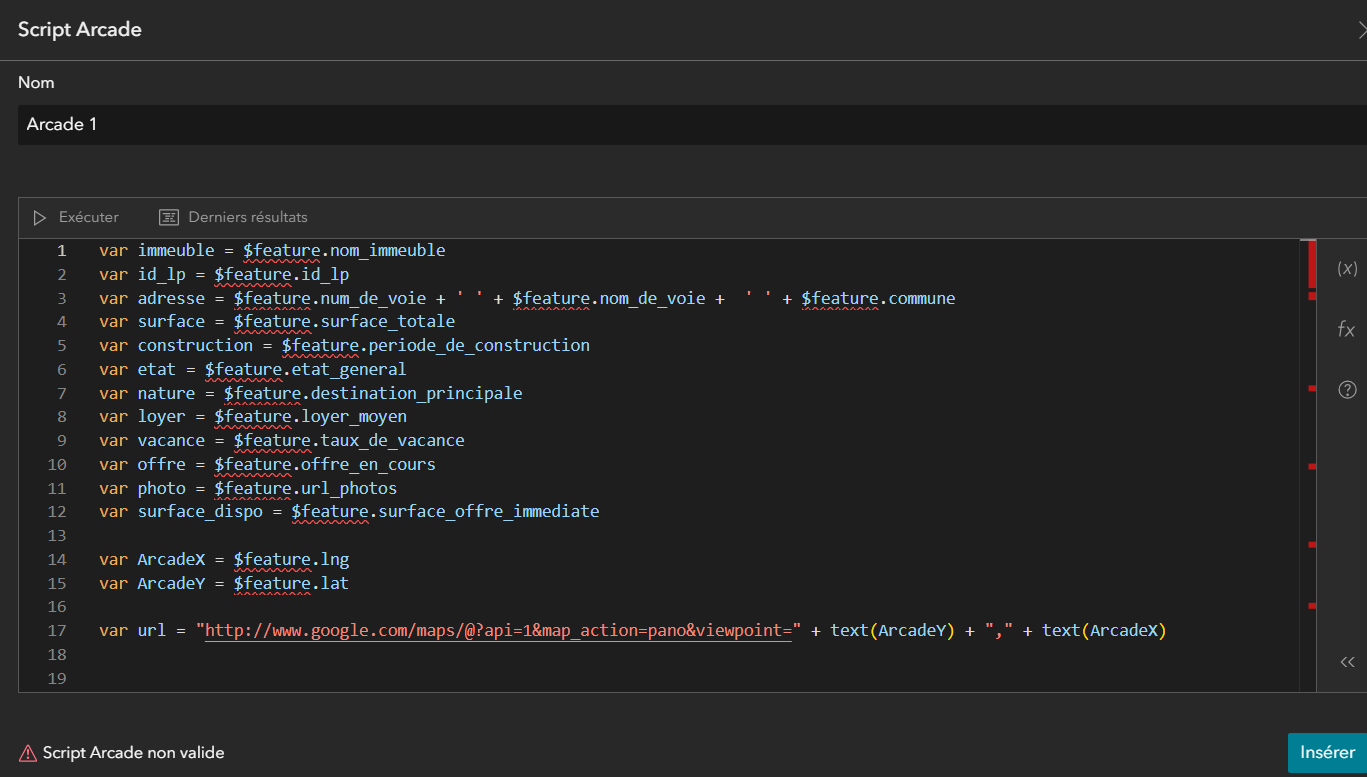

Hi, i have an arcade script who works perfectly on my Map Viewer when i set my pop-up box.

But when I want to integrate the same things on a text widget i have some issue with the "$feature." function :

There is no way to use this type of function ? Or did I miss something ?

Thanks 😉

Find more posts tagged with

Accepted answers

All comments

ShengdiZhang

Hi, this is currently a known limitation. When using the $dataSources variable to reference the layer, it does not access the service directly, and therefore cannot retrieve the data relationship information.

Shengdi

JasonBOCQUET

You can set only 1 source on the list widget. So if I set my building in source, i cannot use the Offers.

So how can I access to the features of my offers if I'm on building list ? And the text widget embeeded on the list widget block the usage of $feature if you set more than 1 source.

kenbuja

You can use Arcade in a list widget which does have access to the $feature variable.

JasonBOCQUET

Ok thanks

If I understand correctly, I can't show on a text widget (or a text widget embedded on a list) information about building and information about offers who is associated to a building with a relationship class ?

My app mecanics do not very use the select function. It's more like filtering layers and read information on list, text..

It sad it seems to be very limited in comparaison to what we can do on a pop-up box 😞

kenbuja

The text widget doesn't have access to the $feature variable, just the $dataSources variable (see the profile for more information). You can get the selected feature with the syntax

var dataSource = $dataSources['dataSource_1-187acf797e1-layer-5-selection'];
var selectedFeatures = dataSource.selectedFeatures;
var feature = First(selectedFeatures)

JasonBOCQUET

In the same way, it is impossible to use the "FeatureSetByRelationshipName" function ??
