Arcade expression to sort an integer field array and return top 5

BronwynRodgers1

I'm quite new to Arcade scripting and need some assistance, I have developed a Field Maps form to evaluate site suitability for tree cultivars. The trees have suitability scores 0-4 for a range of site characteristics. The scores are then totalled. I want to sort these scores descending and return the top 5 names and scores as a readable list.

I typed this query into Copilot along with the attached subset of my 50 tree cultivars and example scores, and received the following (also in an attached file), which does not work.

// Create an array of field names with their scores

var trees = [

    { "name": "Weraiti", "score": $feature.Weraiti },

    { "name": "Yeogi", "score": $feature.Yeogi },

    { "name": "Yunnan", "score": $feature.Yunnan },

    { "name": "Booth", "score": $feature.Booth },

    { "name": "Awanui", "score": $feature.Awanui },

    { "name": "Aegyptica", "score": $feature.Aegyptica },

    { "name": "Gigantea", "score": $feature.Gigantea },

    { "name": "Glenmark", "score": $feature.Glenmark }

];

// Sort the array by scores in descending order

var sortedTrees = Sort(trees, function(item1, item2) {

    return item2.score - item1.score;

});

// Get the top 5 items

var topTrees = Slice(sortedTrees, 0, 5);

// Create a readable list

var readableList = "";

for (var i = 0; i < Count(topTrees); i++) {

    readableList += (i + 1) + ". " + topTrees[i].name + " - " + topTrees[i].score + TextFormatting.NewLine;

}

return readableList;

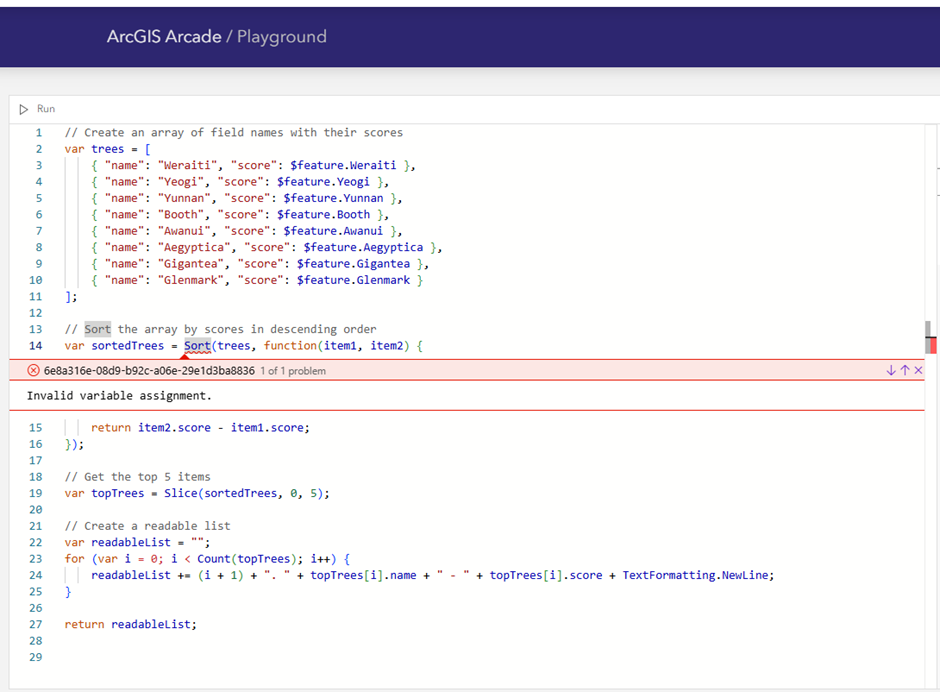

And when pasted into Arcade Playground shows where the error is.

My deadline for this app is fast approaching so I would appreciate a reworked expression that I can apply to my complete tree array.



Many thanks



Create an array of field names with their scores_Copilot.docx

ExampleTreeScores.xlsx





RPGIS

Sorry there was a script typo. I was using a different IDE outside of the Arcade and noticed that a couple of lines were missing a bracket.

var Fields = [
	{ 'name':'TreeSpecies' , 'type': 'esriFieldTypeString' , 'length':50 },
	{ 'name':'Score' , 'type': 'esriFieldTypeInteger' },
	]

var TreeNames = {
	'Weraiti':0,
	'Yeogi':0,
	"Yunnan":0,
	"Booth":0,
	"Awanui":0,
	"Aegyptica":0,
	"Gigantea":0,
	"Glenmark":0
	}

Expects($feature,'*')
var Values = []
for( var N in TreeNames ){
	var V = { 'TreeSpecies' : N , 'Score': $feature[ N ] }
	Push( Values , {'attributes': V } )
	}
var TreeScores = {
	'fields' : Fields,
	'geometry':'',
	'features': Values
	}
TreeScores = FeatureSet(Text(TreeScores))
TreeScores = Top(OrderBy(TreeScores,'Score'+'Desc'),5)
var M = ''
for( var row in TreeScores){
	M = M + Text(row.TreeSpecies) + ' has ' + Text(row.Score)+TextFormatting.NewLine
	}
Console( M )

 If you are using the arcade playground to test things then this code will need to be reconfigured to whatever test data your are trying to use.
