2024.1 Individual Service Metrics Missing

DavidJantz

Individual service metrics are missing in my 2024.1 installation monitoring a 10.9.1 Enterprise.

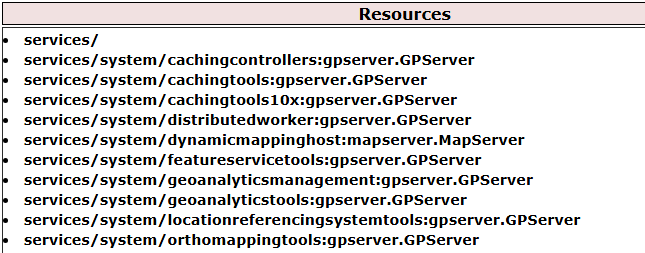

Just a guess for my 10.9.1 install, but the usage report shows resources with 2 seeming issues. First is this ":<serviceType>" after the name and before the ".<serviceType>". Second is the service names are all lowercase. I copied the agm usage report json, created my own, and could verify that every service returns NODATA. Changing either the service folder and name to the correct case or removing the ":gpserver" did not result in valid data returned, but fixing both does. So this should look like "services/System/CachingControllers.GPServer" not "services/system/cachingcontrollers:gpserver.GPServer'.

Find more posts tagged with

Accepted answers

All comments

IDOTAdmin

I did what recommended and also restart ArcGIS Monitor Server, still see the timeslot gap.

IDOTAdmin

Hi, Derek

Thank you for your prompt response. I followed your suggestion this morning at 6 AM EST and am hopeful that the bar chart will return to normal today.

I did followings:

restart your AM Agent service on the host machine;
manually run the ArcGIS Server component's Metrics observer;
(navigate to Monitoring page > select the ArcGIS Server component > Observers > select the Metrics observer > View observer details > Run Observer)

Many Thanks

Derek Law

HI @IDOTAdmin,

> ... today I noticed a gap in the analysis view.

By "gaps" do you mean the "empty" timeslots, such as at 12:30 and at 1:25? So your expectation is to see some data points at these timeslots, right? This behavior is really odd.

Some things to try to troubleshoot:

Can you please restart your AM Agent service on the host machine;
Can you please manually run the ArcGIS Server component's Metrics observer;
(navigate to Monitoring page > select the ArcGIS Server component > Observers > select the Metrics observer > View observer details > Run Observer)
When change the serial chart display option to line type, do the data points appear?

Hope this helps,

IDOTAdmin

I applied the ArcGIS Monitor 2024.1.1 patch, and everything appeared to be functioning normally. However, today I noticed a gap in the analysis view. All agents are connected, and there are no critical alerts. What could be causing this?

marceloctorres

ArcGIS Monitor 2024.1.1 released on MyEsri

Captura de pantalla 2025-03-25 144938.png

Derek Law

All,

UPDATE: the ArcGIS Monitor 2024.1.1 patch that addresses this issue is scheduled for release on March 20.

Thanks for your continued patience,

Hannah24

I logged a ticket with ESRI, and it has been tagged with the following issue. Could you kindly confirm if this is the correct issue to be tagged? Also, could you please provide any estimated timeframe for fixing this issue? In case it might take a while, would you recommend reverting to the previous version 2024.0? Hannah

Derek Law

Hi @Hannah24,

Please contact Esri Tech Support and open a Tech Support incident. They will add your reported issue to the internal BUG tracking system.

Hope this helps,

Hannah24

Could someone please share the ESRI incident ticket number with us? We're encountering the same issue and would like to attach ourselves to the ticket as well.

Hannah

Derek Law

All,

Apologies for this issue. The Monitor team is working on a patch to resolve this. I will post an update when we have news to share. Thanks for your patience.

Hope this helps,

dcoley

ok @DavidJantz I am seeing the same thing. I dk. I'd say lets see what the 2024.1 patch does once that comes out.

joyoung_kerrvilletx

I am on AGM 2024.1 now as well and my service metrics are also missing. I am monitoring ArcGIS Enterprise 11.4. I checked ArcGIS Server and the metrics are there in its Statistic Reports page. However, I thought there used to be an ArcGIS Monitor report on the Statistics Reports page that I am no longer seeing. Did something change at 2024.1?

DavidJantz

These are accessible from the admin endpoint. https://developers.arcgis.com/rest/enterprise-administration/server/usagereport/

dcoley

I don't recognize your screen grabs. Where are are you generating these usage reports from?

DavidJantz

Here's a comparison of the usage reports from 10.9.1. 2024.1 on the left vs 2024.0.1 on the right.
