Two collapsible panes in Experience Builder

Brian_McLeer

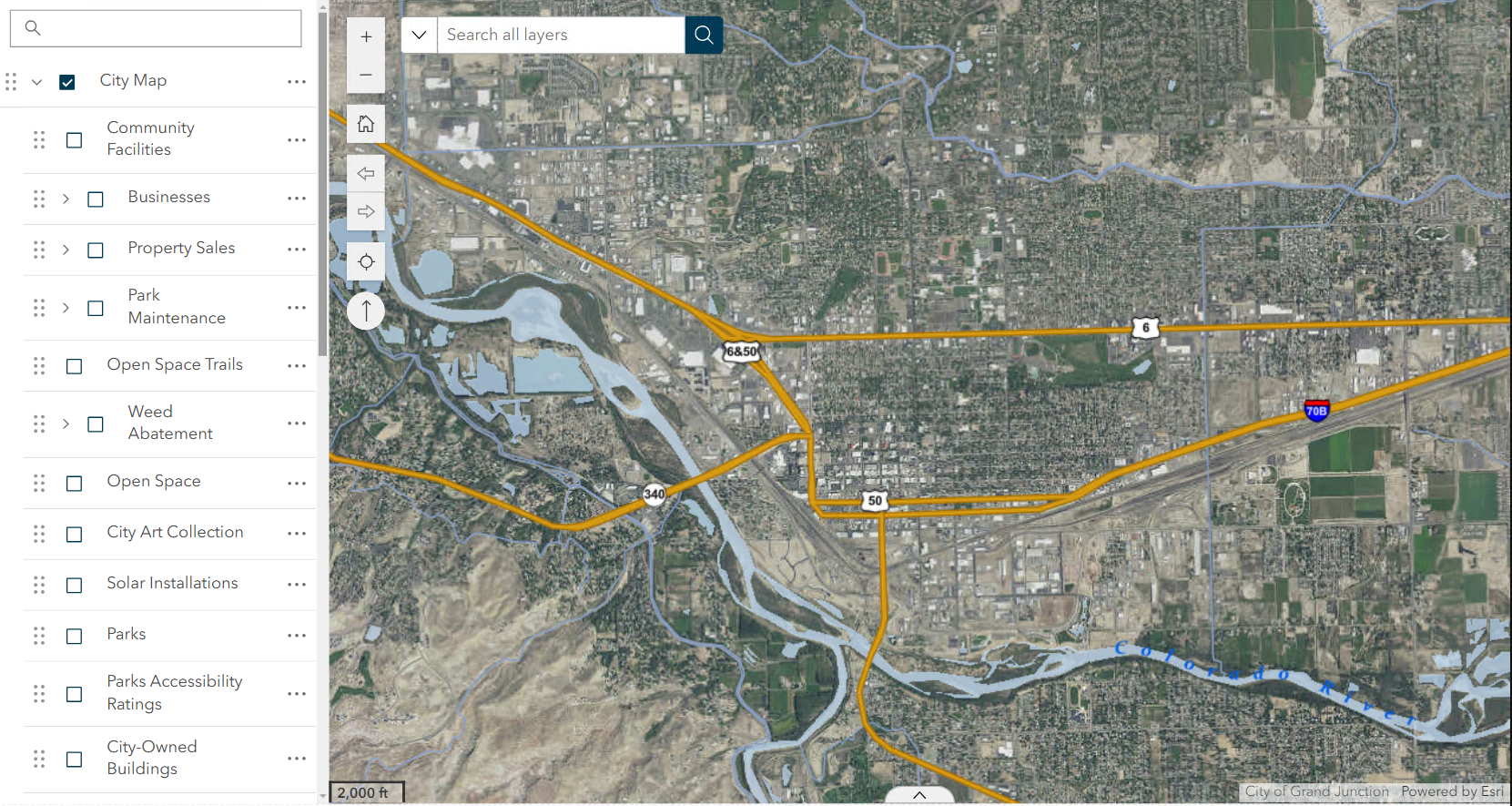

In the body of my experience, I have three main components; a map widget, table widget, and map layers widget.

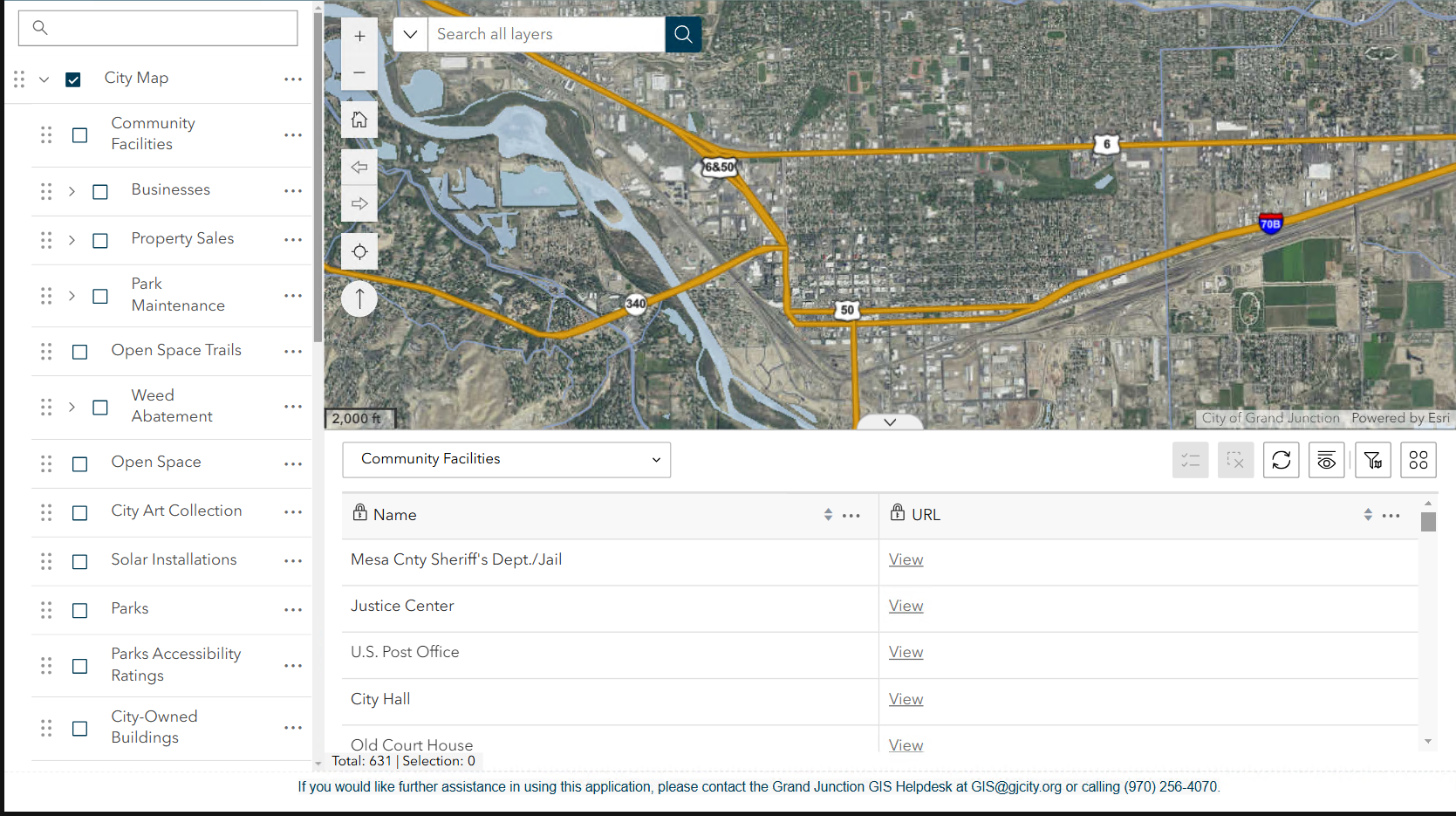

The table widget can be expanded or collapsed, which in turn adjusts the map size.

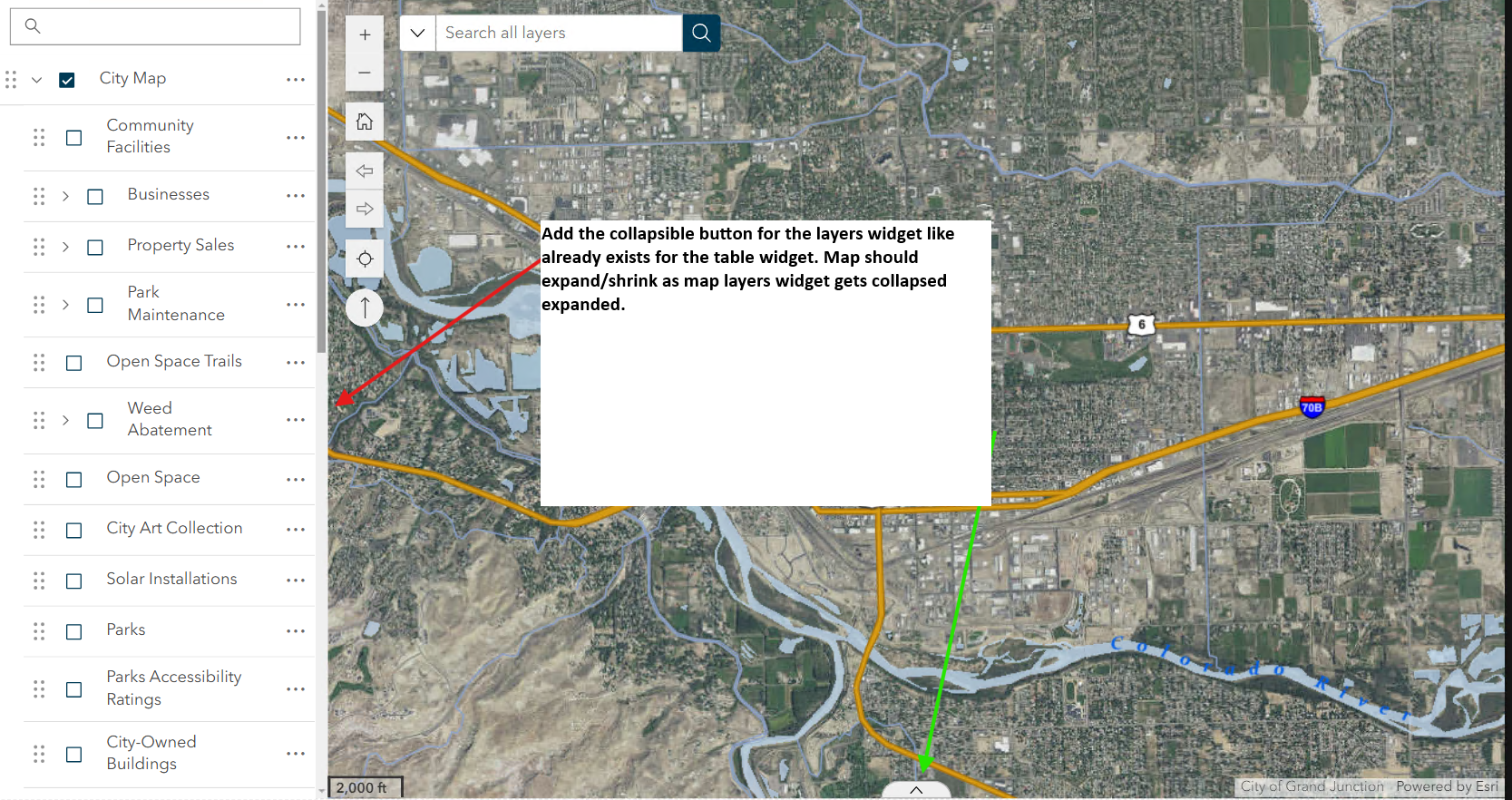

I have tried a few approaches but have had no success adding this function to the map layers widget. Please let me know if anyone has a workflow or tips I might have missed.







LucVanDijk

Hi @Brian_McLeer ,

Your goal can be accomplished by nesting multiple Sidebar widgets. You can nest as many of them as you like. Make sure the 'First' half of the Sidebar contains a widget (in this case, Map Layers) and the 'Second' half of the sidebar contains another Sidebar widget. The second Sidebar widget should then contain the Map and Table widgets. When nesting sidebars, always make sure to put the Map widget at the 'deepest' level.

You can change the configuration of the Sidebar widgets independently: make Sidebar 1 dock to the left and Sidebar 2 dock to the bottom. This also leads to the solution for @JasonBOCQUET 's problem: change the docking side to 'bottom':

This will make your table show/hide from the bottom of the screen. Set the 'size' parameter to the size you want your table to be when expanded. Do not set it to 0, as that will make it always invisible.
