Changing the displayed floor

Question

Hello All!

I have been modeling out our campus and was wondering if you are able to change which floor is displayed by default. For example, generally floor 1 is displayed or selected to be displayed upon importing a floorplan from REVIT or CAD. However, some of the buildings that are on our campus have their main entrance on another level and I was wondering if there was a way to change that without removing the model and importing it again.

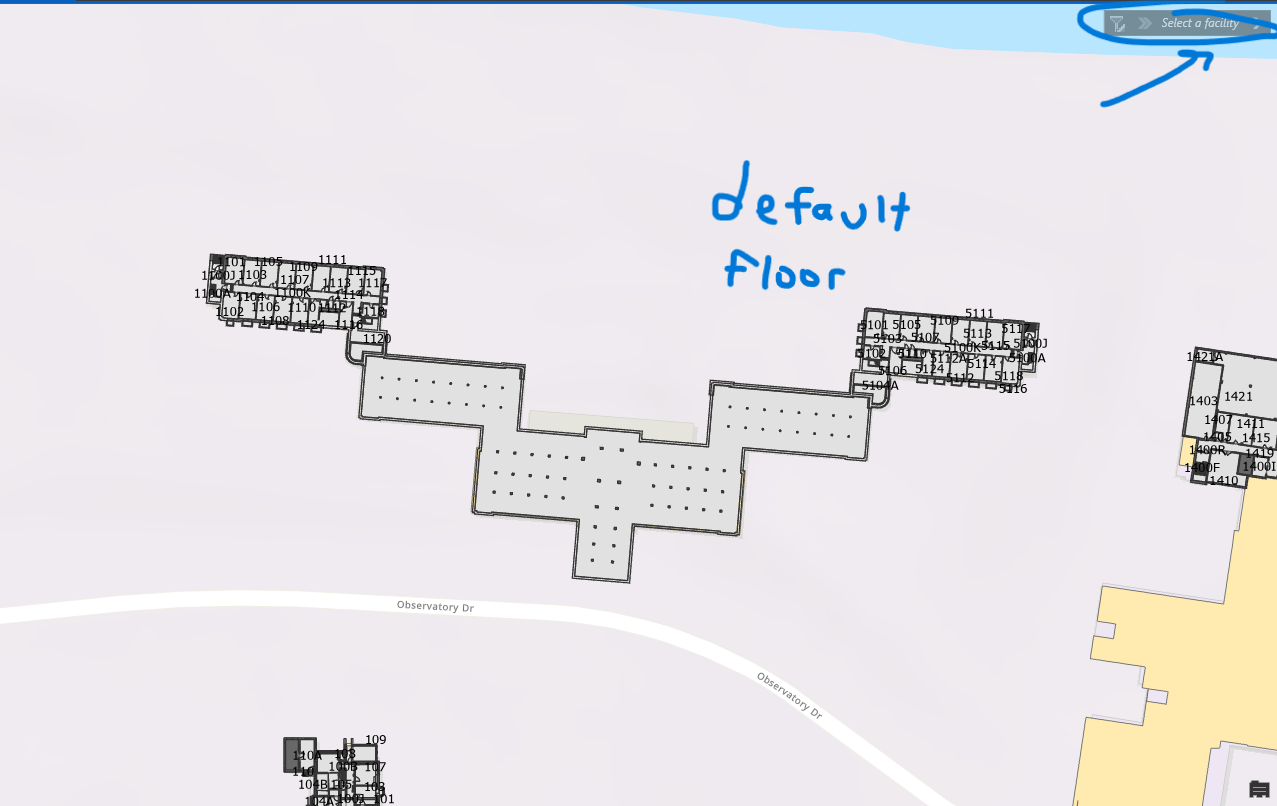

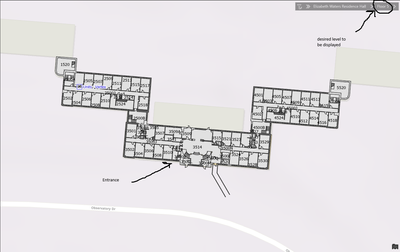

I'll attach some photos to accompany this!

Thank you!

KadeSmith · Accepted Answer

In the Levels feature class, set the Vertical Order to 0 for the floor that you want to be the default floor. The vertical order for the other floors is then relative to that. So if you set floor 2 as vertical order 0, floor 1 would have vertical order of -1, a basement level would be -2, and floor 3 would be vertical order 1 in that building.
