Field is Not Nullable Error: 160145

Question

Hi all,

I keep running into this error message 160145: Field is Not Nullable.

I am using the Load data using workspace excel file

I am having trouble with mapping from a point feature class "Loads" to Electric Device feature class.

I have Checked all the fields that are not nullable, and I am almost 100% sure I have assigned values to them all unless I keep missing something. I also checked my source data and there is nothing null in my source, mapping calculated fields also says 100% filled factor.

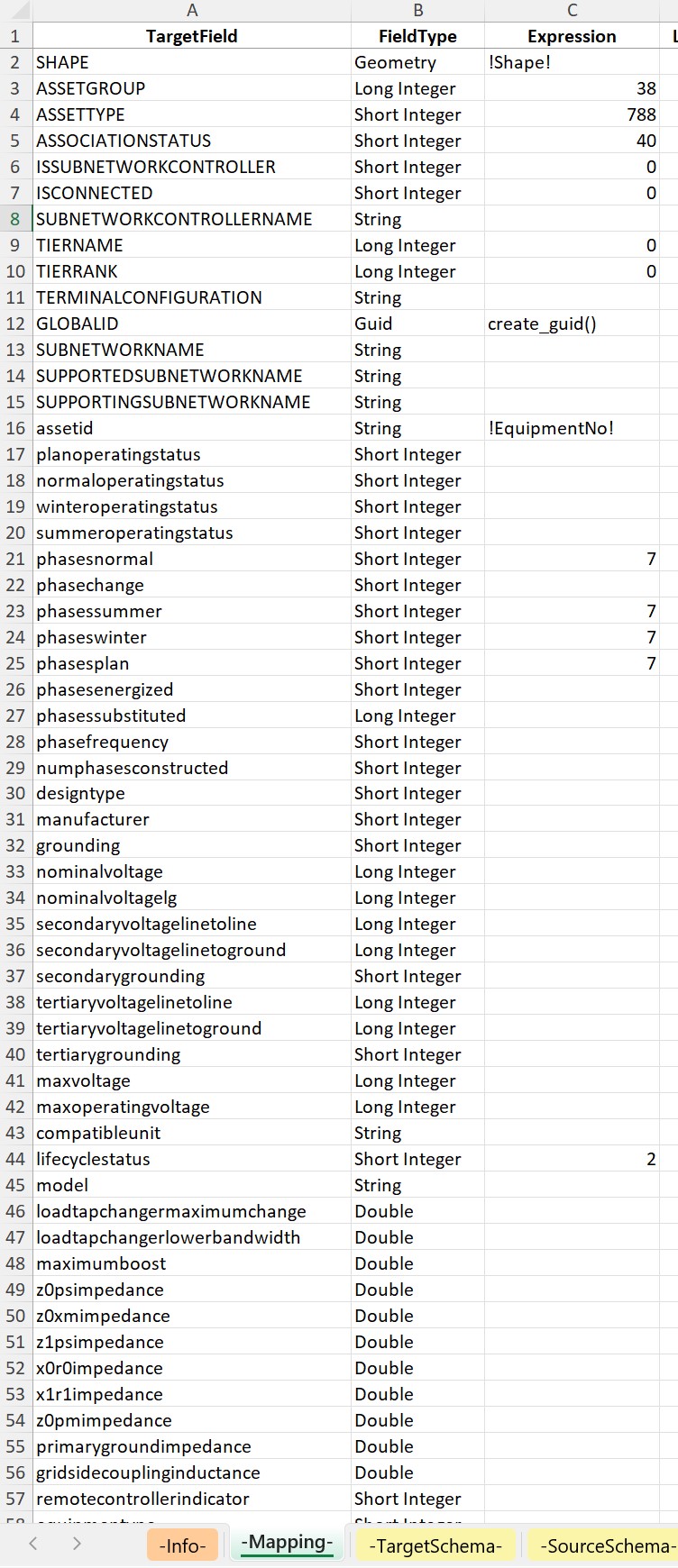

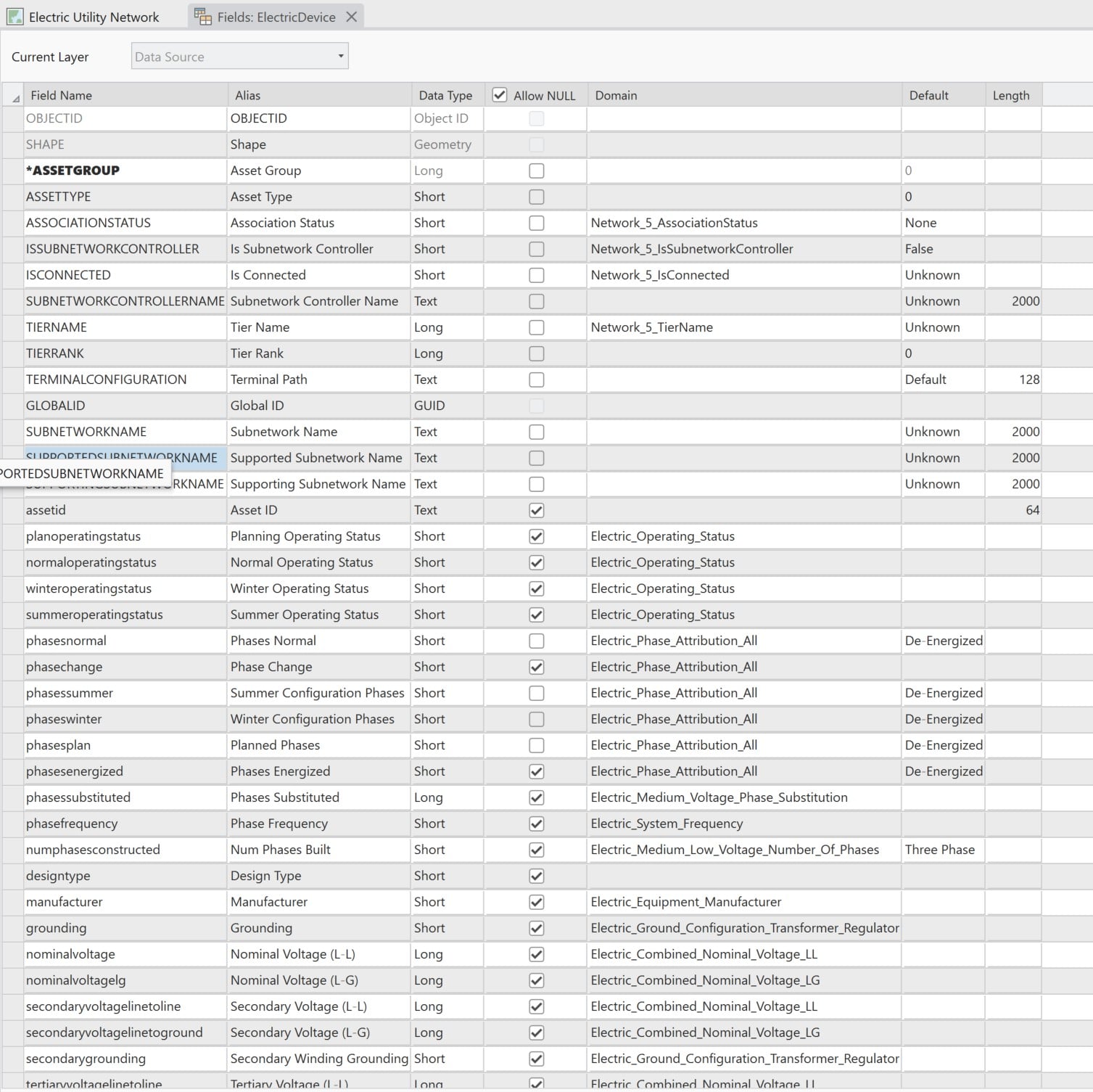

I have attached photos below of my fields that don't allow nullable values in the target dataset and also a photo of the source dataset mapping.

I am just not sure why it keeps saying there is a null value in a not nullable field, when all the not nullable fields are being populated with values.

Maybe I need an extra set of eyes on this to help me see my error and what I am missing, also I did not populate the string categories but that has never mattered before all my other data loads worked with empty string columns and I tried filling those and it made no difference.

Any and all suggestions are welcomed

Thank you!

SimonKerkhof · Answer

Hi, Robert

Thank you for taking the time to help me. I used the data loading preview, and it loaded the data fully but also highlighted a null field. Turns out I had an anomaly in my dataset, so all good now.

RobertKrisher · Answer

First off, please log a case with support in case this turn out to be a bug.

Lets try a few things.

* Do you receive the same error if you run the Load Data to Preview tool?
* Try using the append tool to manually append rows from Nodes_Plant_ElectricJunction_XYTableToPoint to electric junction.
* try running a mapping through where you are only bringing over the shape and relying on default values for the rest of the fields.

SimonKerkhof · Answer

Hi Robert, Thank you for the reply, below is the full error message I get when I run my code: Traceback (most recent call last): File "", line 2, in File "C:\Program Files\ArcGIS\Pro\Resources\ArcPy\arcpy\management.py", line 2233, in LoadDataUsingWorkspace raise e File "C:\Program Files\ArcGIS\Pro\Resources\ArcPy\arcpy\management.py", line 2230, in LoadDataUsingWorkspace retval = convertArcObjectToPythonObject(gp.LoadDataUsingWorkspace_management(*gp_fixargs((in_workbook,), True))) ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^ File "C:\Program Files\ArcGIS\Pro\Resources\ArcPy\arcpy\geoprocessing\_base.py", line 512, in return lambda *args: val(*gp_fixargs(args, True)) ^^^^^^^^^^^^^^^^^^^^^^^^^^^^ arcgisscripting.ExecuteError: ERROR 160145: The field is not nullable. Failed to execute (Append). Failed to execute (LoadDataUsingWorkspace). And here is the Messages from the Geoprocessing tool: 1874 row(s) from C:\Users\user\Desktop\Complete GIS Models\WatsonLakeGIS\OutputFolder\Output_Geodatabase.gdb\Nodes_XYTableToPoint were appended to C:\Users\user\Desktop\Complete GIS Models\WatsonLakeGIS\Electric Utility Network Foundation\Database\Electric_AssetPackage_InsertCommunityName.gdb\UtilityNetwork\StructureJunction 1874 row(s) from C:\Users\user\Desktop\Complete GIS Models\WatsonLakeGIS\OutputFolder\Output_Geodatabase.gdb\Nodes_ElectricJunction_XYTableToPoint were appended to C:\Users\user\Desktop\Complete GIS Models\WatsonLakeGIS\Electric Utility Network Foundation\Database\Electric_AssetPackage_InsertCommunityName.gdb\UtilityNetwork\ElectricJunction 10 row(s) from C:\Users\user\Desktop\Complete GIS Models\WatsonLakeGIS\OutputFolder\Output_Geodatabase.gdb\Nodes_Plant_XYTableToPoint were appended to C:\Users\user\Desktop\Complete GIS Models\WatsonLakeGIS\Electric Utility Network Foundation\Database\Electric_AssetPackage_InsertCommunityName.gdb\UtilityNetwork\StructureJunction 10 row(s) from C:\Users\user\Desktop\Complete GIS Models\WatsonLakeGIS\OutputFolder\Output_Geodatabase.gdb\Nodes_Plant_ElectricJunction_XYTableToPoint were appended to C:\Users\user\Desktop\Complete GIS Models\WatsonLakeGIS\Electric Utility Network Foundation\Database\Electric_AssetPackage_InsertCommunityName.gdb\UtilityNetwork\ElectricJunction ERROR 160145: The field is not nullable. Failed to execute (Append). Failed script Load Data Using Workspace... Failed to execute (LoadDataUsingWorkspace). Failed at Tuesday, August 20, 2024 4:33:39 PM (Elapsed Time: 2 minutes 38 seconds)
