Add a point marker on a map from a click in a ExB custom Widget

sylvainhotte1

Hello,

I am builder a custom widget that will be similar as the coordinate widget.

I am still a seed in the ground with ExB widget.



1. User click on the cross
2. then click on the map (a market will appear)
3. the coordinate are save in variable
4. then the user click on the button for some function to be executed

Everything is working except for the marker.

I want to be able to add a marker like this when I click on a map I don't know how to make the marker appear. I took inspiration from the coordinate widget. I copied this function into my code to start but...

  const getMarkerGraphic = (mapPoint) => {

    const symbol = new PictureMarkerSymbol({

      url: require('./assets/pin-exb.svg'),

      width: 12,

      height: 22,

      yoffset: 11

    })

    return new Graphic({

      geometry: mapPoint,

      symbol

    })

  }

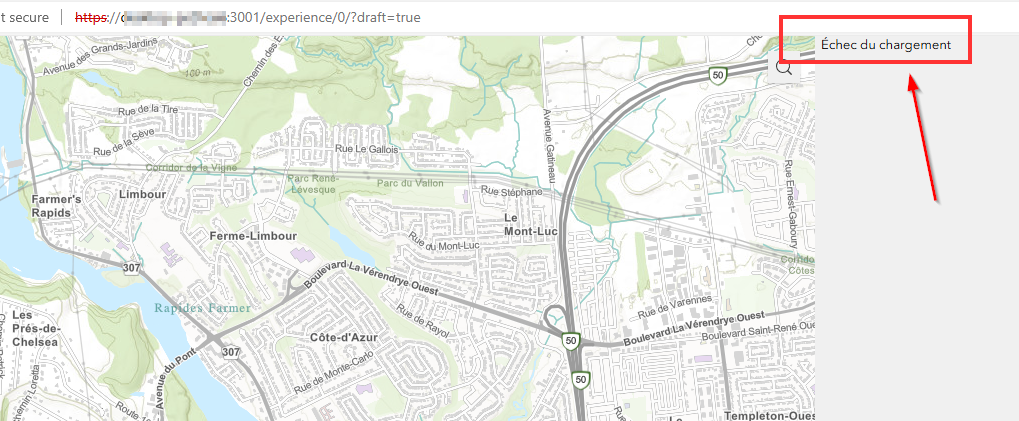

Bu when I reload I get this (failed to load)

I am stuck there... any creation of any object will give me that problem ( const xyz = new Whatever() )

the function is not event called anywhere in my code at this point.

I coded my widget base on a function model (not a class). But I think the coordinate widget is also a function...

Any idea ?

Thanks

Sylvain

sylvainhotte1

I need to add "dependency": "jimu-arcgis" in the manifest
