Hey everyone,
I'm trying to build a model to automatically generate radial lines emanating from a point. I have used the CalculateGeometryAttributes tool to generate x and y coordinates for a single point. Then I used the GetFieldValue tool to extract the x and y coordinates. These values are used as preconditions and inputs for a CalculateField tool, which adds these points to a table. But I keep getting the "The process did not execute because the precondition is false." error message.
Here's a copy of the error. As you can see, GetFieldValue was able to successfully extract the x and y coordinates from CalculateGeometryAttributes , so there is no reason for the precondition to fail.
Executing (Calculate Geometry Attributes): CalculateGeometryAttributes points "Point_X POINT_X;Point_Y POINT_Y" # # PROJCS["WGS_1984_Web_Mercator_Auxiliary_Sphere",GEOGCS["GCS_WGS_1984",DATUM["D_WGS_1984",SPHEROID["WGS_1984",6378137.0,298.257223563]],PRIMEM["Greenwich",0.0],UNIT["Degree",0.0174532925199433]],PROJECTION["Mercator_Auxiliary_Sphere"],PARAMETER["False_Easting",0.0],PARAMETER["False_Northing",0.0],PARAMETER["Central_Meridian",0.0],PARAMETER["Standard_Parallel_1",0.0],PARAMETER["Auxiliary_Sphere_Type",0.0],UNIT["Meter",1.0]] "Decimal Degrees"
Start Time: August 2, 2024 10:45:02 AM
Succeeded at August 2, 2024 10:45:03 AM (Elapsed Time: 0.38 seconds)
Executing (Get X Value): GetFieldValue points Point_X Double 0
Start Time: August 2, 2024 10:45:03 AM
Succeeded at August 2, 2024 10:45:03 AM (Elapsed Time: 0.01 seconds)
Executing (Calculate X Field): CalculateField "[filepath censored]\Default.gdb\Template_noCoords" Point_X -105.49058464 Python # Text NO_ENFORCE_DOMAINS
Start Time: August 2, 2024 10:45:03 AM
The process did not execute because the precondition is false.
Succeeded at August 2, 2024 10:45:03 AM (Elapsed Time: 0.00 seconds)
Executing (Get Y Value): GetFieldValue points Point_Y Double 0
Start Time: August 2, 2024 10:45:03 AM
Succeeded at August 2, 2024 10:45:03 AM (Elapsed Time: 0.01 seconds)
Executing (Calculate Y Field): CalculateField "[filepath censored]\Default.gdb\Template_noCoords" Point_Y 50.85320402 Python # Text NO_ENFORCE_DOMAINS
Start Time: August 2, 2024 10:45:03 AM
All the inputs are not current.

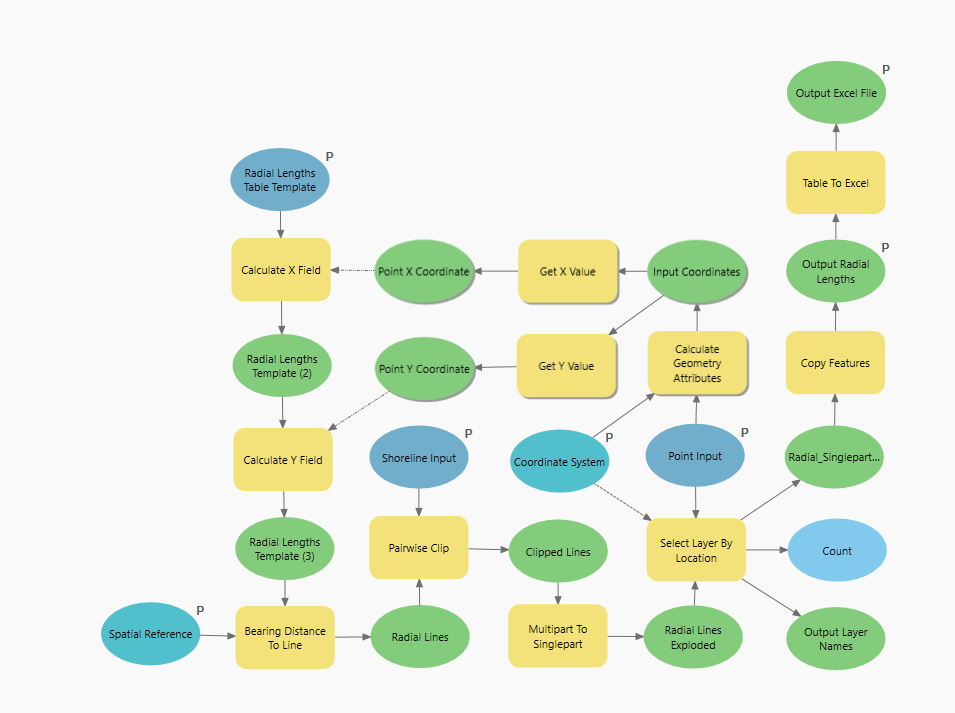

This is what the model looks like, in case that helps find a solution.
