Merging Features

TimothyFratta

I am trying to merge three polygons (basically property parcels) into one. When I use the merge tool (Edit -> Modify -> Merge), I simply cannot get more than one feature listed under "Features to merge", even if all three features appear selected on my map.

Why is this happening, what am I missing???

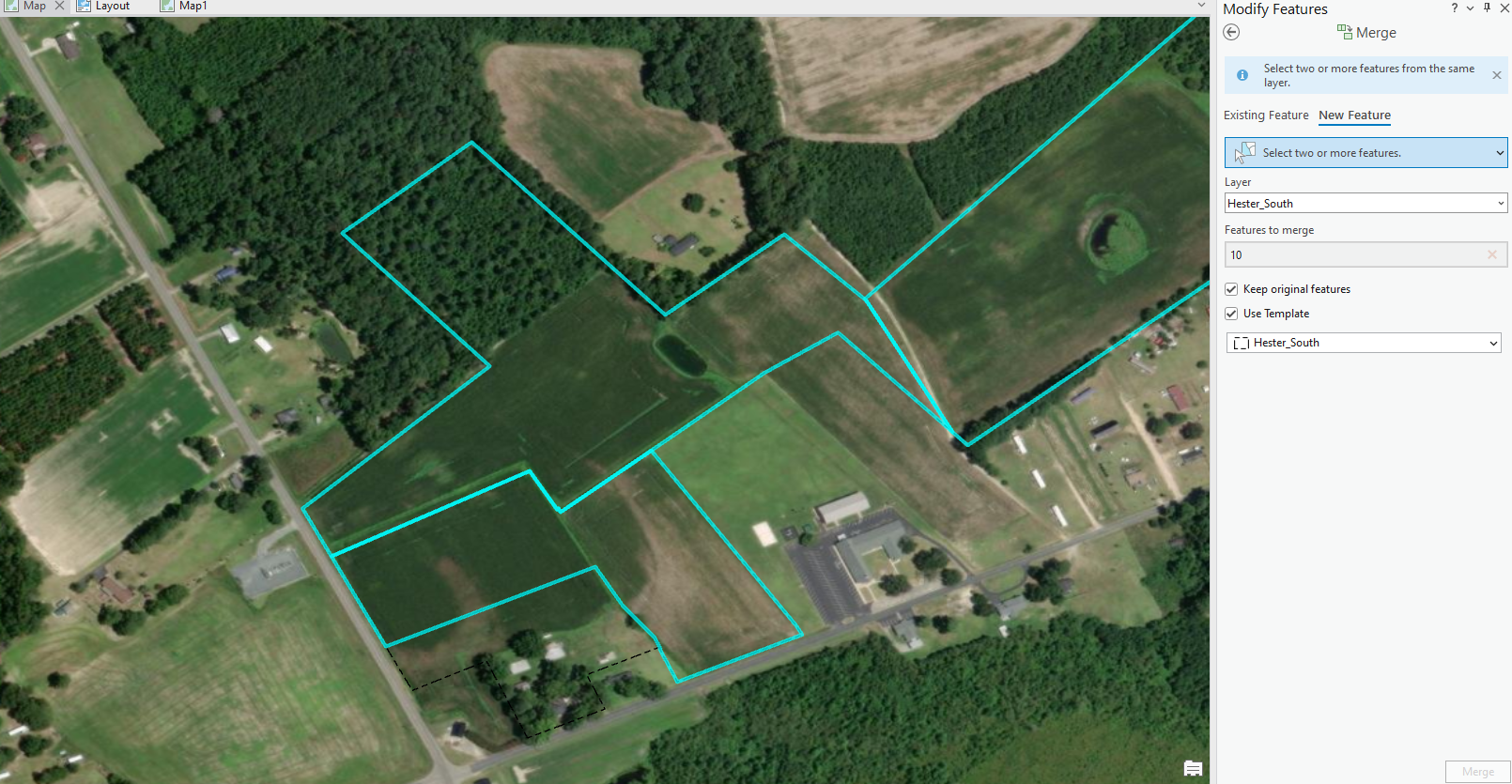

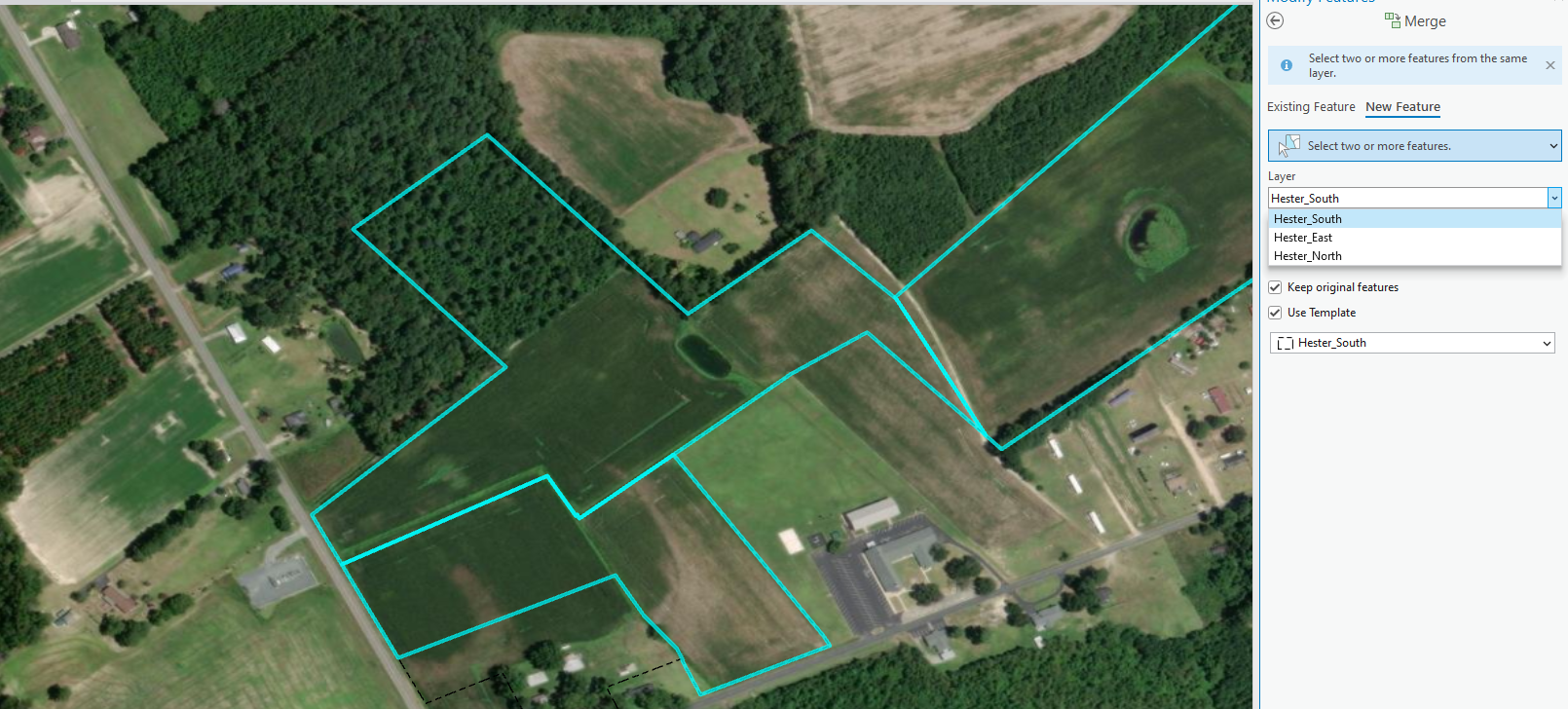

The above image shows that all three features are selected.

But I cannot figure out how to make them present in the "Features to merge" list.

Find more posts tagged with

Accepted answers

rzufelt

If you are trying to merge data from separate layers, I think you are looking for the Merge (or Append) GPT tool, not the Edit, Modify, Merge.

Edit -> Modify -> Merge:

"The Merge tool combines two or more features on the same layer into an existing feature or unions two or more features into a new feature. Features that do not touch or overlap, merge as parts of a multipart feature. This tool is available in the Modify Features pane."

Data Management -> Merge Geoprocessing Tool:

"Combines multiple input datasets into a single, new output dataset. This tool can combine point, line, or polygon feature classes or tables."

All comments

TimothyFratta

Addenda: once I used the Geoprocessing merge tool, the three polygons were merged, but they maintained their individual borders.

However they were now in the same layer and I was finally able to the use the Edit -> Merge tool as I initially had planned to and create a polygon that is truly the combination of all three.

Thanks all for the help!

TimothyFratta

Thank you very much. That makes sense!

rzufelt

If you are trying to merge data from separate layers, I think you are looking for the Merge (or Append) GPT tool, not the Edit, Modify, Merge.

Edit -> Modify -> Merge:

Data Management -> Merge Geoprocessing Tool:

"Combines multiple input datasets into a single, new output dataset. This tool can combine point, line, or polygon feature classes or tables."

TimothyFratta

Hi Georgios,

I have looked at that, but cannot understand why the much simpler function does not work.

Thanks,

Tim

TimothyFratta

I have, to the letter. But it's not working, as I tried to explain in my question: I cannot get the function to list the two features I am trying to merge. That's my whole problem.

Thanks!

Tim

Georgios-NektariosTselos

Hi @TimothyFratta, probably you could use the Merge tool (Data Management) from the geoprocessing tools. Also you can check the link below, https://pro.arcgis.com/en/pro-app/latest/tool-reference/data-management/merge.htm .

Additionaly I suggest to you to try to merge first the polygons 'Hester_East' with 'Hester_South' and the product of those two with the 'Hester_North'

Kind Regards

Georgios-Nektarios Tselos

danretired

are you following this?

Merge features into one feature—ArcGIS Pro | Documentation
