Turn By Turn Directions sequence is incorrect

Alok_Shah

Hi,

We are using ArcPy.NAX for route-solving solutions and to get the turn-by-turn directions. Recently we have observed that it's solving routes as expected and also returning turn-by-turn directions, but the sequence of turn-by-turn directions is not correct. Attaching a couple of screenshots for reference. This is a random behavior.  Sometimes it returns correctly and sometimes it gives incorrect results.

Link of ArcPy.Nax - Route—ArcGIS Pro | Documentation

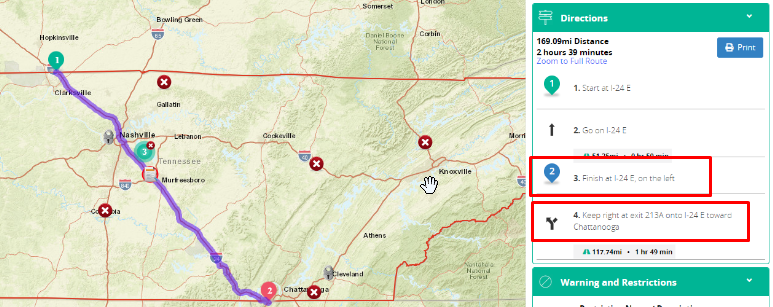

Screenshot of directions:

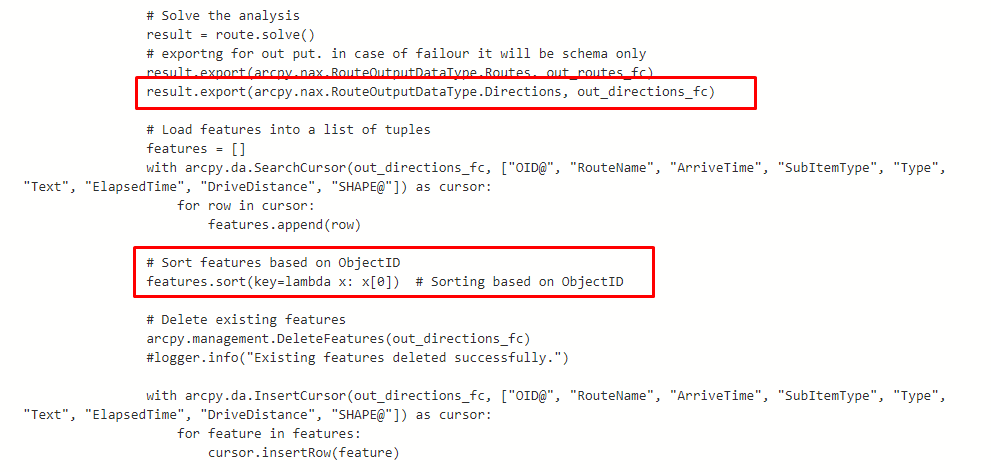

We also tried to sort the directions feature class based on the object id but still it's giving the same result. Snapshot of python code.



@RodneyConger - We have raised a ticket with ESRI support but tagging you. It would be great if you can guide us or provide some pointers.

Alok_Shah

Hi @RodneyConger ,

Please find the requested layer file as an attachment. For this route, it's happening every time and another observation is that if we remove the barrier then it's working fine.





We are not doing anything with the directions. We are only setting directions in the output parameters after generating it. Here is the screenshot from the tool.



Another observation is that this is happening when we are loading the line restrictions but if we don’t load it then it’s giving directions as expected. Below is the code which we have used to load the line restrictions.

Note: We tried 5-10 times and it’s giving directions as expected.

    def LoadLineRestriction(self,route,is_use_line_restriction,line_restriction_lyr,whereClause,copyedFeturesArray):
        logger = self.logger
        DEBUG = self.DEBUG
        if is_use_line_restriction :
            result = arcpy.SelectLayerByAttribute_management(in_layer_or_view=line_restriction_lyr, selection_type="NEW_SELECTION", where_clause= whereClause)
            sectedCount = int(result.getOutput (1))
            if(sectedCount > 0):
                selectionlyr= result.getOutput (0)
                copyFields =("LOCATIONS",)
                line_restriction_obj = cUtil.InputFeatureClass(selectionlyr)
                line_restriction_obj.copyFeatures(self.out_gdb_workspace,'LineRestriction',copyFields)
                copyedFeturesArray.append(line_restriction_obj)
                line_restriction = line_restriction_obj.catalogPath
                field_mappings_line_restriction = self.GetLineRestrictionFieldMappings(route)
                route.load(arcpy.nax.RouteInputDataType.LineBarriers, line_restriction,field_mappings_line_restriction,False)
        return


    def GetLineRestrictionFieldMappings(self,route):
        field_mappings_line_restriction= route.fieldMappings(arcpy.nax.RouteInputDataType.LineBarriers, True)
        field_mappings_line_restriction["Name"].mappedFieldName = "ORIG_FID"
        field_mappings_line_restriction["Locations"].mappedFieldName = g_ESRI_variable_2
        return field_mappings_line_restriction;



1022lyr.lyr
