Node reduction

Question

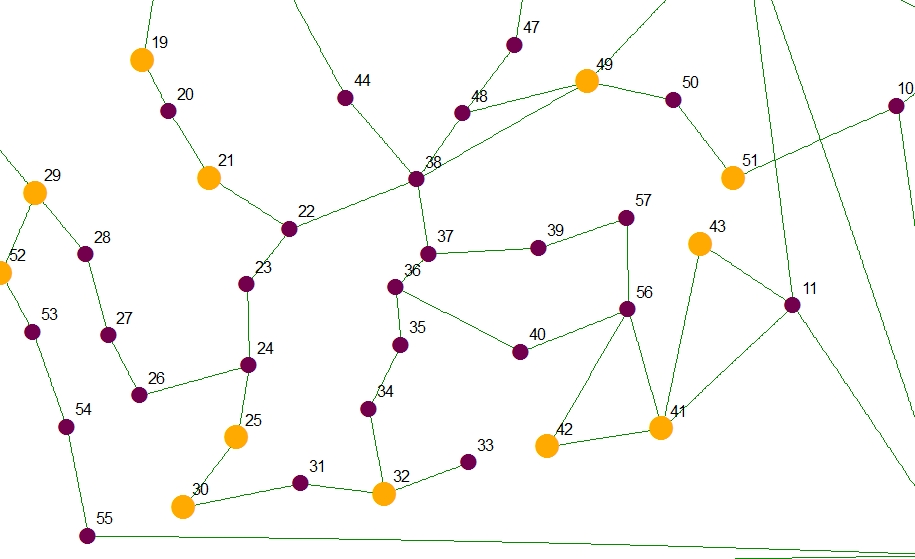

I wondered if there is a way to reduce some nodes in a network. For instance, if there are two or more adjacent nodes (orange color), these nodes for my problem can be merged together as single nodes. In the figure below, nodes 41, 42, and 43 can be merged and forms a single node connected to the nodes 11 and 56. Any idea to do so?

Thanks

Best wishes

LanoYado · Answer

Sorry Abdullah, I didn't get your point. Thanks for your reply.

AbdullahAnter · Answer

The main Idea to solve this problem that :

1- select orange points that intersect with same line.

2-select one point only from each line selection,then delete other.

That will remove all unwanted orange points.

3-now we need to delete the lines that haven't any point in (start or end ) line.

you can use topology for this.

Use python or model builder for previous propose.

LanoYado · Answer

Thanks Chris for the reply. It does not matter where the new merged node will be as long as keeping all lines connect the individual nodes that form the new node with their neighbors. The new location could be any "old" location of the existing nodes or it could be a central location or any place else. There will not be any constraint on the location of the nodes except keeping the total connection to the neighbors with no change. The lines among merged-nodes, of course, will be deleted; for example, lines: 41-42 and 41-43 will be eliminated while lines 41-11 and 41-56 will be there. Note that a single line is enough to connect the new node to the node 56 although the old lines are two.
