Calculating a repeat group for a geoshape field

Question

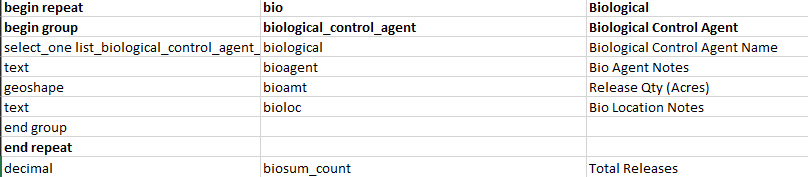

Is there a way to obtain a sum from a repeated group of the Area calculated from a geoshape feature? I originally had this as a text feature, but thought it would make it easier for the end user to draw out the area of biocontrol agent being released, but then that messed up the Total Release calculation I had. I found a different post addressing a similar situation and tried the join() instead of sum(), but that didn't seem to work (came back with coordinate data), so maybe I didn't set the join formula correctly? See snap shot of the table I'm working with.

TIA

this is the formula I had for a join, for biosum_count:

join('; ', ${bioamt})

dougbrowning · Accepted Answer

Do you mean calculate the area of each polygon, then sum all those up across all repeats?

If so you can use a field with a area calc inside the repeat.

decimal field type  calc:  area(${name of geoshape field})

Then outside the repeat use sum(area field above) to add them all up.

Great post on all of this here https://community.esri.com/t5/arcgis-survey123-blog/survey123-tricks-of-the-trade-lines-and-polygons/bc-p/1132697#M4882

Hope that helps
