isolation tracing not show domain code at travesability

Question

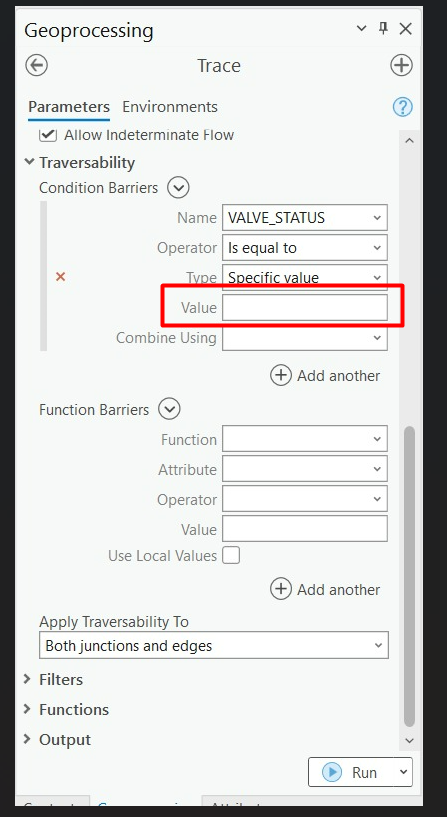

Hi everyone, we try to run isolation tracing, however when to choose the value, the code domain not available as shown below, i need to key in the code.

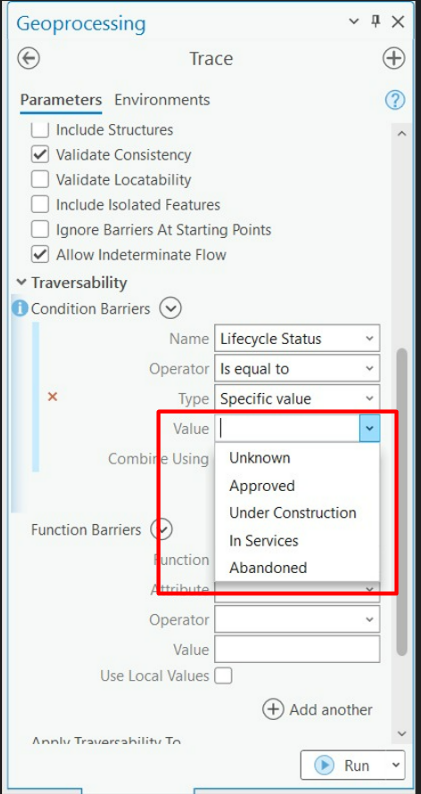

But, for  lifecycle status, the domain shown

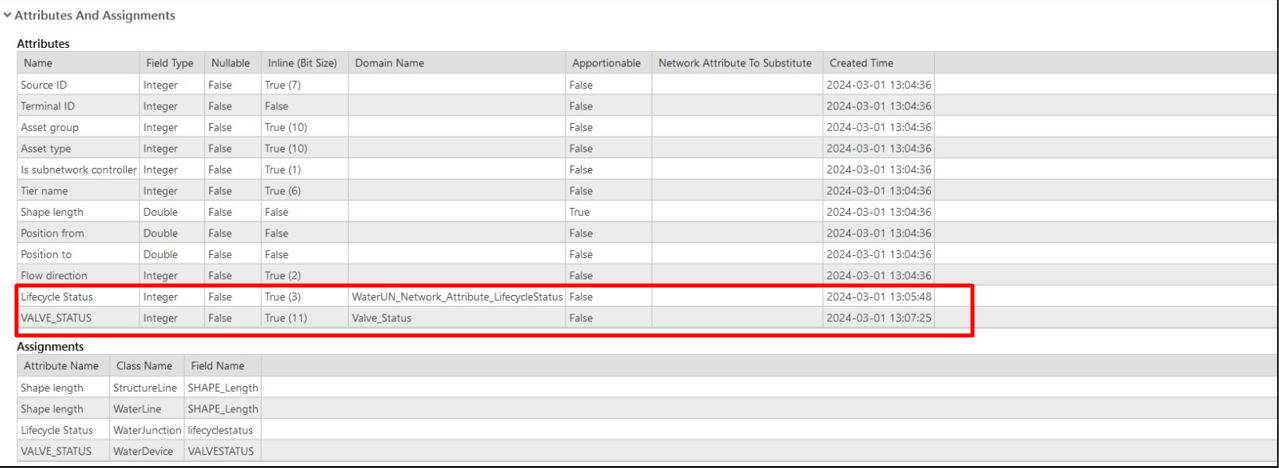

we already set the domain when create the network attribute

What should we do..

thank you..

MikeMillerGIS · Accepted Answer

Sadly, it does not use the domain of the inline network attribute.  It uses the domain assigned at the field of the first class that NA is assigned to.

RobertKrisher · Accepted Answer

@NadiaAlami Make sure that your device class has the correct domain assigned to it at the object class level (for this UI), and that each subtype/asset group that corresponds to an operable device has this domain assigned at the subtype level (for the attribute editor).

NadiaAlami · Accepted Answer

Hi MikeMillerGIS, thank you so much, i understand and manage to solve it.
