reference multiple values in an Indicator

clt_cabq

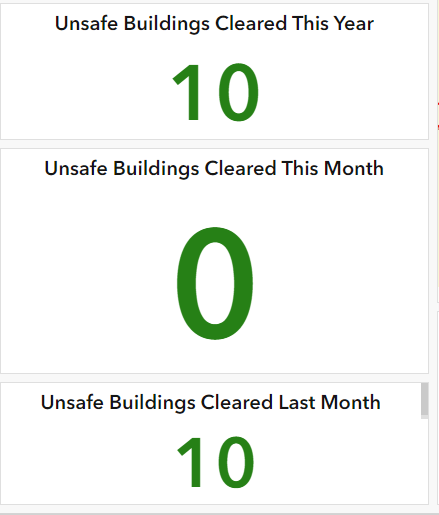

I'd like to be able to display the number of 'unsafe' buildings our inspection team 'clears' in terms of the number of buildings cleared cumulatively in the current year, the current month, and last month. I can do this using 3 separate indicators, as in the screen shot below, but would like to see if there is a way to do this in a single widget.

Find more posts tagged with

ArcGIS Online

Accepted answers

kenbuja

You can't put line breaks into an indicator, so you could do something like this:

But honestly, that isn't the most intuitive presentation of data. A better one might be a Details element, which you could configure like this

All comments

clt_cabq

Ok, that makes sense, I didn't see any other way to insert multiple values as you did.

kenbuja

Yes, this is using a Data Expression. It would look something like this

var p = Portal("https://arcgis.com");
var poles = FeatureSetByPortalItem(p, yourItemID, 0);

//your code to set variables thisYearValue, thisMonthValue, and lastMonthValue

var jsonDictionarySTART = {
  fields: [{
    alias: "This Year",
    name: "THISYEAR",
    type: "esriFieldTypeInteger",
  },
  {
    alias: "This Month",
    name: "THISMONTH",
    type: "esriFieldTypeInteger",
  },
  {
    alias: "Last Month",
    name: "LASTMONTH",
    type: "esriFieldTypeInteger",
  },
  ],
  spatialReference: { wkid: 4326 },
  geometryType: "esriGeometryPoint",
  features: [{
     attributes: {
      THISYEAR: thisYearValue,
      THISMONTH: thisMonthValue,
      LASTMONTH: lastMonthValue
    },
  }]
};

return FeatureSet(Text(jsonDictionarySTART));

clt_cabq

@KenR , thanks - Are you using a data expression to add those additional values into either the indicator or the detail widget?

kenbuja

You can't put line breaks into an indicator, so you could do something like this:

But honestly, that isn't the most intuitive presentation of data. A better one might be a Details element, which you could configure like this
