Iterating tables and keeping their respective names

EmmaMartin

I have 12 CSV files, each containing data for the respective month of the year. They are all named respectively, i.e. January_2020, February_2020, March_2020 etc and are stored in a folder named 2020_monthly.

For the smooth running of the workflow, I first convert the CSVs into geodatabase tables. Naturally, I need these tables to retain the same names as their respective CSVs.

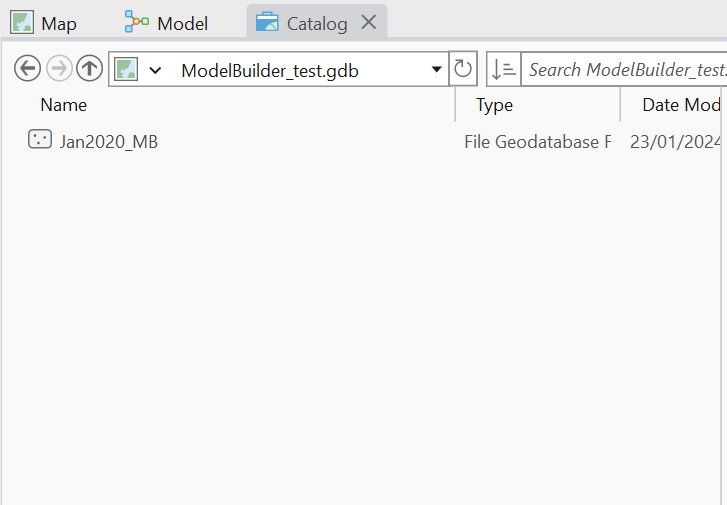

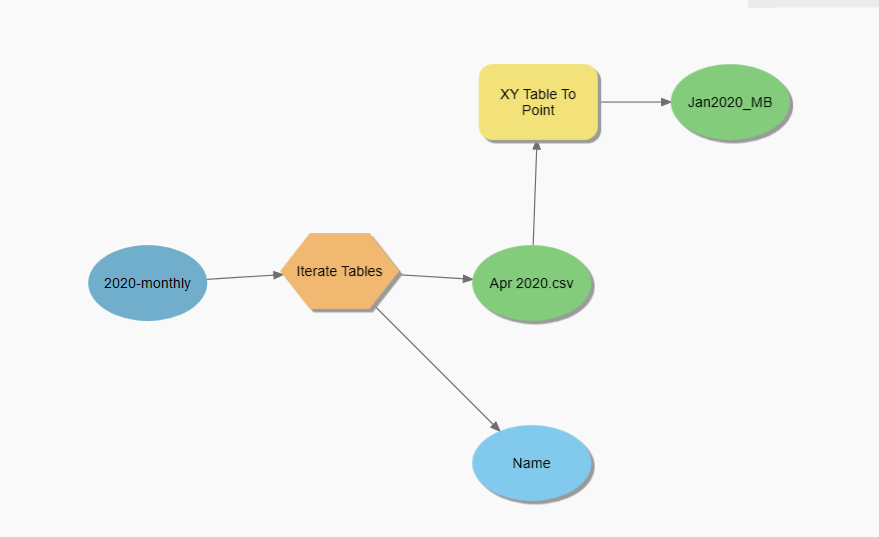

I then need to display all of these tables as points, converting them into feature classes in the geodatabase on the way. For the sake of organization and smooth workflow, I need the new feature classes to also keep the original Month_Year name. This is where I get stuck, as my ModelBuilder just produces one table/feature class and that’s it. What am I doing wrong?





curtvprice

Two notes about inline variable substitution to generate output names:

If you need to get more fancy, for example, change special characters, add a filename extension, or specify a full path to put the output in a specific location, the way to do this is using Python string expressions in the Calculate Value tool. If it really gets complicated you can write a python function in that tool.

If you do this in a loop, it's good practice to use precondition, connecting the Calculate Value tool to the tool that writes output using the calculated path -- to ensure the pathnames get calculated before you use them within the process chain.

Example Calculate Value Python expression, with a fix in case the Name has an embedded space, and a .dbf extension for writing in dbase format to a folder.

r"%Out Folder%\%Name%.dbf".replace(" ","_")
