Apply Asset Package domain error electric utility network

Todd_Kesselring

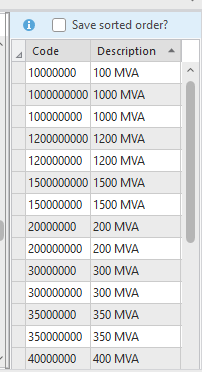

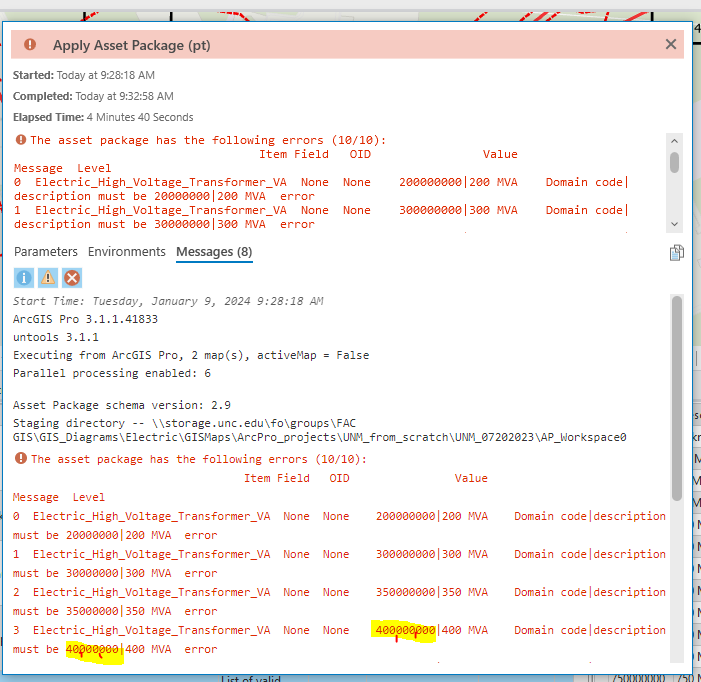

I encountered an error while attempting to use the apply asset package tool. The issue was, apparently, that an extra digit needs to be removed in the domain codes for Electric_High_Voltage_Transformer_VA. This comes from the Electric Utility Network Foundation. There are actually repeat Description values with different coded values. It looks like I will need to edit this domain in the foundation. Are there any more issues like this in the Electric Utility Network Foundation?

Find more posts tagged with

Accepted answers

Todd_Kesselring

Hi John,

I went ahead and deleted the offending extra entries in the domain Electric_High_Voltage_Transformer_VA and ran the Apply Asset Package tool again. This time it completed successfully after 5 hrs 25mins.

Thanks,

Todd

All comments

TariqIslam07

Hi John,

Was there a resolution for this issue? I tried applying an asset package from a client to our enterprise utility network and get the same repeating domain description error. My ArcGIS Pro is 3.1.7.41833, untools is 3.1.2, UN 6 and ArcGIS Enterprise is 11.0

Thanks,

Tariq

JohnAlsup

Hi Danielle

I think this is a different scenario that may be related to renaming things. Can you email directly at jalsup@esri.com. Can you include the workflow you used?

DanielleSpain3

ElectricUtilityNetworkFoundationV2_2_20240131.zip

Todd_Kesselring

Hi John,

Thanks,

Todd

JohnAlsup

if the zip file is small, you can email it to me at jalsup@esri.com. If it's large I can setup a sharepoint folder for it.

Todd_Kesselring

It does have data. I am using Arcpro 3.1.1. I am working in a file GDB. I could provide the asset package to you but this domain comes from the electric foundation and that is what caused the error. I don't even have any high voltage transformers in my data.

JohnAlsup

Hi Todd.

If this is an execution of apply asset package with no data, then we will need to know what version of Pro and Enterprise you are using. Also, can you provide this asset package to me?

Todd_Kesselring

I don't think that answer is responsive. The domain network, which came from the electric utility network foundation, caused an error when the apply asset package tool was run. This was because of repeat description values with different codes in the domain Electric_High_Voltage_Transformer_VA.

JohnAlsup

in order for these values to be included in summaries of trace or update subnetwork, then need to be integers and they need to be in a common unit, like VA.
