Altered polygon geometries in a feature service

Question

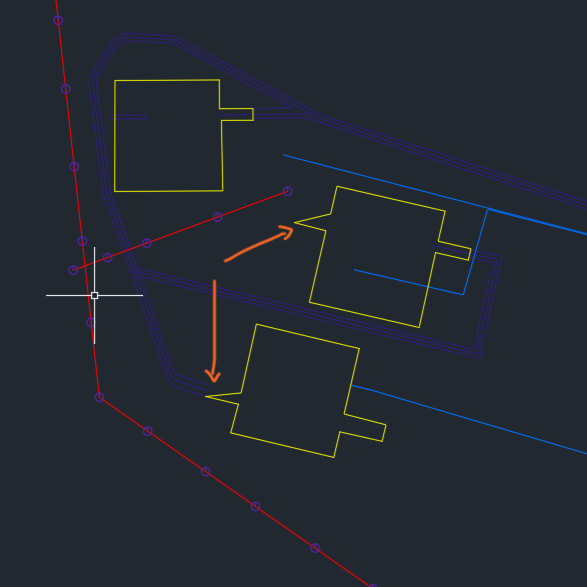

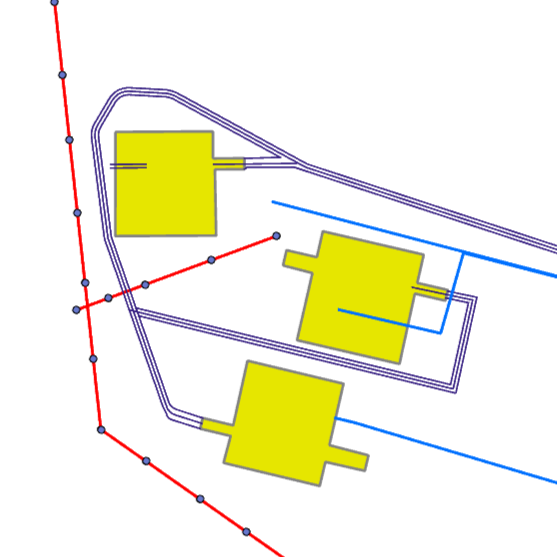

I am using the AGIS for AutoCAD for the first time. I published a feature service from Pro. Then I added this feature service in AutoCAD 2024. Some Polygon features have missing vertices and therefore the shape is completely changed. The same polygons appear fine if I open the FS from AGOL or Pro. Can anyone guess what is happening here?

Sincerely

Y_Chau · Answer

@DanWade I logged a case with Esri. Thanks

Update: It is a bug reported few weeks back.

Update: Bug is fixed in ArcGIS for AutoCAD 430

DanWade · Answer

Hello @Y_Chau,

I do not recall ever seeing this behavior before. Would you be able to submit an Esri Technical Support case so an Analyst can look at this with you? We also might need to test the actual data so a support case would be best here.

Please submit the case to the Enterprise-Extensions (EXT) team.

Kind regards,

Dan

Y_Chau · Answer

Hi @MichaelVolz but why then it happens with few polygons and not with all of them?

Sincerely
