Dashboard - Arcade calculation from 2 Layers

JackG

Hi, I am trying to create a simple calculation which works in the Arcade Expression, but says its unable to execute within a Dashboard Element (Indicator).

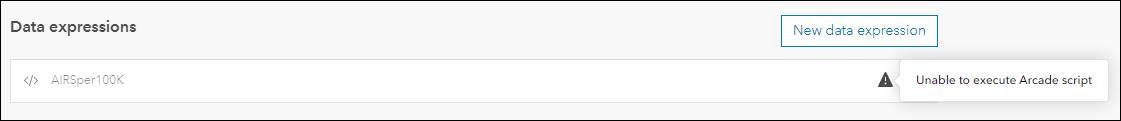

In Dashboards, I add Element > Indicator > select the 'New Data Expression' enter the code and its valid, but when i click 'Done' i get 'Unable to execute Arcade script'



















Code:

//***Visitors***//

var OfficeVisitors = FeatureSetByPortalItem (Portal('portalURL'),  'layerID',  0,   ['*'],   false);

var Visitors = Sum(OfficeVisitors, 'visit_cnt');

//***Incident***//

var Incidents = FeatureSetByPortalItem (Portal('portalURL'), 'layerID', 0,  ['*'], false);

var Total_Incidents = Count(Incidents);

//***Incidents 100K Visitors***//

var IncidentsPer100K = (Incidents/Visitors)*100000

return IncidentsPer100K



Thank You,

Jack

jcarlson

Data Expressions have to return a FeatureSet. If you really just want that single number, you can try this:

//***Visitors***//

var OfficeVisitors = FeatureSetByPortalItem (Portal('portalURL'),  'layerID',  0,   ['*'],   false);

var Visitors = Sum(OfficeVisitors, 'visit_cnt');

//***Incident***//

var Incidents = FeatureSetByPortalItem (Portal('portalURL'), 'layerID', 0,  ['*'], false);

var Total_Incidents = Count(Incidents);

//***Incidents 100K Visitors***//

var IncidentsPer100K = (Incidents/Visitors)*100000

var out_dict = {
  fields: [
    {name: 'incidentsPer100K', type: 'esriFieldTypeDouble'}
  ],
  geometryType: '',
  features: [
    { attributes: { incidentsPer100K: IncidentsPer100K }}
  ]
}

return FeatureSet(out_dict)



But really, I think you could do this with a reference value as well.
