Mapview not displaying in Qt 6.2.4 during stackview navigation

Question

Hi, I am able to load a map using "Display a map" tutorial. Now as per my requirement, I want to load this map in QT StackView. However, when I navigate from my mainMenu to mapScreen using stackview, then map is not loading at all. Here is my code for your review pls. Main.cpp int main(){ qDebug() << "Initializing application"; #if defined(Q_OS_LINUX) && !defined(Q_OS_ANDROID) // Linux requires 3.2 OpenGL Context // in order to instance 3D symbols QSurfaceFormat fmt = QSurfaceFormat::defaultFormat(); fmt.setVersion(3, 2); QSurfaceFormat::setDefaultFormat(fmt); #endif #if defined(Q_OS_IOS) Q_IMPORT_PLUGIN(ArcGISRuntimePlugin); #endif QApplication app(argc, argv); //QGuiApplication const QString apiKey = QString("MY_PRIVATE_KEY"); if (apiKey.isEmpty()) { qWarning() << "Use of Esri location services, including basemaps, requires" << "you to authenticate with an ArcGIS identity or set the API Key property."; } else { QCoreApplication::instance()->setProperty("Esri.ArcGISRuntime.apiKey", apiKey); } // Intialize application window QQmlApplicationEngine appEngine; appEngine.addImportPath(QDir(QCoreApplication::applicationDirPath()).filePath("qml")); #ifdef ARCGIS_RUNTIME_IMPORT_PATH_2 appEngine.addImportPath(ARCGIS_RUNTIME_IMPORT_PATH_2); #endif mainViewModel=new MainViewModel(&appEngine); appEngine.load(QUrl("qrc:/Menu/MainMenu.qml")); auto topLevelObject = appEngine.rootObjects().value(0); auto window = qobject_cast(topLevelObject); if (!window) { qCritical("Error: Your root item has to be a Window."); return -1; } window->show(); return app.exec(); } MainMenu.qml import QtQuick import QtQuick.Controls import QtQuick.Layouts ApplicationWindow { id: appWindow visible: true width: 1920 height: 1080 StackView { id: stack initialItem: view anchors.fill: parent } Item { id: view anchors.fill: parent RowLayout { width: appWindow.width height: appWindow.height spacing: 2 id:buttonsGrid Button { buttonText: "OPEN MAP" imagePath: "qrc:///Resources/Icons/settings.png" Layout.bottomMargin: 60 Layout.leftMargin: 20 function fun() { stack.push(Qt.resolvedUrl("../qml/map.qml")) } } } } } Map.qml import QtQuick import QtQuick.Controls import QtQuick.Layouts import Esri.ArcGISRuntime Item { id: appWindow width:1920 height: 1080 visible: true MapView { visible: true id: myMap anchors.fill: parent width:800 height:600 Map { initBasemapStyle: Enums.BasemapStyleArcGISStreets } } } Application Console: Thank you

TasawarAhmad · Answer

Interestingly, If I place map in the same file as stack view then I m able to successfully navigate without any issues.

//Somewhere in the code
stack.replace(myarcgisMap)

//Placed map and stackview in the same file
StackView {
      id: stack
      initialItem: view
      anchors.fill: parent
      implicitHeight: 1080
      implicitWidth: 1920

}
Item {
        id: myarcgisMap
       MapView {
            anchors.fill: parent
            // set focus to enable keyboard navigation
            focus: true

// add a map to the mapview
            Map {

// add the ArcGISTopographic basemap to the map
                initBasemapStyle: Enums.BasemapStyleArcGISTopographic

initialViewpoint: viewpoint

}

ViewpointCenter {
                id: viewpoint

}
       }
    }
}

TasawarAhmad · Answer

1 thing to add, the application crashes if I keep pressing any mouse button anywhere in the mapview location after navigation.

TasawarAhmad · Answer

Hi Jared, Thank you for your reply.

I have updated my .qml code.

If I draw any rectangle in mymap.qml, then it does appear however arcgis map is not loaded.

MainMenu.qml

import QtQuick
import QtQuick.Controls
import QtQuick.Layouts

ApplicationWindow
{
    id: appWindow
    visible: true
    width:  1920
    height: 1080
    StackView {
        id: stack
        initialItem: view
        anchors.fill: parent
    }

Item {
        id: view
        Image {
               id: backgroundWallpaper
               anchors.fill: parent
               source: "qrc:///Resources/Wallpapers/wallpaper2.jpg"
        }
        ScrollView
        {
            id: tilesScrollView
            anchors.fill: parent
            RowLayout
            {
                width: appWindow.width
                height: appWindow.height
                spacing: 2
                id:buttonsGrid
                Button
                {
                    Layout.bottomMargin: 60
                    Layout.leftMargin: 20
                    width:500
                    height: 100
                    onClicked:
                        stack.push(Qt.resolvedUrl("../qml/main.qml"))
                }
             }
          }
      }
}

main.qml

import QtQuick
import QtQuick.Controls
import QtQuick.Layouts
import QtMultimedia
import Esri.ArcGISRuntime
//import com.myself 1.0
Item {

width:1920
   height: 1080
   visible: true

Item{
       id: view
    MapView
    {
        visible: true
        id: myMap
        anchors.fill: parent
        width:800
        height:600
        // add a map to the mapview
        Map
        {
            // add the ArcGISStreets basemap to the map
            initBasemapStyle: Enums.BasemapStyleArcGISStreets
        }
    }
}
   Rectangle{
       color:  "black"
       width:260
       height: 260
       border.width: 2
       border.color: "yellow"

}
}

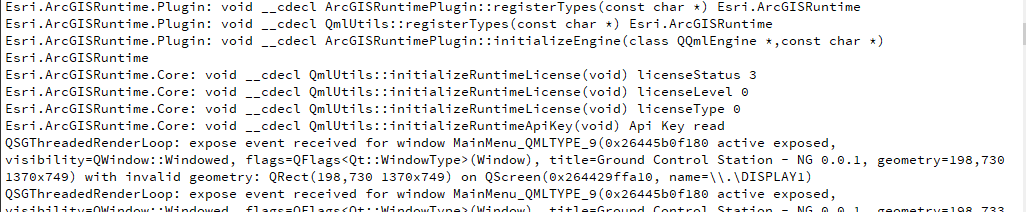

Application Console Output:

QSGThreadedRenderLoop: expose event received for window MainMenu_QMLTYPE_12(0x1706013a730 active exposed, visibility=QWindow::Windowed, flags=QFlags<Qt::WindowType>(Window), title=Ground Control Station - NG 0.0.1, geometry=482,728 1370x749) with invalid geometry: QRect(482,728 1370x749) on QScreen(0x1705ceda4e0, name=\.\DISPLAY1)

Also interestingly, if I just load "main.qml" then map opens just fine. This issue only occurs when I navigate to "main.qml".
Thank you
