P_QUAPOS doesn't always appear in Attributes Panel

Question

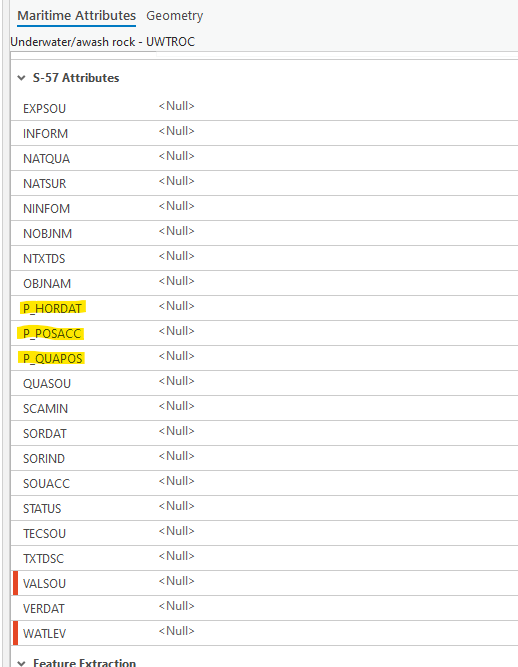

Perhaps I'm overlooking something here, but it seems the primitive attributes (HORDAT,POSACC, and QUAPOS) are not displaying for all features/subtypes. This is ArcPro v2.9. For example when a new DangerP UWTROC is placed these attributes are available.

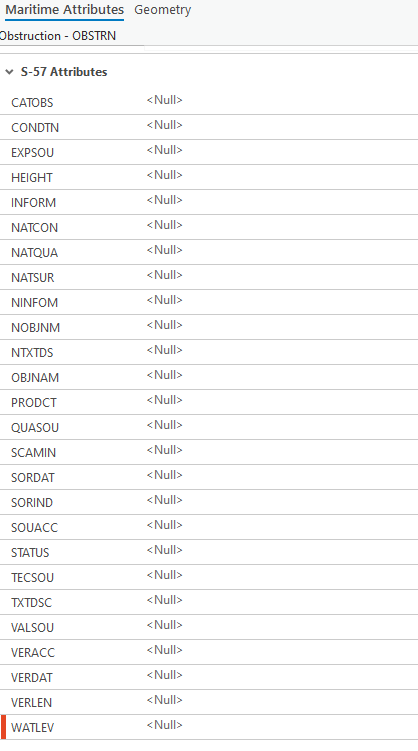

However, when adding a DangerP - OBSTRN these attributes do not appear. The Attribute table must be used to populate on those features.

CraigTGreene · Answer

There is ArcMap help that should help you for now, since the feature classes are the same, and the workflow is the same.

https://desktop.arcgis.com/en/arcmap/latest/extensions/maritime-charting-guide/edit-s57/working-with-spatial-attributes.htm

PSheatsley · Answer

Hello @Carto_Broc ,

Issues with the schema are fixed in version 3.1.

QUAPOS attribute is used for point features. For lines and polygons, you create a feature in the PLTS_SpatialAttributesL feature class. You digitize the feature as a shared edge along the segment of line or polygon that you want to apply QUAPOS, and then populate the attribute in the PTLS_SpatialAttributesL feature.

Documentation for this workflow is planned for 3.2 release.
