Summer-Winter Switching Position Trace Analysis

JohnGoat

Hi all UN specialist,

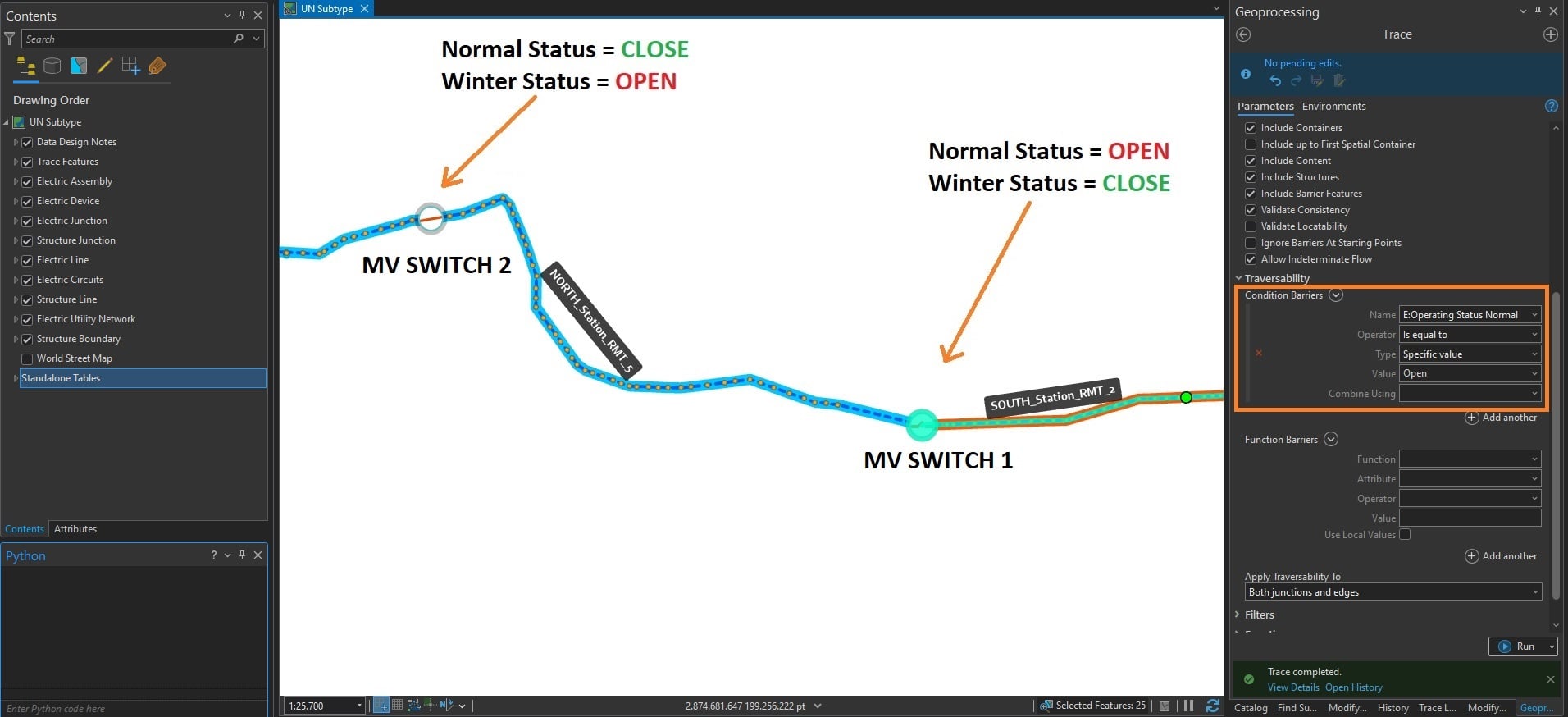

I have two different subnetworks Controller located at the intersection of Medium Voltage Switch. I set Switch Normal Status = Open. I configured E:Operating Status Normal=Open as Traversability Condition Barrier. Everything works great as you can see in the second screenshot.

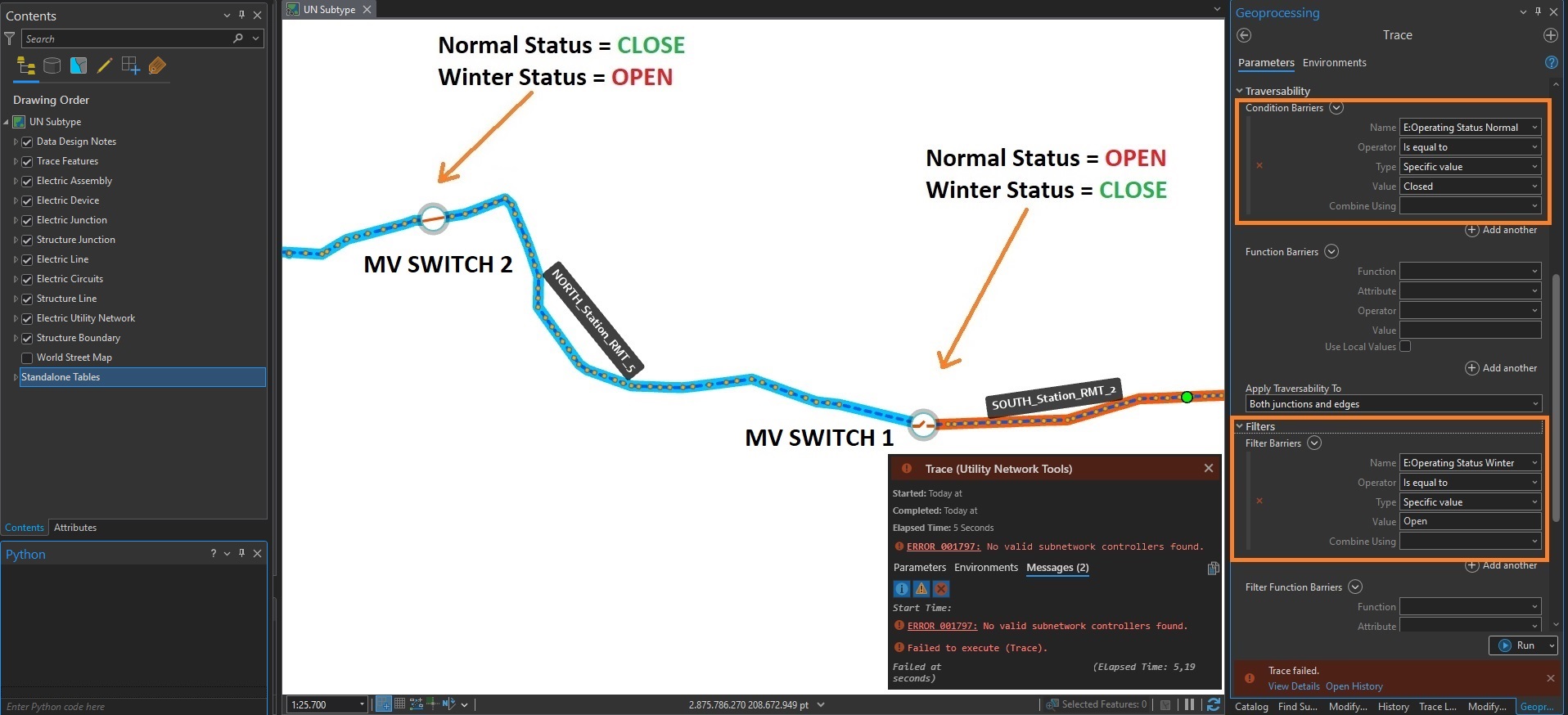

With the parameters in the third screenshot, I expect the tracking analysis to continue up to the Switch number two.
But I am getting this error.
ERROR 001797: No valid subnetwork controllers found.
I know that SOUTH_Station_RMT_2 feeder is fed up to MV SWITCH2 during winter.
I want to determine that the energy supply end points of a feeder change in summer and winter, and accordingly, the grid management according to the analysis results. Is there any other way around this or where am I going wrong.

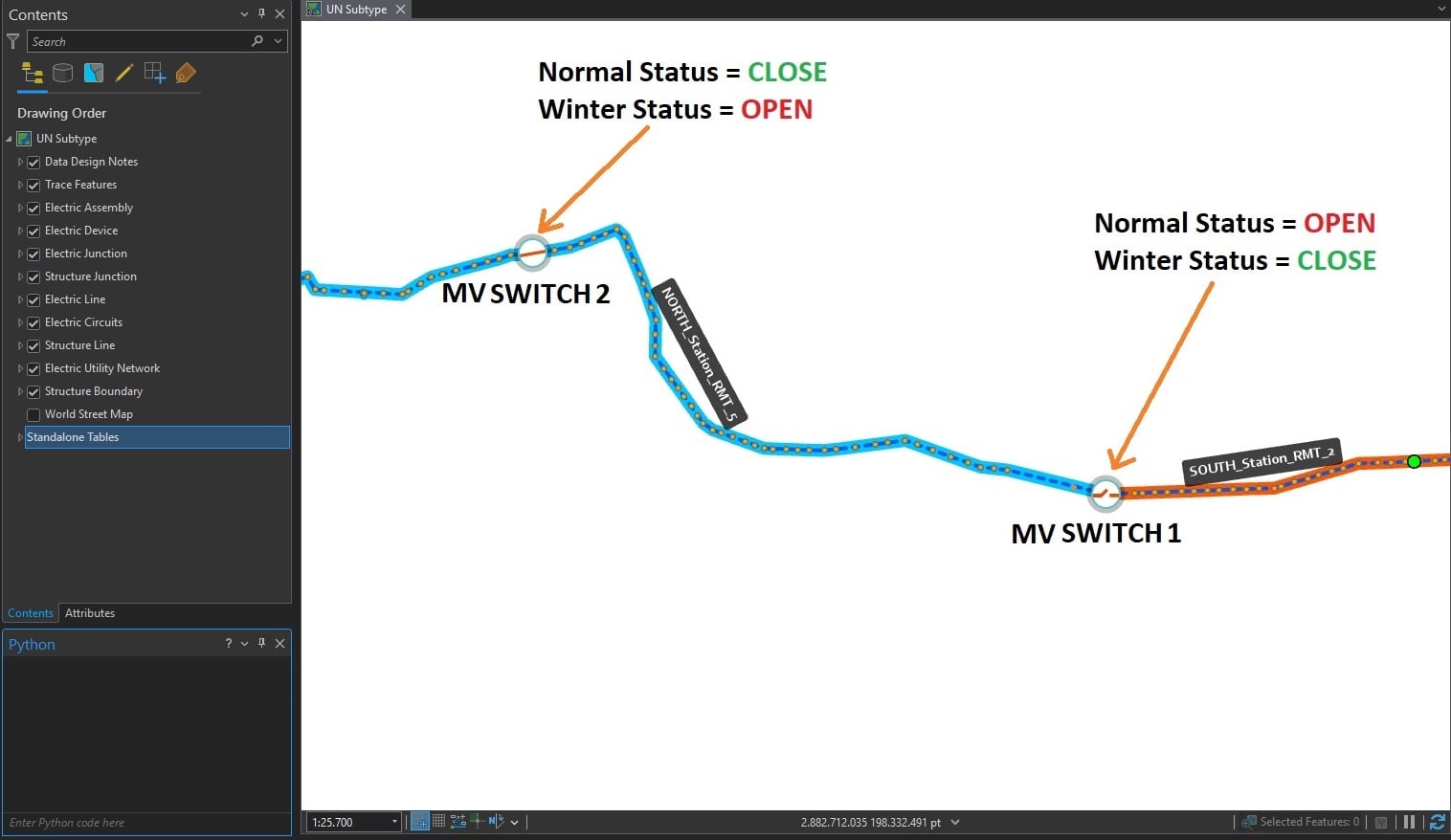

Bold Blue Line = NORTH_Station_RMT_5
Bold Orange Line = SOUTH_Station_RMT_2

I Have ArcGIS Pro 3.1, UN6 version

 

MikeMillerGIS

Some info first:

The Condition Barrier is called a first pass trace.  This trace is used to determine connectivity to the controller.

The Filter Barrier is called a second pass trace.  This is preformed on the results of the first pass trace.

What type of trace are you doing?  What does a find connected present you?  My guess is that another switch is affecting this?  You also need to replace the condition barrier with the winter status, not add a function barrier.
